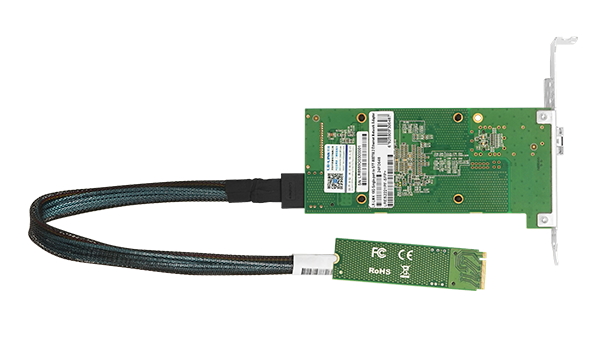

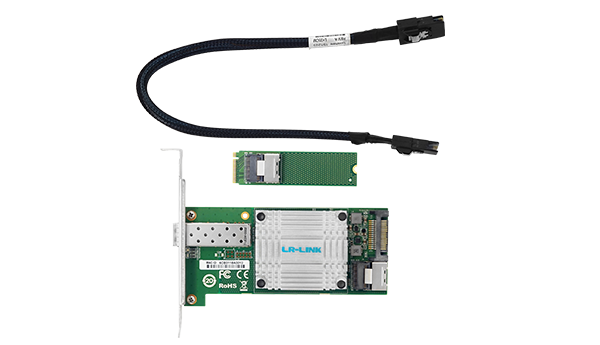

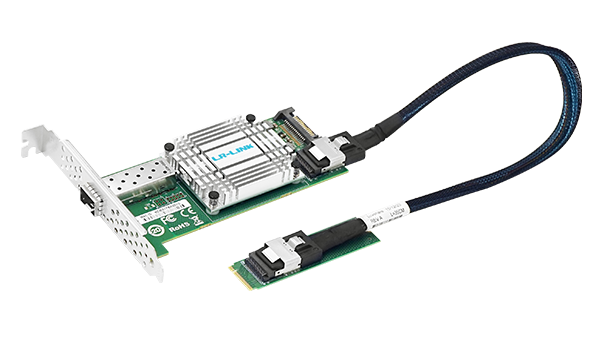

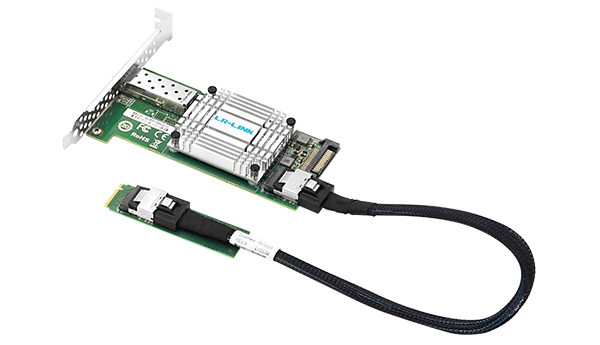

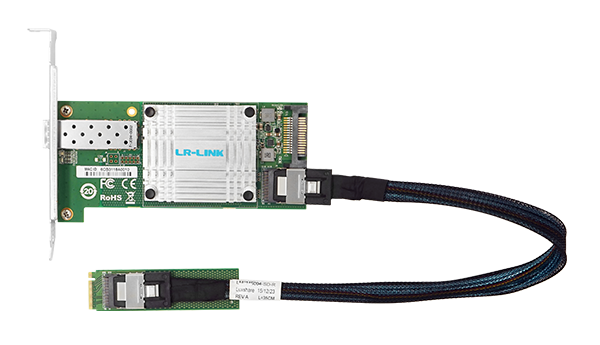

LRES2221PF-SFP+

10G Single-port to SFF-8087/M.2 Ethernet Network Adapter (Intel 82599 Based)
Key Features
- Support PCIe Gen 2.0x4;
- Equipped with 1 10G SFP+ interface, supporting data transmission rates of 1Gbps and 10Gbps;
- Supports jumbo data frames up to 15.5KB;
-Support PXE and UEFI functions.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2221PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Intel 82599 main control solution. It is designed to meet the needs of modern network connections, providing reliable, high-speed network connections and enhancing compatibility of network devices. By converting the M.2 interface into a single-port 10G optical fiber Ethernet, it does not occupy the motherboard PCIe slot, providing users with great flexibility and expansion space. The adapter supports PXE and UEFI functions, allowing users to remotely install operating systems and centrally manage and maintain equipment, greatly improving the efficiency of IT management; while the UEFI function provides a faster and safer startup experience and improves system performance. At the same time, the adapter also supports SR-IOV, providing virtual machines with I/O performance close to physical performance to meet the high-performance requirements of virtualized environments. In addition, LRES2221PF-SFP+ supports jumbo frame transmission, up to 15.5KB, further improving data transmission efficiency. To sum up, LRES2221PF-SFP+ is a network adapter with excellent performance and comprehensive functions that can meet the needs of various complex network environments. It is an ideal choice for enterprise data centers, high-performance computing clusters and individual users.

Specifications

Model

LRES2221PF-SFP+

Controller

Intel 82599

Cable medium

Optical fiber

Fiber Type

OM2

5M10Gbps

Bracket Height

Full height & Low-Profile

Connector

1 * 10G SFP+

Bus Type

PCIe v2.0 (5.0GT/s) x4; M.2 interface

Data rate per port

1G/10Gbps

Power Supply

15PIN SATA power socket

ESD contact discharge

±8kV

Lightning surge

±4kV

Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.3x Full Duplex and flow control

IEEE 802.1AS

IEEE 802.1Q VLAN

IEEE 802.3AD

IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

WoL

No

iSCSI

Yes

IEEE 1588

No

UEFI

Yes

SR-IOV

Yes

Jumbo Frames

15.5KB

System Support

Windows 7 /8 /8.1 /10 /11

Windows Server 2008 /2012 /2016

Windows Server 2019 /2022

Deepin 15.11/ 20 /20.6 /20.9

VMware ESXi 6.5 /6.7 /7.0

Galaxy Unicorn V10 SP1 /V10

NeoKylin 7.6

RHEL/CentOS 7.3 /7.6 /7.9

RHEL/CentOS 8.2 /8.3

Ubuntu 16.04.3 /18.04.5

Ubuntu /20.04.1 /22.04.2

SUSE 12.5 /15.4

FreeBSD 12.2 /13.2

ZTE New Fulcrum 5.0.5 /3.2.2

Tongxin UOS 20

Asianux Server V7.0

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Emind OS

Openkylin 0.7.5

Mikrotik

iKuai router

Hi Spider Router



LED Indicators

1G

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link

10G

Connection Status

Green Link + Green Link

Transfer status

Green Link + Green Blink



Environment Features

Operating Temperature

0to 55(32to 131)

Storage Temperature

-40to 70(-40to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS

Physical properties

PCB size(unit:mm)

142.27*68.66*1.6

Package size (unit: mm)

222*147*28

SFF8087 connecting cable

(unit: mm)

350



Packing List

Bracket

Full height(installed) and Low-Profile

Internet Network Adapter

*1

Adapter board

*1

SFF8087 connecting cable

*1

M.2 screw

*1

Packaging

Carton + Blister box + PE bag + Static bag
