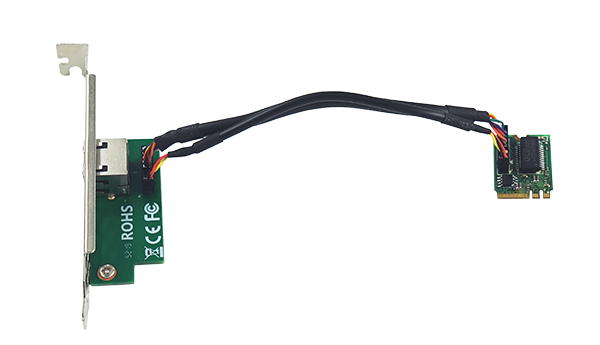

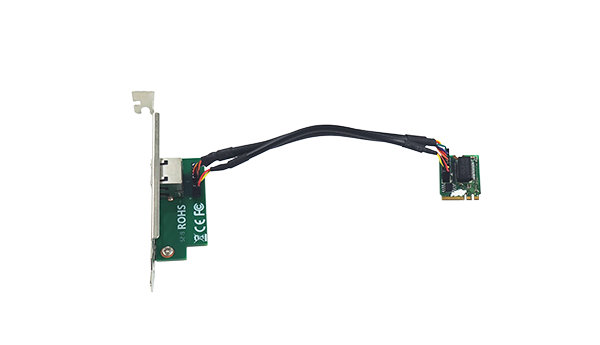

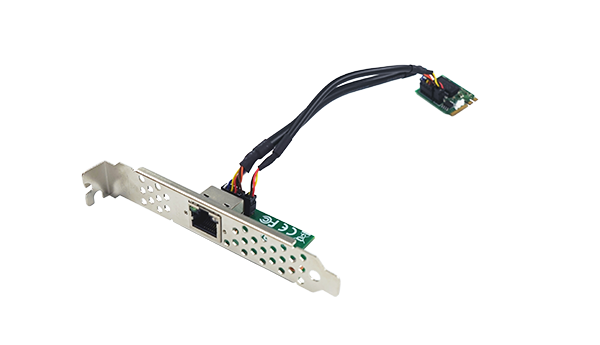

LRES2210PT

M.2 A+E Key Single-port 1G Copper Ethernet Network Adapter (Intel I210)
Key Features
·A single port gigabit copper ethernet network adapter with M.2 A+E Key interface;
·The Mini structure design with M.2 A+E Key interface can be adapted to various compatible M.2 interface slots;
·It is designed to be widely used in small PCs, industrial computers, single board computers, digital multimedia and other devices that contain M.2 interface slots;
·It has high performance, high stability, high quality and very good compatibility.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2210PT is a single-port copper Gigabit Ethernet network adapter with M.2 A+E Key interface developed by Linkreal Co., Ltd. based on the Intel I210 main control solution.

This adapter card adopts the Mini structure design of the M.2 A+E Key interface, which can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. The Ethernet adapter card can adaptively support 10/100/1000Mbps connection.

LRES2210PT adopts Intel I210 main control chip, with high performance, high stability, high quality and very good compatibility.

This Ethernet adapter adopts 10/100/1000Mbps adaptive network interface design, users can use the existing network wiring in a variety of applications. At the same time, it can be used in a complex and compact environment and has excellent safety and stability.
M.2 B+M Key Single-port 1G Copper Ethernet Network Adapter (Intel I210): LRES2211PT

                             Specifications

Controller

Intel I210

Baffle Height

Full-height & half-height configurations

Power Consumption

1.0W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

UOS V20 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

M.2 A+E Key

Data rate supported per port

10/100/1000MbE

Connector

1*RJ45

                              Technical Features

Protocol Support

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No

                            Environment Features

Operating Temperature

0 to +55 (-40 to +131 )

Storage Temperature

-55 to +105 (-67 to +221 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35




P/N

Description

LRES2210PT

M.2 A+E Key Single-port 1G Copper Ethernet Network Adapter (Intel Chip Based)


PS: Above details are only for reference, if there is any change,no prior notice.
