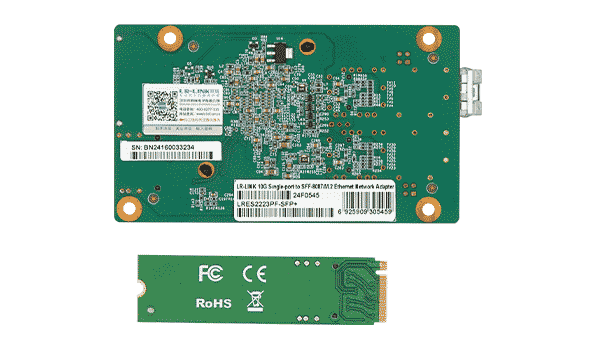

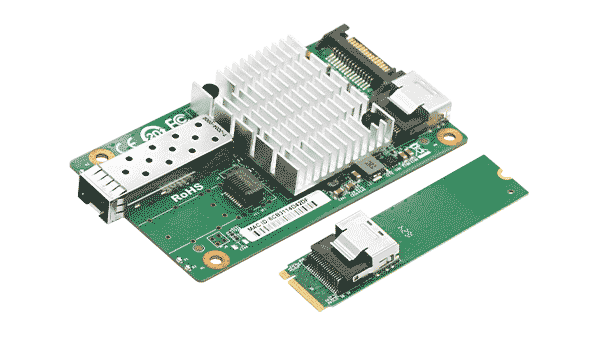

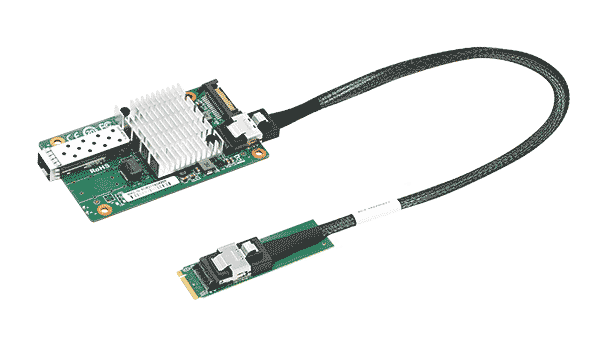

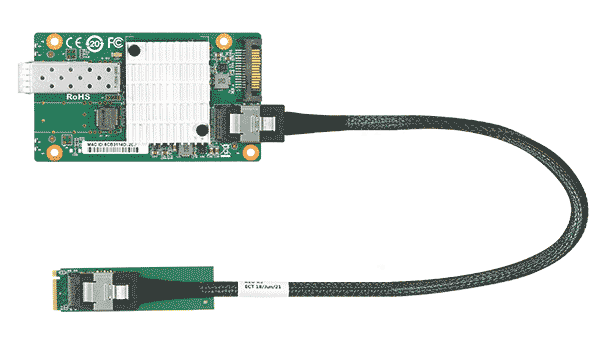

LRES2130PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Mellanox X3 main control solution. It is designed to meet the needs of modern network connections, providing reliable, high-speed network connections and enhancing compatibility of network devices. By converting the M.2 interface into single-port 10G fiber optic Ethernet, this product enables the device to easily adapt to high-speed network environments without the need for cumbersome hardware upgrades or changes. Supports RDMA technology to achieve zero-copy data transmission, significantly improving network transmission efficiency. At the same time, it supports RoCE technology, which can achieve low-latency and high-throughput data transmission on Ethernet, greatly improving network performance. Whether in an enterprise data center or a personal computer, this adapter can provide a stable and efficient network connection to meet the various needs of users. All in all, the LRES2223PF-2SFP+ is a flexible and easy-to-use network adapter suitable for a variety of scenarios requiring high-speed, reliable network connections.
|
Model |
LRES2130PF-SFP+
|
|
|
Controller |
Mellanox X3 |
|
|
Cable medium |
Optical Fiber |
|
|
Fiber Type |
1000BASE-SX、1000BASE-LX |
|
|
10GBASE-R |
||
|
Bus Type |
PCIe v3.0 (8.0GT/s) x4; M.2 interface |
|
|
Data rate |
1Gbps;10Gbps |
|
|
Connector |
1*10G SFP+ |
|
|
Power supply |
15PIN SATA power socket |
|
|
Operating System Support |
* Windows 10/11 * Windows Server 2012/2016 * Windows Server 2019/2022 * Deepin 15.11/20/20.6/20.9 * VMware ESXi 6.5 /6.7 /7.0 * Galaxy Unicorn V10 * NeoKylin 7.6 * RHEL/CentOS 7.3/7.6/7.9/8.2 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1/22.04.2 |
* SUSE 12.5/15.4 * ZTE New Fulcrum 5.0.5/3.2.2 * Asianux Server V7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * Mikrotik * iKuai router |
|
PXE |
Yes |
|
|
WoL |
No |
|
|
UEFI |
No |
|
|
Jumbo Frames |
Yes |
|
|
SR-IOV |
No |
|
|
RDMA |
Yes |
|
|
Jumbo Frame(max) |
9.5KB |
|
|
Protocol Support |
IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.1Q VLAN IEEE 802.3AD IEEE 802.3AZ IEEE P802.1Qaz IEEE Std 802.1Qau IEEE P802.1Qbb |
|
|
1G/10Gbps |
LINK |
Green Link |
|
ACT |
Green Blink + Green Link |
|
Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
|
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
|
Certification |
FCC, CE, RoHS |
|
PCB size(unit:mm) |
63*110*1.6 |
|
Package size (unit: mm) |
222*147*28 |
|
Network card |
*1 |
|
adapter board |
*1 |
|
80cm SFF8087 connecting cable |
*1 |
|
Product warranty card |
*1 |
|
Packing |
Carton and Static bag |
