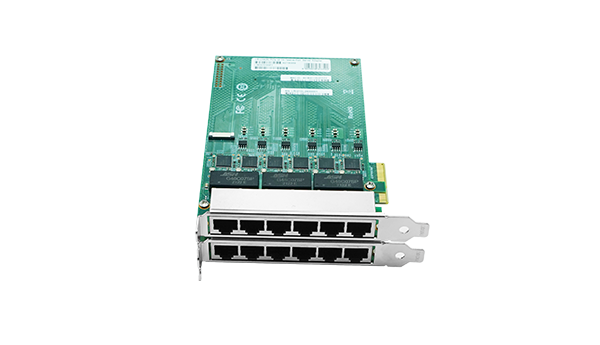

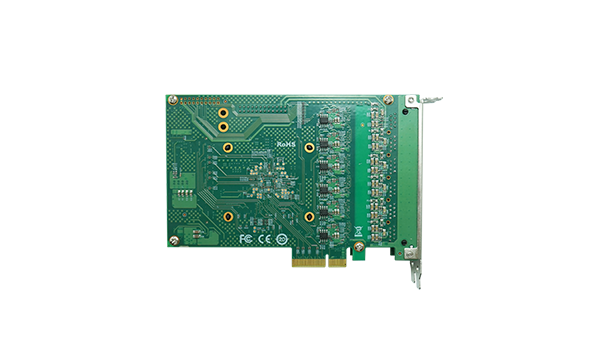

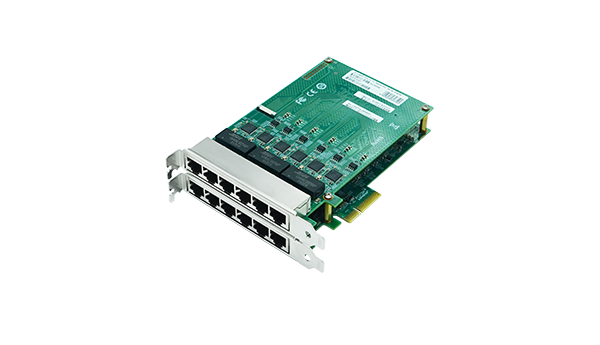

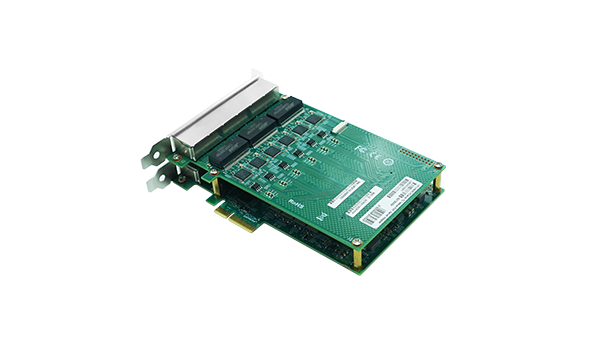

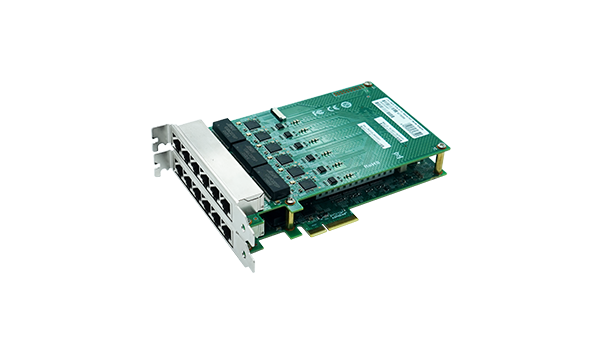

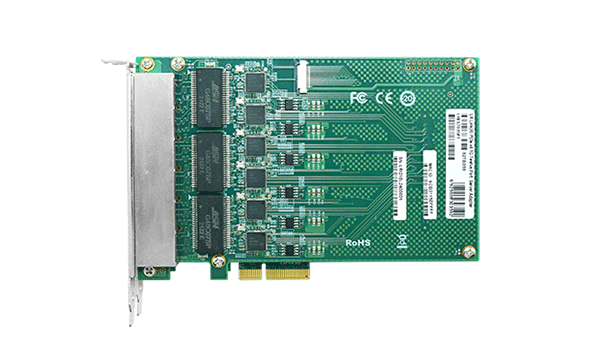

LRES2035PT

PCIe x4 Twelve-port Copper Gigabit Ethernet Network Adapter (Intel I210)
Key Features
1. A 12-port gigabit ethernet network adapter;
2. It is widely used in data transmission such as industrial manufacturing and machine processing;
3. And each network port has 4 sending queues and 4 receiving queues, error correction memory protection, etc.;
4. The bandwidth can be expanded through link aggregation and PCI Express channel resources can be saved.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2035PT is a 12-port gigabit ethernet network adapter with PCIe x4 bus interface developed by Linkreal Co., Ltd. based on the Intel master control solution. It is widely used in industrial manufacturing, machine processing and other data transmission. Especially used in harsh environments.

The card uses ethernet power management technologies such as energy-saving ethernet and DMA merger, and each network port has 4 sending queues and 4 receiving queues, error correction memory protection and other technologies to improve the reliability of data transmission. Combine parallel and pipeline logic architectures to effectively manage delayed data packets. The bandwidth can be expanded through link aggregation and PCI Express channel resources can be saved.

PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter: LRES2024PT





                                        Specifications



Controller

Intel Chip

Baffle Height

Full height

Power Consumption

14.0W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x4, compatible with x8, x16

Data rate supported per port

10/100/1000MbE

Connector

12*8-Pin RJ45



                                      Technical Features



Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No



                                      Environment Features

Operating Temperature

0 to 55 (32 to 131 )

Storage Temperature

-40 to 85 (-40 to 185 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35






P/N

Description

LRES2035PT

PCIe x4 Twelve-port Gigabit Ethernet Network Adapter (Intel Chip Based)



PS: Above details are only for reference, if there is any change,no prior notice.
