LRES2033PT-POE

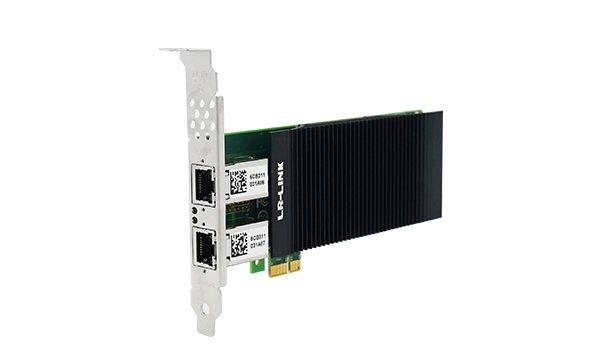

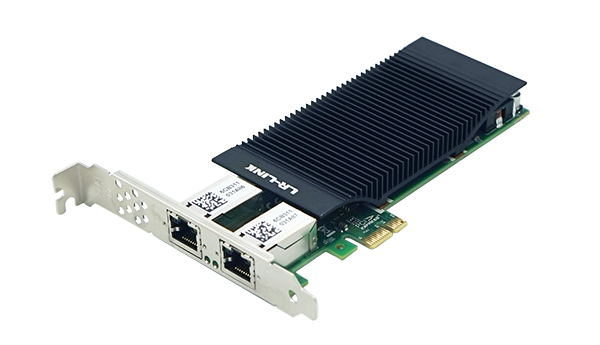

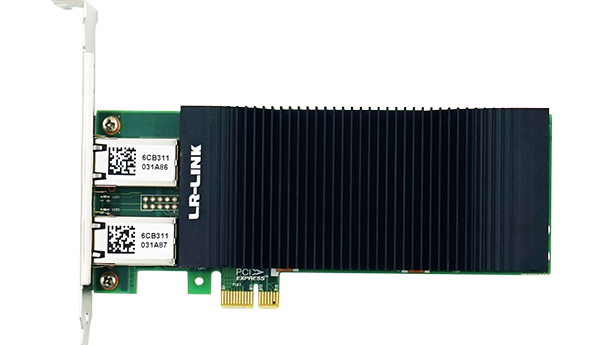

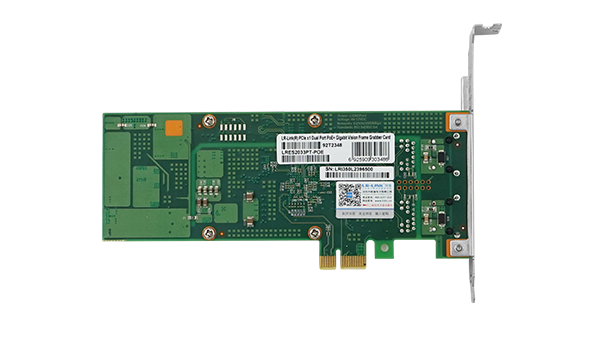

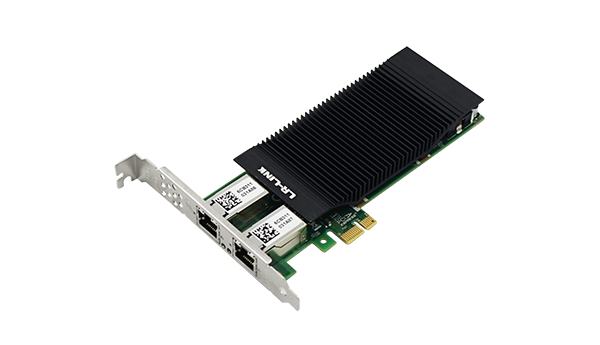

PCIe x1 Dual-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350)
Key Features
1. Single-port PoE output power consumption up to 30W.
2. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3;
3. The adapter card adopts a wider RJ45 pitch design;
4. The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solve the problem of unstable connection between network port and cable in industrial places. Compatible with common cable access at the same time;
5. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
6, Be carefully selected thickened gold RJ5 connector to ensure a more secure and reliable connectivity;
7. 2*8-pin RJ45 head design can save the motherboard's valuable PCIe slot resources.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2033PT-POE is a PCIe x1 PoE+ gigabit dual-port copper industrial ethernet network adapter based on the Intel chipset,be developed independently by Linkreal Co., Ltd. and is compatible with x4, x8, x16 lanes. The PoE adapter is designed mainly used on industrial field vision inspection server and equipment,vision field client, fast moving Ethernet data transmission equipment etc. It's also suitable for ordinary servers.

The Adapter controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications. The adapter is based on Intel dual gigabit ethernet MAC+PHY (media access controller and physical interface transceiver) dual port controller.

Jumbo Frame Transfer, No Frame Loss: PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT




                                    Specifications



Controller

Intel I350

Baffle Height

Full height

Power Consumption

3.0W

PoE power/port

30W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x1compatible with x4x8x16

Data rate supported per port

10/100/1000MbE

Connector

2*8-Pin RJ45



                                     Technical Features



Protocol Support

IEEE802.3at -2009 PoE standard

IEEE802.3af -2003 PoE standard

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No






P/N

Description

LRES2033PT-POE

PCIe x1 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350 Based)



                                                        PS: Above details are only for reference, if there is any change,no prior notice.
