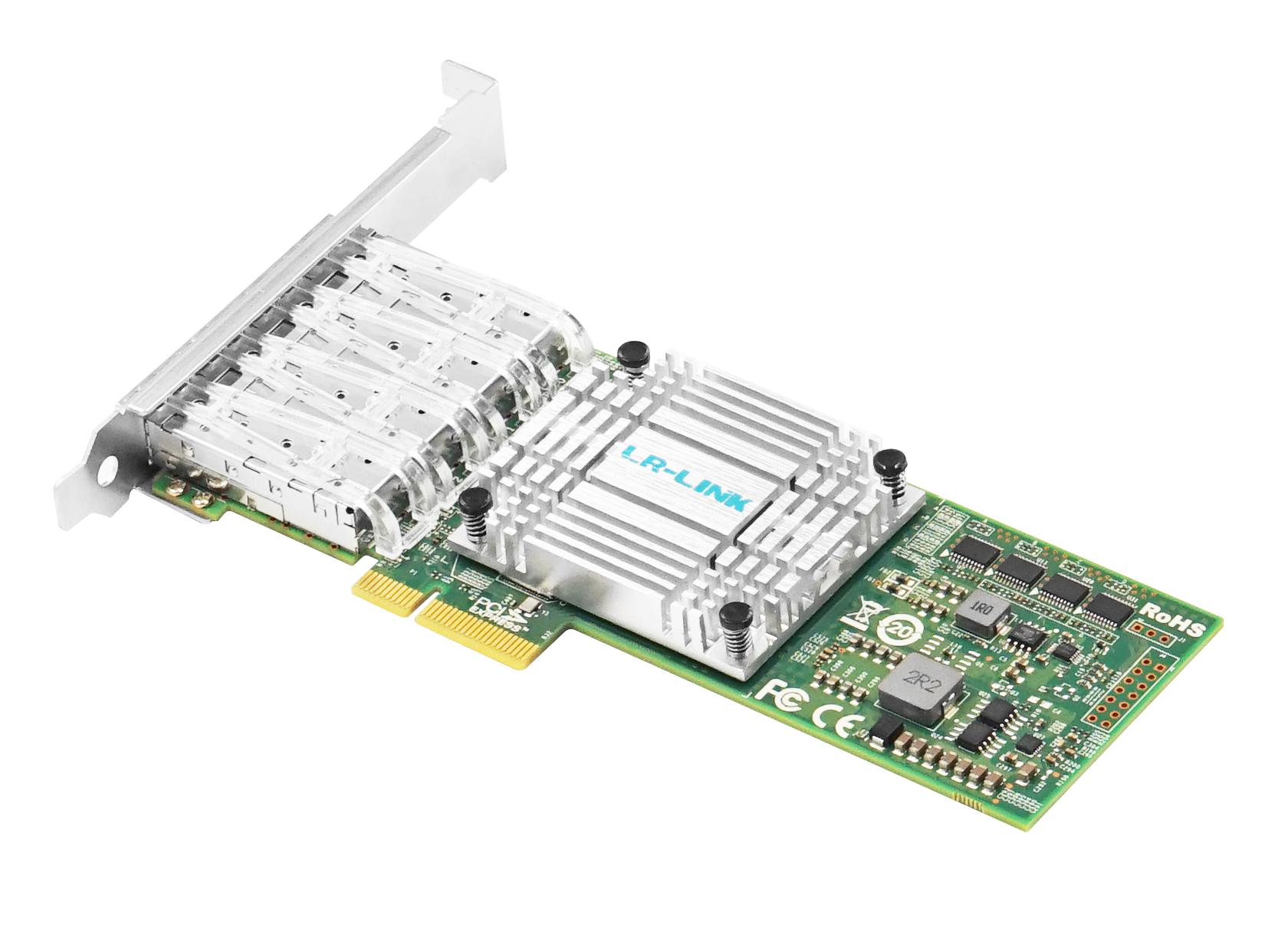

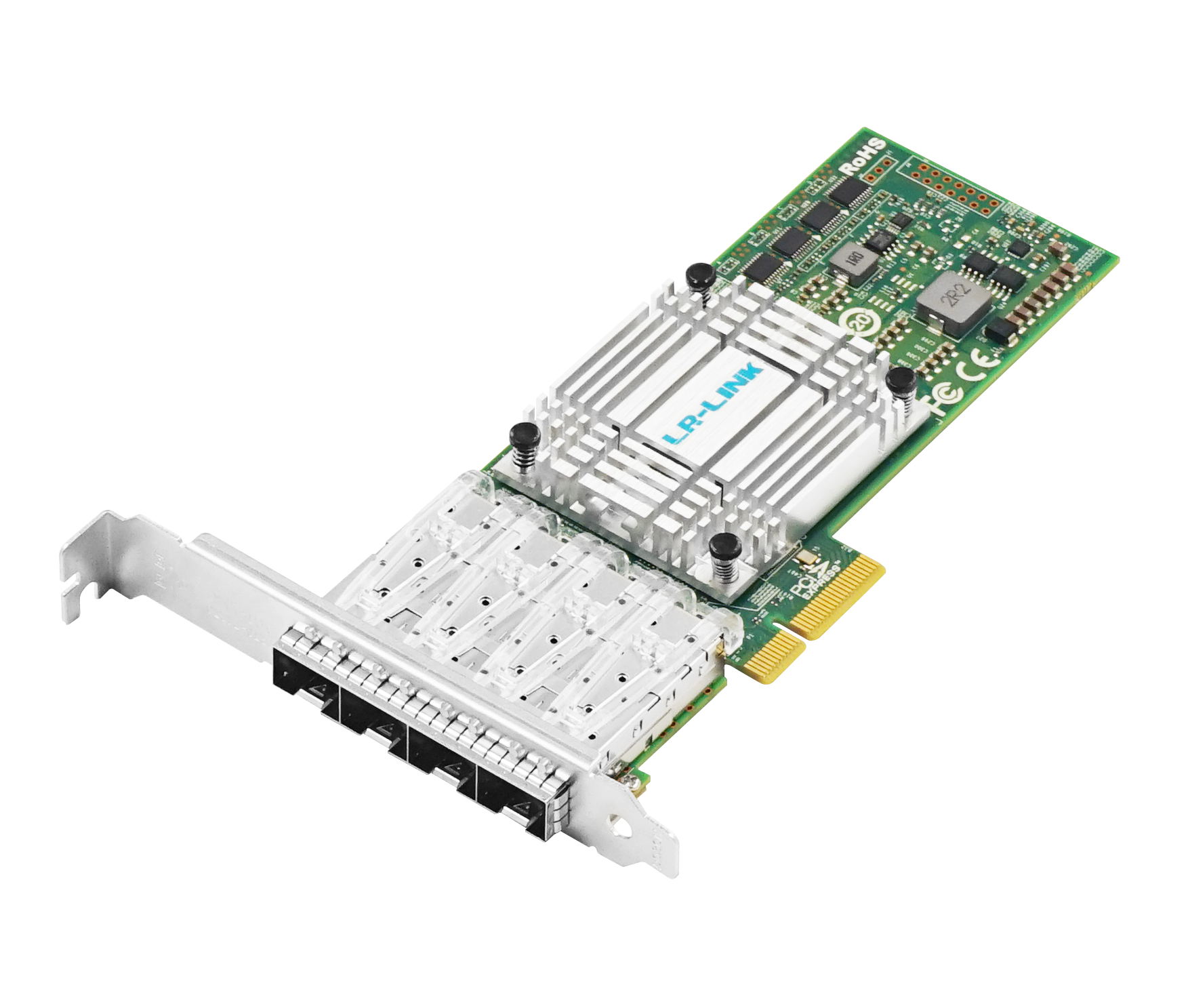

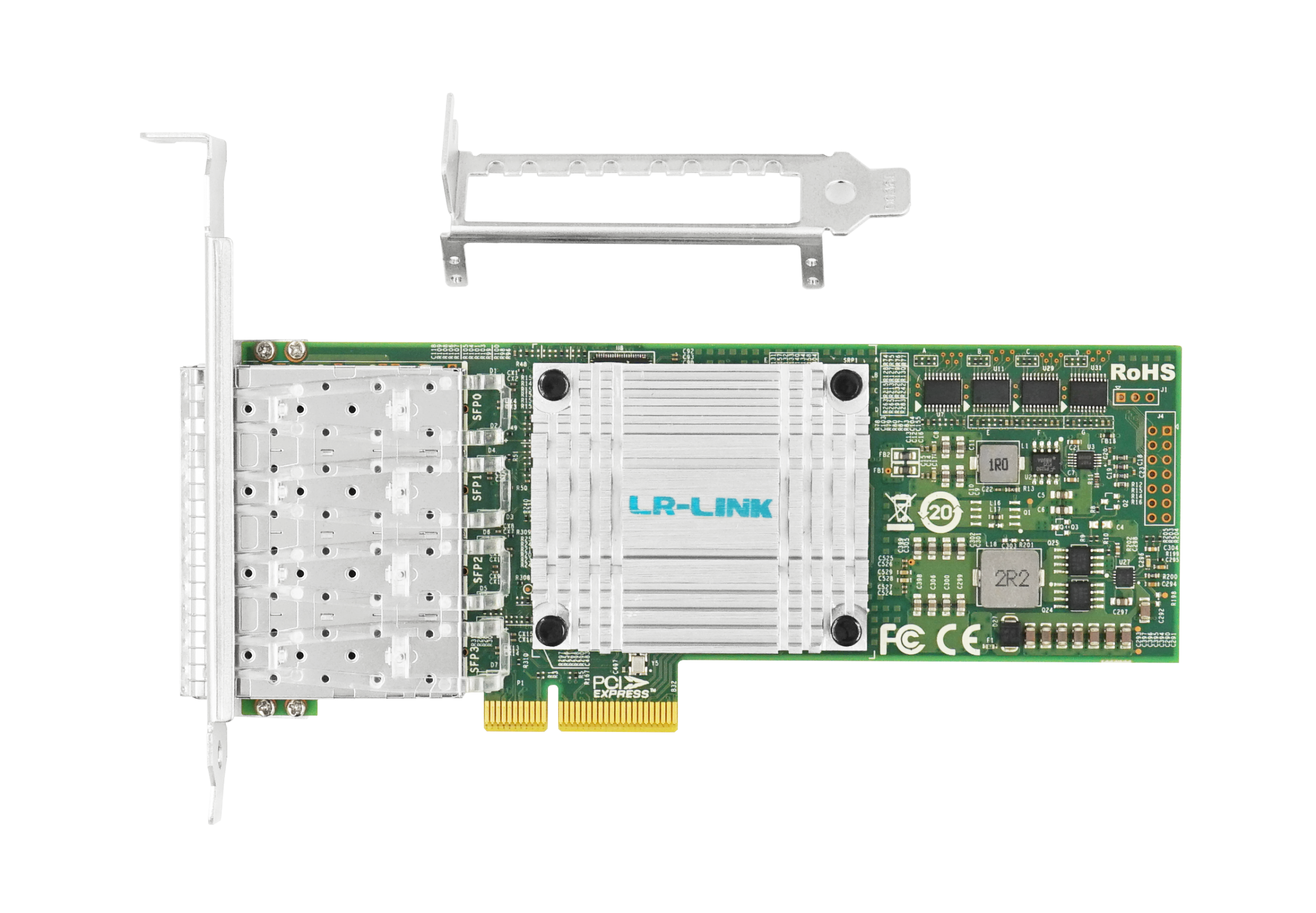

LRES2028PF-4SFP

PCIe x4 Quad-port 1G SFP Ethernet Network Adapter (Net-swift 1860)
Key Features
1.Net-swift WX1860A4 main controller;
2.PCIe v2.1 x4 quad-port fiber Gigabit Ethernet network adapter;
3.Widely used in fiber-to-desktop network communication, and can also be used on PC servers, embedded and other network devices;
4.In terms of data transmission, data network bandwidth, average transmission delay actual packet transmission rate and other indicators, it has reached the industry level.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2028PF-4SFP is a PCI Express v2.1 x4 quad-port Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Net-swift WX1860A4 main controller solution. It is also compatible with PCIe x8 , x16 as well as PCIe V1.1.

Shenzhen Lianrui Electronics Co., Ltd. launched the Ethernet fiber network card (LRES2028PF-4SFP) with independent intellectual property rights, with a fully integrated gigabit Ethernet media access control (MAC) module. It is widely used in optical fiber to desktop network communication, and can also be used in PC server, embedded network equipment and so on.

The master controller used in the optical fiber network card has Chinese independent intellectual property rights and independent control, which is of great significance for breaking the monopoly of some manufacturers and ensuring information security.

The controller used in LRES2028PF-4SFP is a master control product based on the Net-swift WX1860A4 main controller solution, with independent control. Including data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators reached the industry level.

Specifications



Controller

Net-swift WX1860A4

Baffle Height

Full height and half height

Power Consumption

5.0W

System Support

Windows 7/8/8.1/10/11

Windows Server 2008 R2/2012 R2/2016 R2/2019 /R2

Linux SLES 11/12

CentOS / RHEL 6.6 ~ 7.4

Ubuntu 14.04/16.04/16.10

PHYTIUM platform, Kylin

Sunway platformDeepin/ Neokylin

Loongson platformNeokylin /loongnix

iKuai 3.6.4

Linx-tech V6.0.80

Bus Type

PCIe v2.1 x4compatible with x8x16

Data rate

1000Mbps

Connector

4* SFP



Technical Features



Standards compliant

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

YES

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No




Order Information



P/N

Description

LRES2028PF-4SFP

PCIe x4 quad-port Gigabit SFP Ethernet Network Adapter (Net-swift WX1860 Based)



PS: Above details are only for reference, if there is any change,no prior notice.
