LRES2027PF-2SFP

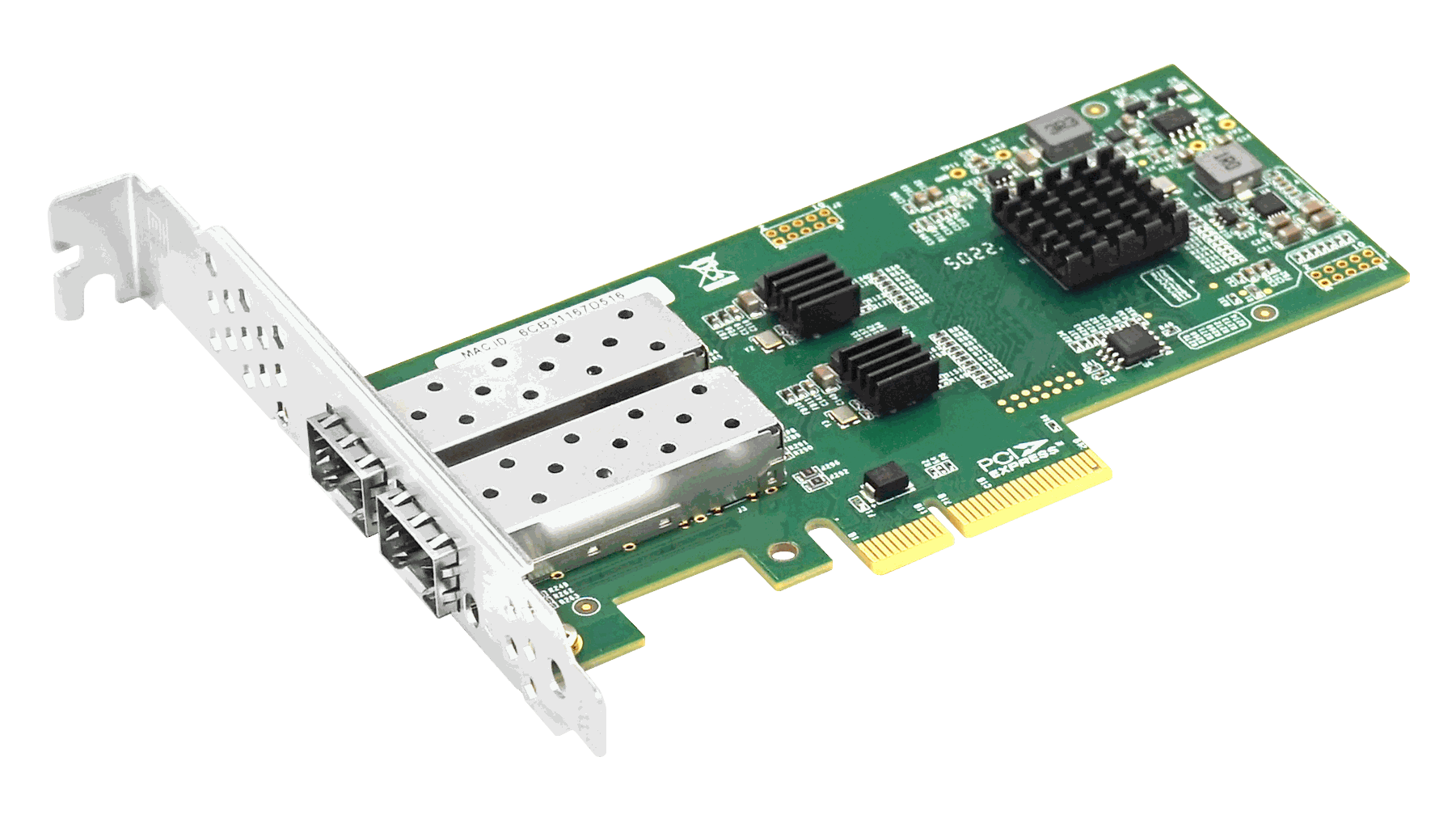

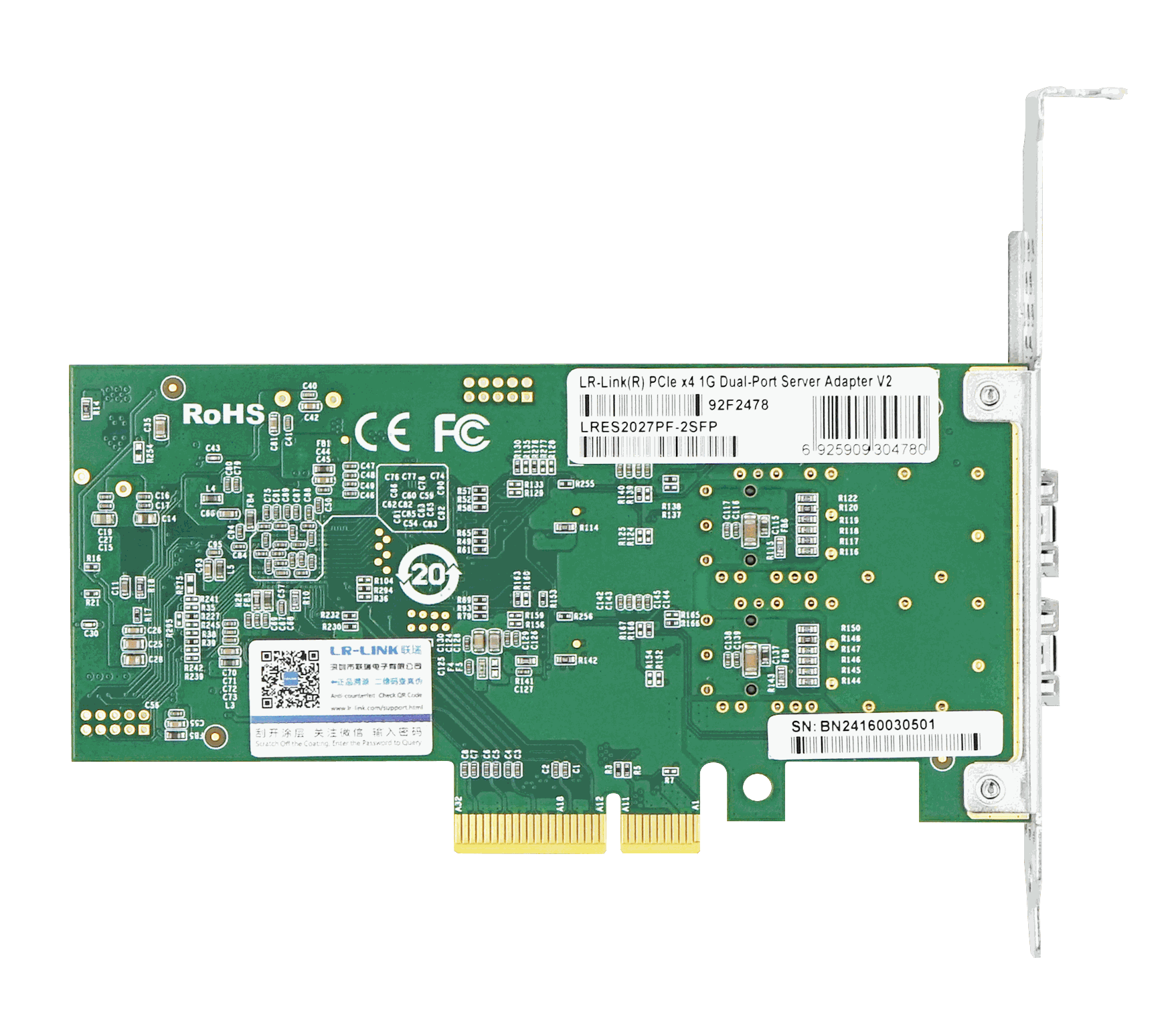

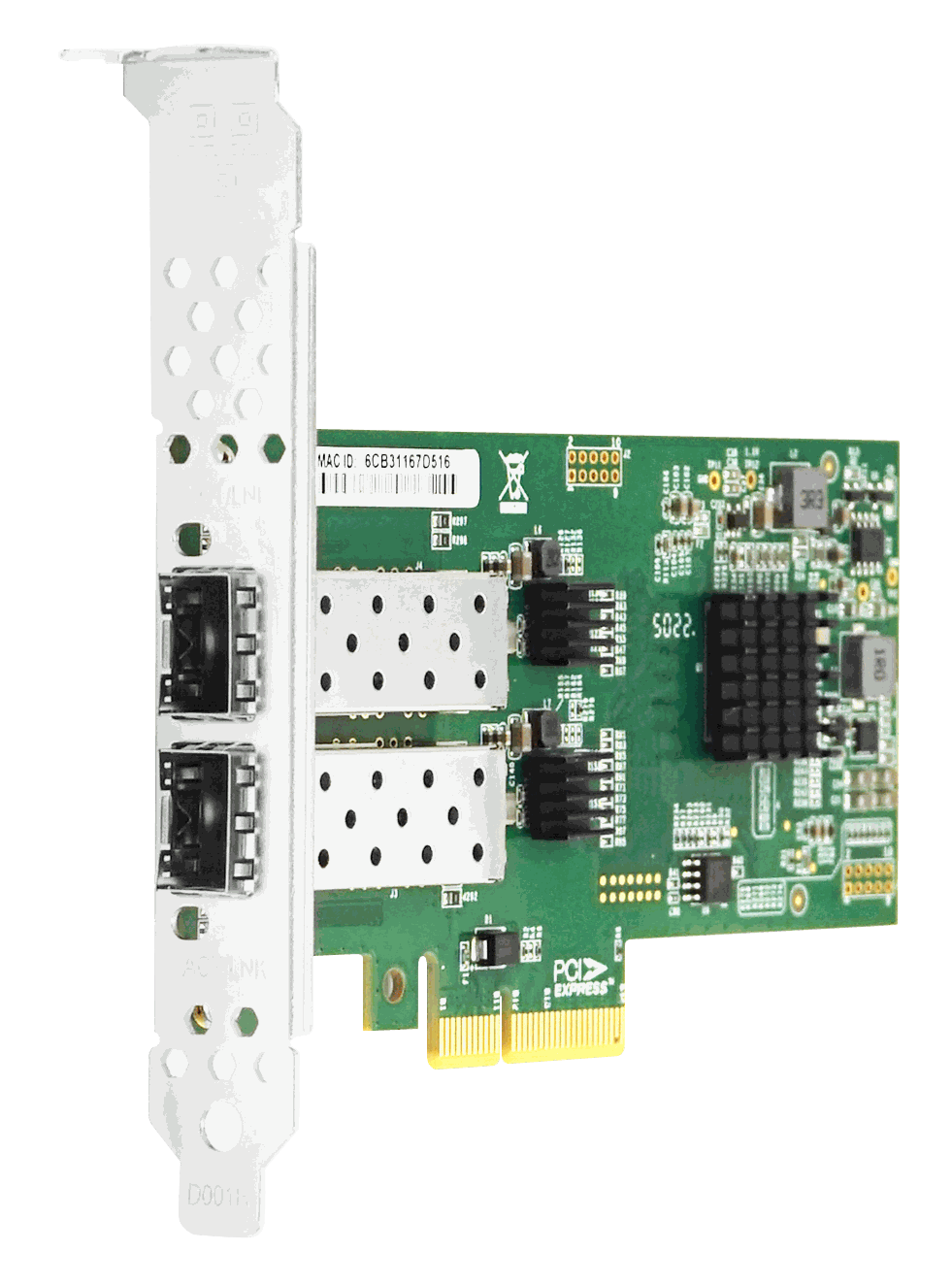

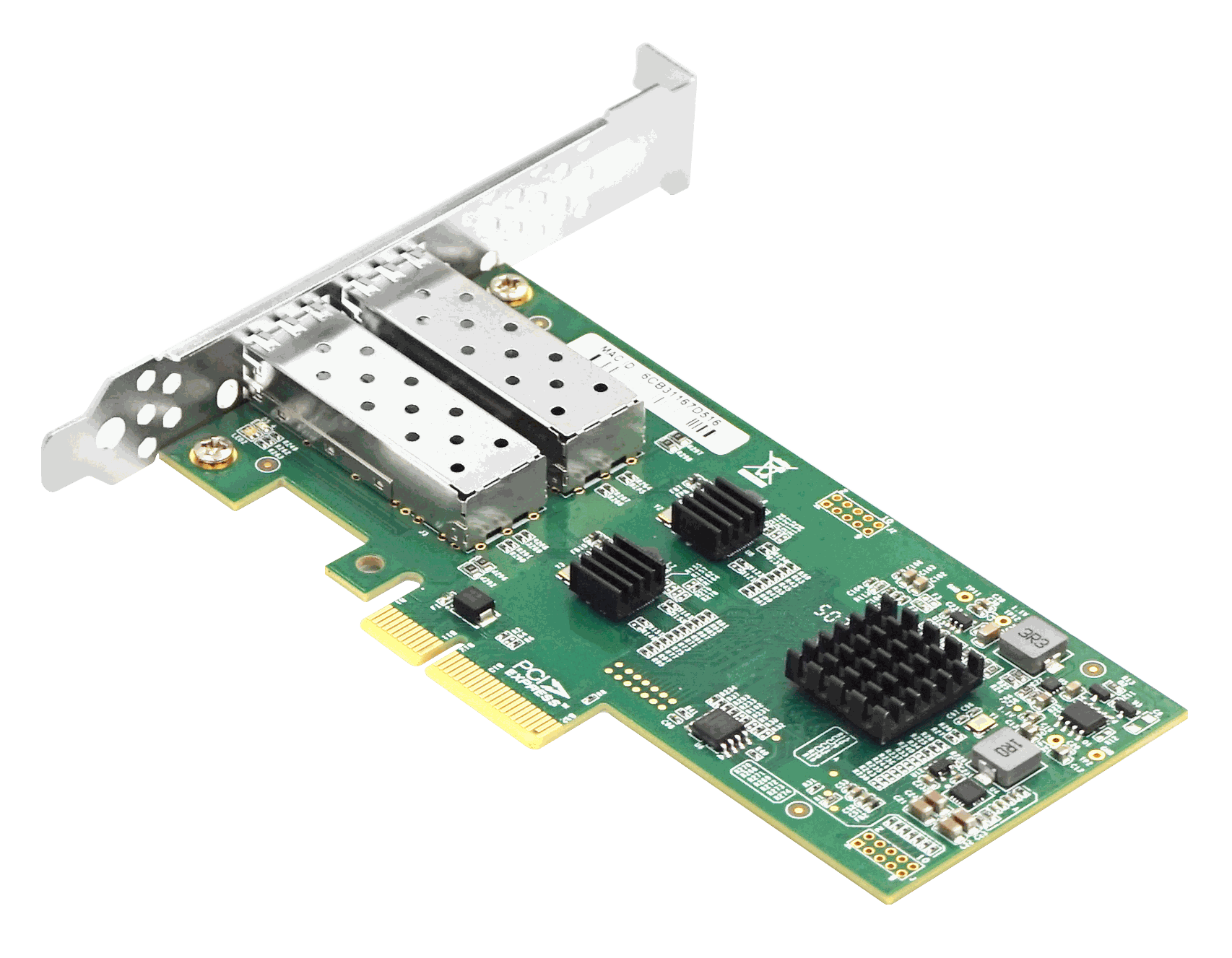

PCIe x4 1G Dual-Port Server Adapter (Net-swift WX1860 Based)
Key Features
- Equipped with 2 ports, each port rate up to 1Gb/s;
- Support for packets up to 9.5 KB (Jumbo Frames);
- Support SR-IOV function;
- PCI Express* v 2.0 with 5.0 Gt/s and Support for x4 links widths

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2027PF-2SFP is a PCIe x4 1G Dual-Port Server Adapter developed by Linkreal Co., Ltd. based on the Net-swift WX1860 main control solution, which is also compatible with PCIe x8 and x16 and backward compatible with PCIe v1.1.

Linkreal Co., Ltd. launched the LRES2027PF-2SFP with independent intellectual property rights, with a fully integrated Gigabit Ethernet media access control (MAC) module. It is widely used in fiber-to-the-desktop network communication, and can also be used in PC servers, embedded and other network equipment.

The main controller used by the optical fiber network card has China's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of some manufacturers and ensuring information security.

The Net-swift WX1860 controller used in the LRES2027PF-2SFP is a master control product independently developed and produced in China, which is independent and controllable. Indicators such as data transmission, data network bandwidth, average transmission delay, and actual packet transmission rate have reached the industry level.

Model

LRES2027PF-2SFP

Controller

Net-swift WX1860

Cable medium

Optical fiber

Fiber Type

1000Base-SX1000Base-LX1000Base-Cu

Bracket Height

Low Profile & Full Height

Min Power(w)

2.28W

Max Power(w)

2.496W

Connector

2*1G SFP

Bus Type

PCIe v2.0 (5GT/s) x4

Data rate per port

1Gbps

Power Supply

PCIe

ESD

Contact discharge

±8KV

Air discharge

±15KV

Protocol Support

IEEE 802.1Qbg  IEEE 802.1Qbb

IEEE 802.1Qaz  IEEE 802.1as  IEEE 802.1Qau

PXE

No

WoL

No

SR-IOV

Yes

Jumbo Frames

9.5KB

System Support

Windows7/8/8.1/10/11

Windows Server 2008 R2

Windows Server 2012 R2

Windows Server 2016 R2

Windows Server 2019 R2

RHEL/Centos 7.3/7.6/7.9/8.2/8.3

Deepin 20.6

Ubuntu 18.04.5/16.04.3

Ubuntu 20.04.3

SUSE 12.5/15

NewStartOS3.2.2/5.0.5

Asianux V 7.0

Galaxy Unicorn v10

NeoKylin7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

UOS 20

OpenKylin 0.7.5

1Gbps

LINK

Green Link+Green Link

ACT

Orange Blink+Green Link

Operating Temperature

0 to 55 (32 to 131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS

PCB size(unit:mm)

132.65*68.1*1.6

Package size (unit: mm)

222*147*28
