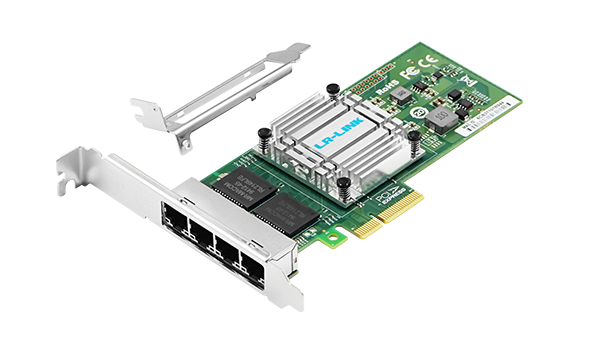

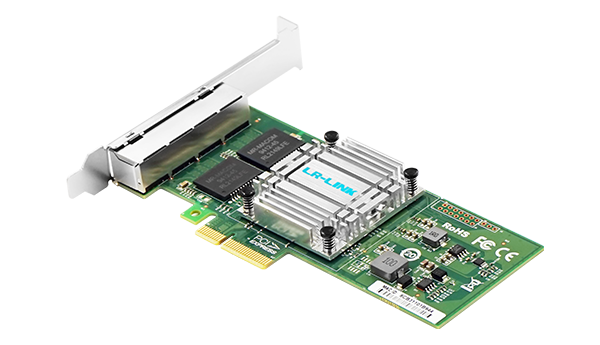

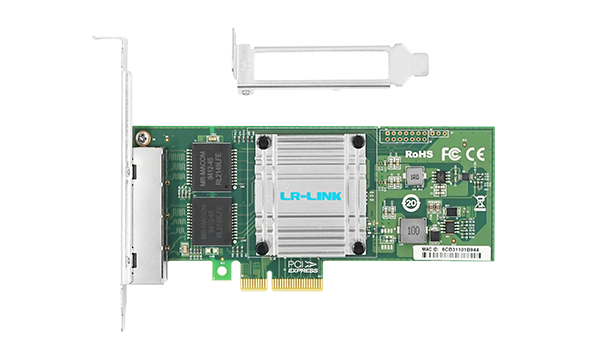

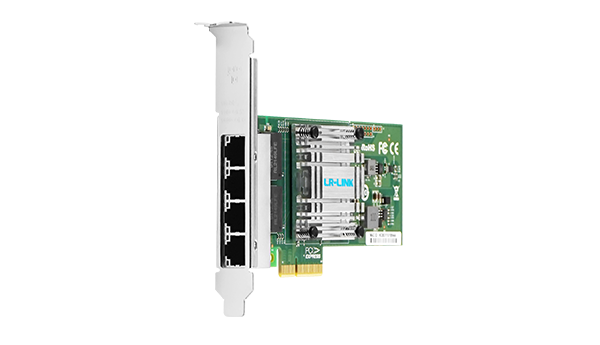

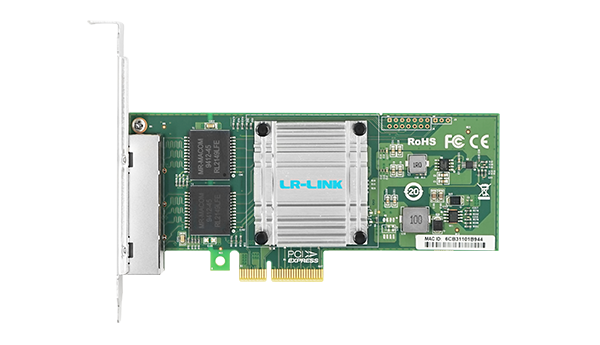

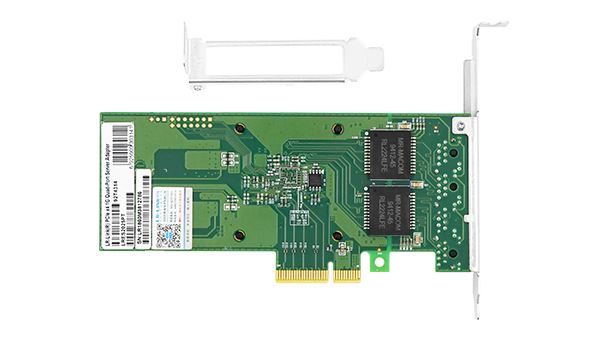

LRES2025PT is a PCI Express v2.0 x4 Quad-port Gigabit Ethernet network adapter developed by Linkreal Co., Ltd.based on the WX1860A4 master control solution. This adapter is backward compatible with PCIe v1.0, supports network adaptation functions of 100Mbps, and 1000Mbps, can flexibly adapt to network environments with different speeds, and ensure stable connections under various network conditions.
The LRES2025PT network adapter provides four RJ45 interfaces, supports RSS, DPDK, SC-RV, TCP/UDP packet verification and hardware offload functions, adopts a domestic solution, breaks the foreign monopoly, ensures information security, and provides strong protection for the national information infrastructure, network systems of key industries, and information security of individual users. Based on its excellent product performance and security, it is an ideal network application solution for network security, industrial automation, and data centers.
PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter (Net-swift WX1860A2 Based): LRES2024PT
Technical Specifications
Model
LRES2025PT
Controller
WX1860A4
Cable medium
Copper
Fiber Type
1000Base-T,100Base-T
Bracket Height
Full profile/Low profile
Power (min)
0.78 W
Power (max)
1.452 W
Bus Interface
PCIe 2.0 x4
Data rate per port
100Mbps;1000Mbps
Connector
2*RJ45
Power Supply
PCIe
Protocol Support
IEEE 802.1Qbg(Virtual Ethernet Bridging);
IEEE 802.1Qbb(Priority Flow Control)
IEEE 802.1Qaz(Enhanced Transmission Selection);
IEEE 802.1as(Time Sync);
IEEE 802.1Qau Congestion Notification;
IEEE 802.1q, 802.1p(VLAN)
IEEE802.3az (EEE)
PXE
Yes
UEFI
Yes
WOL
Yes
SR-IOV
Yes
1588 PTP
Yes
Jumbo Frame
9.4KB
ESD
±8KV (Class A)
Lightning surge test
±6KV common mode
Operating System Support
* Windows 7/8/8.1/10/ 11
* Windows Server 2012/2016
* Windows Server 2019/2022
* Deepin 20/20.6/20.9
* VMware ESXi 6.7
* Galaxy Unicorn V10
* NeoKylin 7.6
* OpenKylin 0.7.5
* RHEL/CentOS 7.6/7.9/8.2/8.3
* Ubuntu 16.04.3 /18.04.5/22.04.2
* NewStar Desktop OS 4.5.2
* UOS 20
* NFS-CHINA Desktop OS 4.0
* NFS-CHINA Server OS
* Emind OS
* iKuai router
LED indication
100Mbps
Connection Status
Green Link + Green Link
Transfer status
Green Blink + Green Link
1000Mbps
Connection Status
Green Link + Orange Link
Transfer status
Green Blink + Orange Link
Working parameters
Operating Temperature
-10℃ to 60℃ (14 ℉ to 140 ℉)
Storage Temperature
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 ℃
Certification
FCC, CE, RoHS
Physical properties
PCB size(unit:mm)
150*68.78*1.6
Package size (unit: mm)
222*147*28
