BackHomeProductsIndustrial Automation NICs1G Copper NICs

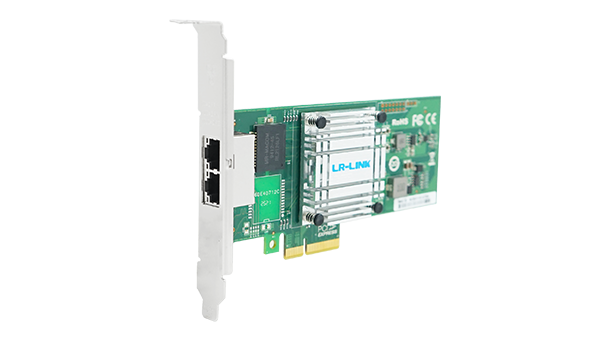

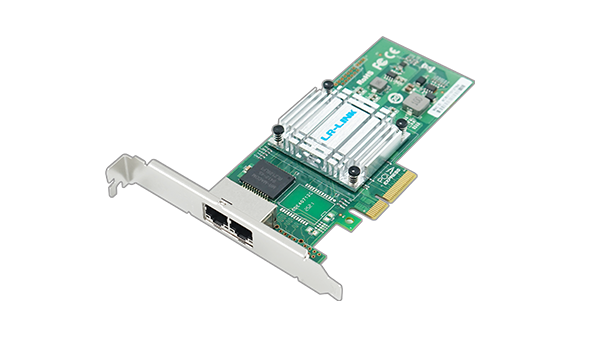

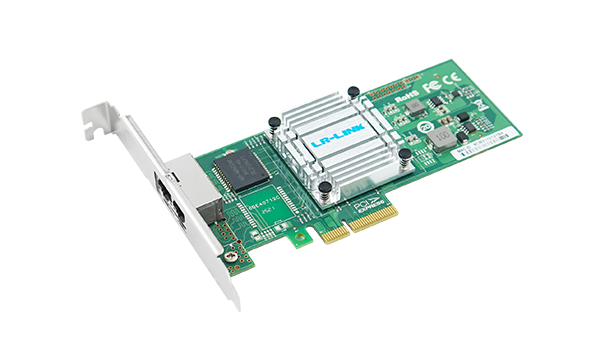

LRES2024PT

PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter (Net-swift WX1860A2 Based)
Key Features
1. Net-swift WX1860A2 main controller;
2. Dual-port Copper Connector;
3. PCI Express (PCIe) v2.1 x4 lanes;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2024PT is a PCI Express v2.1 x4 dual-port Gigabit Ethernet network adapter developed by Linkreal Co., Ltd. based on the WX1860A2 solution of the domestic main controller WebEx Technology. This adapter is compatible with PCIe x4, x8 and x16 and backward compatible with PCIe v1.1. The adapter card achieves a dual-port bidirectional communication transfer rate of 4GB on a PCI Express v2.1 x4 bus.

The ethernet network card (LRES2024PT) with independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated Gigabit Ethernet media access control (MAC) and physical layer (PHY) module. It is widely used in the network communication of enterprises and institutions, and can also be used on PC servers, embedded and other network devices.

The main controller used by the optical network card has independent intellectual property rights and independent controllability, which is of great significance for breaking foreign monopolies and ensuring national information security.

The controller used by LRES2024PT is WebEx Technology WX1860A2, which is a domestically produced main control product with independent controllability. Including data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators have reached the industry level. And has passed X86, Shenwei, Feiteng, Godson, Zhaoxin and other platforms for authoritative testing and application, and overall showed excellent performance.

PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter (Net-swift WX1860):  LRES2025PT


Specifications

Controller

Net-swift WX1860A2

Transmission medium

Copper

Copper Type

Cat 5E & Cat6 or higher, 1000Base-T up to 100m

Cat 5 & Cat5E or higher, 100Base-T up to 100m

Cat 3,4,5 & Cat5E or higher, 10Base-T up to 100m

Baffle Height

Full-height bracket

Power Consumption

2.5W

OS Support

Windows 7/8/8.1/10/11

Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2

Linux Stable Kernel version 2.6.x/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

iKuai 3.6.4

Bus Type

PCIe v2.1 x4compatible with x8 , x16

Data rate per port

100/1000Mbps

Connector

2*1G RJ45 Connector

Power supply

PCIe

Technical Features

Standards compliant

IEEE802.3at -2009 PoE standard

IEEE802.3af -2003 PoE standard

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

No

FCoE

No

PCI-SIG/SR-IOV

Yes

Environment Features

Operating Temperature

0 to 55 (32 to 131)

Storage Temperature

-40 to 70 (-40 to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical Features

Size (mm ±0.5mm)

156.7*120*12

Weight (g ±2g)

*

LED Indication

LED indication

1000M, Green bright + Green flashing

10M/100M, Orange bright + Green flashing

Order information

P/N

Description

LRES2024PT

PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter (Net-swift WX1860A2 Based)
