LRES2006PT is a PCI Express 2.1 x4 six-port gigabit ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 chip. It is also compatible with PCIe x8 and x16. The adapter design is mainly applied to servers and high-end devices. The adapter is optimized and its performance is improved, so that system I/O is no longer the bottleneck of high-end network applications. The adapter can be bundled into multiple groups at the same time to achieve fault tolerance and redundancy to expand network bandwidth and ensure network performance. It can automatically detect and implement communication from the faulty port to other members in the same group to continue operation. To achieve uninterrupted high performance communication.
The adapter has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator and release the CPU resources to free up more CPU resources to process other applications. This adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
Developed on the Intel I350 ethernet MAC+PHY controller, the LRES2006PT allows up to six ports at full time in a gigabit ethernet connection. The working mode works to adapt to high-performance network communication, and can extend the bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth. The LRES2006PT supports both PCI*SIG SR-IOV (Single Root I/O Virtual and Sharing Specification). The larger heat sink can effectively solve the heat dissipation problem of the adapter under the internal closed machine, which can effectively ensure the stable operation of the adapter card for a long time.
Specifications
|
Controller |
Intel I350 |
|
Cable medium |
Copper |
|
Cable Type |
Cat 5E & Cat6 or higher, 1000Base-T up to 100m |
|
Cat 5 & Cat5E or higher, 100Base-T up to 100m |
|
|
Cat 3,4,5 & Cat5E or higher, 10Base-T up to 100m |
|
|
Bracket Height |
Full Height & Low Profile |
|
Power Consumption (MIN) |
6.792W |
|
Power Consumption (MAX) |
9.996W |
|
System Support |
Windows7 /8 /8.1 /10 /11 |
|
Windows Server 2008 R2 /2012 R2 /2016 R2 |
|
|
Windows Server 2019 R2 /2022 R2 |
|
|
RHEL/Centos 7.3 /7.6 /7.9 /8.2 /8.3 |
|
|
Deepin 15.11 /20 /20.6 |
|
|
Ubuntu 16.04.3 /18.04.5 /20.04.1 |
|
|
SUSE 12.5 |
|
|
FreeBSD 12.2 |
|
|
ZTE New Fulcrum 3.2.2 /5.0.5 |
|
|
Asianux Server v7.0 |
|
|
Galaxy Unicorn v10 SP1 |
|
|
NeoKylin 7.6 |
|
|
Zhongke Fangde desktop operating system 4.0 |
|
|
Zhongke Fangde server operating system |
|
|
Tongxin UOS 20 |
|
|
Emind OS |
|
|
VMware ESXi 6.5 /6.7 /7.0 |
|
|
iKuai router |
|
|
openKylin 0.7.5 |
|
|
Bus Type |
PCIe v2.1 x4 , compatible with x8 , x16 |
|
Data Rate |
10/100/1000Mbps |
|
Connector |
6*1G RJ45 |
Technical Features
|
Standards Compliant |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
PXE |
Yes |
|
DPDK |
Yes |
|
WOL |
Yes |
|
iSCSI |
No |
|
Jumbo frame |
Yes |
|
FCoE |
No |
Environment Features
|
Operating Temperature |
0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|
Storage Temperature |
-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
Physical Features
|
PCB Size(mm) |
151.6*107.7*1.6 |
|
Package Size(mm) |
250*170*32 |
|
Weight(g) |
* |
LED Indicators
|
10M
|
LINK |
Yellow Link |
|
ACT |
Yellow Blink |
|
|
100M
|
LINK |
Yellow Link + Orange Link |
|
ACT |
Yellow Blink + Orange Link |
|
|
1G
|
LINK |
Yellow Link + Green Link |
|
ACT |
Yellow Blink + Green Link |
Order Information
|
P/N |
Description |
|
LRES2006PT |
PCIe x4 Six-port Copper Gigabit Ethernet Netwok Adapter |
PS: Above details are only for reference, if there is any change,no prior notice.
Category:Driver version:intel 8575/8576/i211/i210/i350 driver Size:KB Views:1Date:2023-03-13
Category:Driver version:intel windows driver Size:KB Views:1Date:2023-03-13

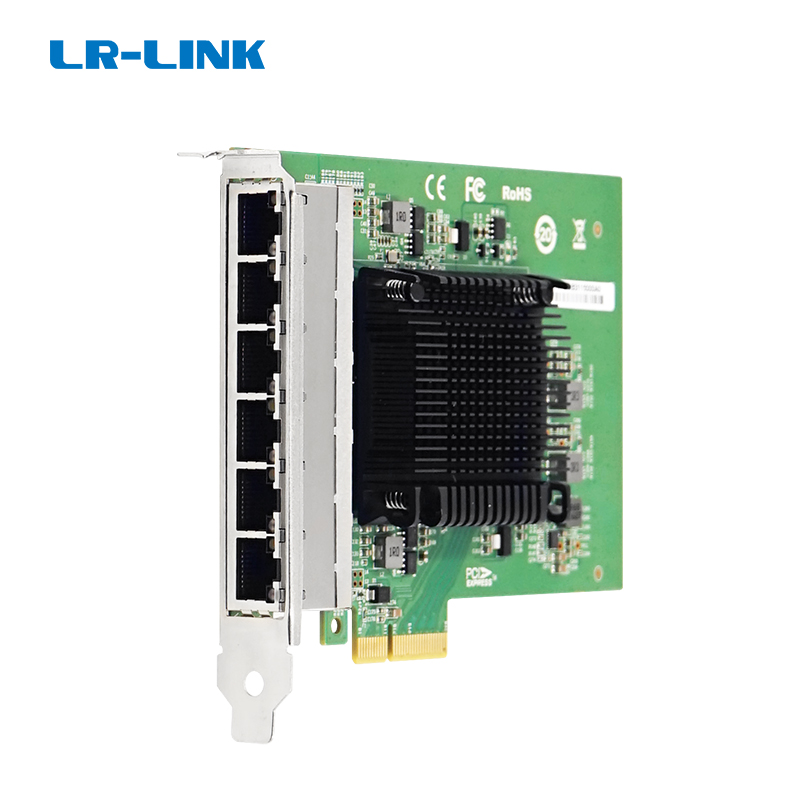

PCIe x4 Six-port Copper Gigabit Ethernet Network Adapter (Intel I350)
