LRES1052PT

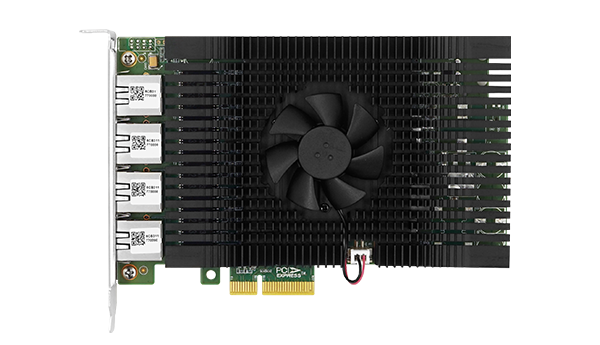

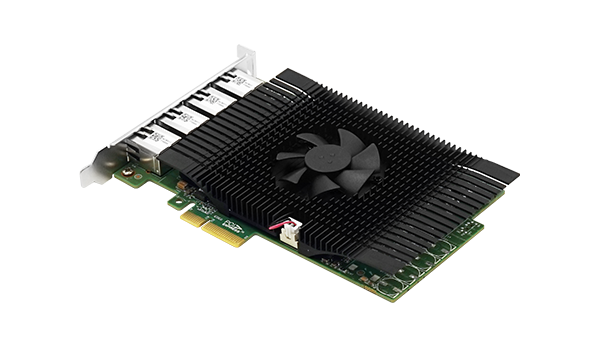

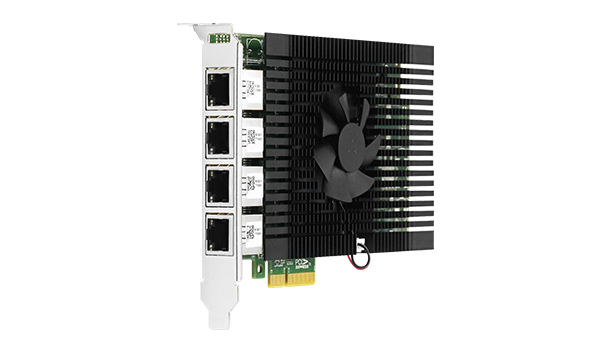

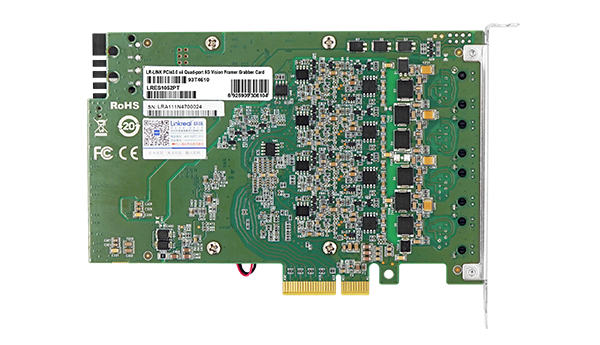

PCIe3.0 x4 Quad-port 5G Vision Framer Grabber Card
Key Features
- Supports network rate adaptation of 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps;
- Support PCIe 3.0 (8GT/s);
- Integrate PCIe, MAC and PHY to minimize power consumption;
- Supports packets up to 16KB (jumbo frames);
- Supports IPv4/v6, IPv6/TCP, IPv6/UDP checksum offloading

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1052PT is a PCIe3.0 x4 Quad-port 5G Vision Framer Grabber Card independently developed by Linkreal Co., Ltd. based on the Aquantia AQtion AQC111C main controller solution. It is also compatible with PCIe x8 and x16 slots. It is a high-performance 4 electrical port adapter. Mainly used in industrial field visual inspection equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. This image capture card performs outstandingly in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be connected to four 5GigE industrial cameras at the same time to work stably and meet the installation and use of conventional industrial computers.

Technical Specifications

Model

LRES1052PT

Controller

Aquantia AQtion AQC111C

Cable medium

Copper

Fiber Type

CAT-5

50M5Gbps);100M5Gbps

CAT-6

50M5Gbps);100M5Gbps

CAT-6e

50M5Gbps);100M5Gbps

CAT-7

100M5Gbps

Bracket Height

Full Height

Power (min)

4.44W

Power (max)

20.76W

Bus Interface

PCIe v3.0 (8.0GT/s) x4; compatible x8 x16

Data rate per port

100Mbps;1Gbps;2.5Gbps;5Gbps

Connector

4* RJ45

ESD

Contact discharge

±6KV

Air discharge

±8KV

Lightning surge test

±4kV common mode

Power Supply

PCIe

Operating System Support

* Windows 10 /11

* Windows Server 2016 /2022

* Deepin 15.11 /20 /20.6 /20.9

* VMware ESXi 6.7 /7.0

* Galaxy Unicorn V10 SP1 /V10

* NeoKylin 7.6

* RHEL/CentOS 7.6 /7.9 /8.3

* Ubuntu 16.04.3 /18.04.5

* Ubuntu 20.04.1 /22.04.2

* ZTE New Fulcrum 5.0.5 /3.2.2

* Tongxin UOS 20

* Asianux Server V7.0

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Emind OS

* iKuai router

PXE

Yes

MDI/MDI-X

Yes

WoL

No

Jumbo Frames

Yes

IEEE 1588

No

SR-IOV

No

Jumbo Frame(max)

16KB

Protocol Support

IEEE 802.3bz 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/ 100BASE-T/ 10BaseT Gigabit Ethernet



LED indication

100Mbps/1Gbps/2.5Gbps

LINK

Red Link + Green Link

ACT

Red Link+ Green Blink

5Gbps

LINK

Green Link + Green Link

ACT

Green Link + Green Blink



Working parameters

Operating Temperature

0to 70(32 to 158 )

Storage Temperature

-40 to 85 (-40 to 185 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical properties

PCB size(unit:mm)

156.7 x 104.37 x 1.6

Package size (unit: mm)

250 x 170 x 32



Packing list

Baffle specifications

Full bracket(installed)

Network card

*1

Product warranty card

*1

Packing

Carton and Blister box
