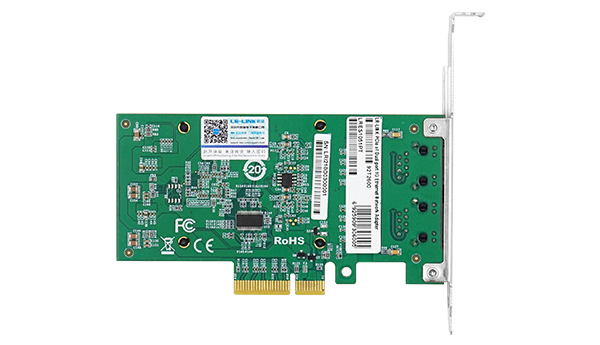

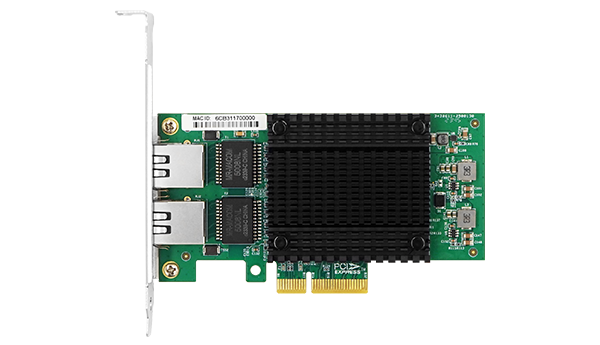

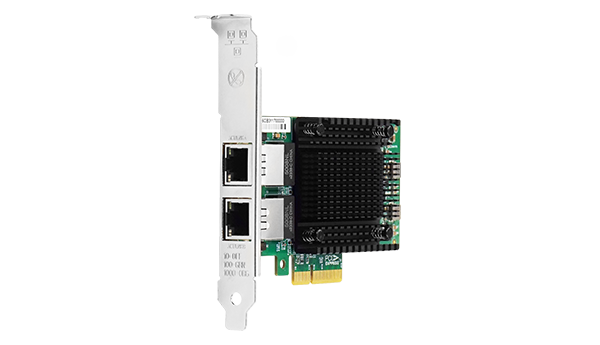

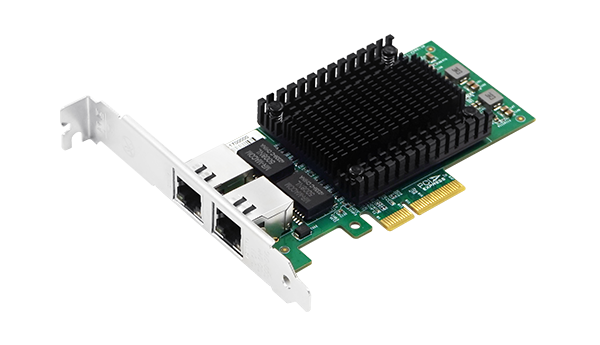

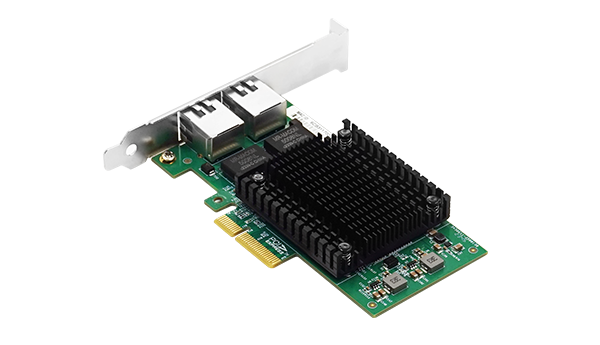

LRES1051PT is a PCIe2.1 x4 dual-port 1G Ethernet Network Adapter developed based on the Intel I210AT main control solution. The adapter uses PCIe 2.1 x4 interface, equipped with dual electrical port design, and supports Gigabit Ethernet connection, making the network layout more flexible while ensuring the bandwidth and speed of data transmission. It adopts Ethernet power management technologies such as energy-saving Ethernet and DMA merging, and has 4 send queues and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission, by combining parallel and pipeline logic architecture together to efficiently manage packets with latency. LRES1051PT supports Wake-on-LAN function, which can remotely wake up the device through the network to facilitate remote management and maintenance. At the same time, its UEFI compatibility ensures stable startup and operation on various platforms, enhancing system compatibility and reliability. LRES1051PT is suitable for various scenarios such as industrial automation control systems, machine vision applications, Internet of Things equipment, and industrial monitoring systems, providing users with stable and reliable network connection and control functions.
Model | LRES1051PT | |
Controller | Intel I210AT | |
Cable medium | Copper | |
Fiber Type | 1000BASE-T、100BASE-TX、10BASE-T | |
Bracket Height | Low Profile & Full Height | |
Power (min) | 2.808W | |
Power (max) | 3.684W | |
Bus Interface | PCIe v2.1 (2.5GT/s) x1; Structure PCIe x4 | |
Data rate per port | 10Mbps；100Mbps；1Gbps | |
Connector | 2* RJ45 | |
ESD | ±8KV | |
Lightning surge test | ±2KV | |
Power Supply | PCIe | |
Operating System Support | * Windows 7/8/8.1/10/11 * Windows Server 2008/ 2012 * Windows Server 2016/2019 * Windows Server 2022 * RHEL/Centos7.6/7.9/8.2/8.3 * Deepin 15.11/ 20(deepin) * Deepin 20.6/20.9(deepin) * Ubuntu 18.04.5/20.04.1 * Ubuntu 22.04.2/ 22.04.3 * SUSE 12.5/15.4 * FreeBSD 12.2/13.2 * ZTE New Fulcrum 3.2.2/5.0.5 | * Galaxy Unicorn v10 * NeoKylin 7.6 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5 * VMware ESXi 6.5/6.7/7.0 * Mikrotik * iKuai router |
RSS | 4 | |
PXE | No | |
WoL | Yes | |
DPDK | Yes | |
Jumbo Frames | Yes | |
UEFI | Yes | |
SR-IOV | No | |
1588 PTP | Yes | |
Jumbo Frame(max) | 9.5KB | |
Protocol Support | IEEE802.3u IEEE802.3ab IEEE 802.1AS IEEE 802.1Qav IEEE 802.3az | |
10Mbps | Connection Status | Green Link |
Transfer status | Green Blink | |
100Mbps | Connection Status | Green Link + Green Link |
Transfer status | Green Link + Green Blink | |
1Gbps | Connection Status | Green Link + Orange Link |
Transfer status | Green Blink + Orange Link |
Operating Temperature | 0℃ to 70℃ (32℉ to 158℉) |
Storage Temperature | 0℃ to 70℃ (32℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
