LRES1048PT

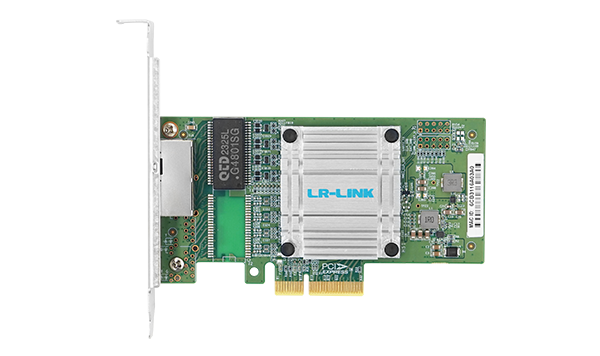

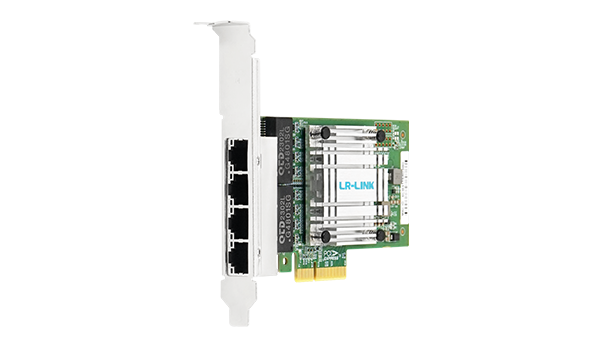

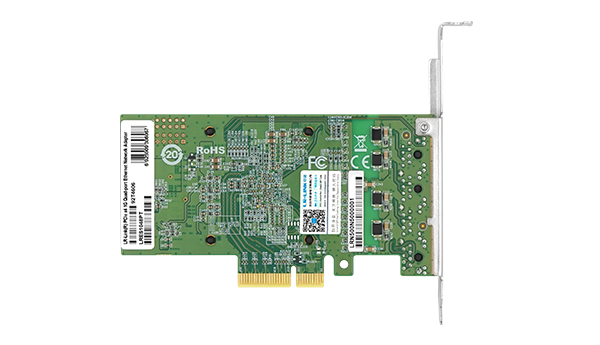

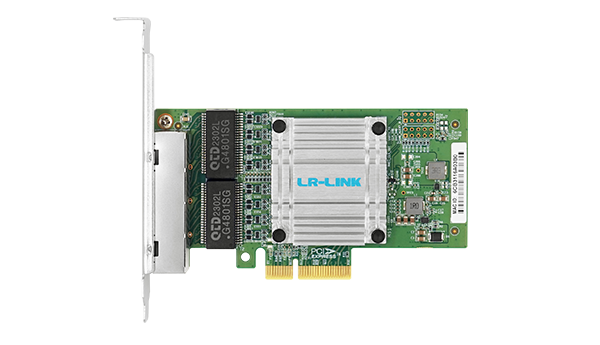

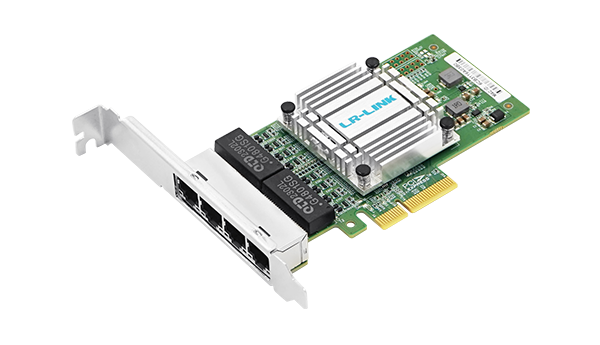

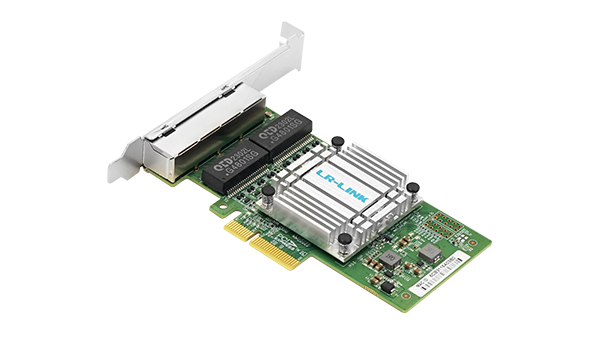

PCIe x4 1G Quad-port Ethernet Network Adapter (Mucse RNP N500L-AM4 Based)
Key Features
- Support network protocol hardware acceleration;
- Support cross detection and automatic correction;
- Support IEEE 1588 PTP clock synchronization;
-Support 10/100/1000Mbps network adaptation;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1048PT is a PCIe 2.0 x4 1G Quad-port Ethernet network adapter developed based on the Mucse RNP N500L-AM4 main control solution. It is a purely domestic network solution. It utilizes the PCIe 2.0 x4 interface to achieve high-bandwidth and low-latency data transmission, ensuring smooth network operation. Configured with four Gigabit Ethernet interfaces to meet high-density and high-throughput network connection requirements, it is suitable for multiple scenarios such as servers, network security equipment, and data centers. And as a domestic design, it meets the national information security and independent controllability requirements, providing users with a stable and reliable network connection experience. Overall, LRES1048PT creates a highly reliable network adapter for users with its excellent performance and comprehensive applicability.

Model

LRES1048PT

Controller

Mucse RNP N500L-AM4

Cable medium

Copper

Fiber Type

1000BASE-T100BASE-TX10BASE-T

Bracket Height

Low Profile & Full Height

Power (min)

1.836W

Power (max)

3.384W

Bus Interface

PCIe v2.0 (5.0GT/s) x4

Data rate per port

10Mbps100Mbps1Gbps

Connector

4*1G RJ45

Power Supply

PCIe

Operating System Support

* Deepin 20 /20.6 /20.9

* Galaxy Unicorn V10

* NeoKylin 7.6

* RHEL/CentOS 7.6 /7.9 /8.3/8.4

* Ubuntu 16.04.3 /18.04.5

* Ubuntu 20.04.1 /22.04.2

* ZTE New Fulcrum 5.0.5 /3.2.2

* Tongxin UOS 20

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Emind OS

* iKuai route

* Open Kylin 0.7.5

RSS

8 queues per port

PXE

Yes

MDI/MDI-X

Yes

DPDK

Yes

WoL

Yes

Jumbo Frames

Yes

SCAN CHAIN

No

IEEE 1588

Yes

SR-IOV

Yes

UEFI

Yes

Jumbo Frame(max)

9.5KB

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3az - Energy Efficient Ethernet (EEE)



LED indication

10Mbps

Connection Status

Green Link

Transfer status

Green Blink

100Mbps

Connection Status

Green Link + Green Link

Transfer status

Green Link + Green Blink

1Gbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link



Working parameters

Operating Temperature

-40℃ to 85℃ (-40℉ to 185℉)

Storage Temperature

-40to 85(-40to 185)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS



Physical properties

PCB size(unit:mm)

125*68.8*1.6

Package size (unit: mm)

222*147*28



Packing list

Baffle specifications

Full bracket(installed) and Low bracket

Network card

*1

Product warranty card

*1

Packing

Carton and Blister box
