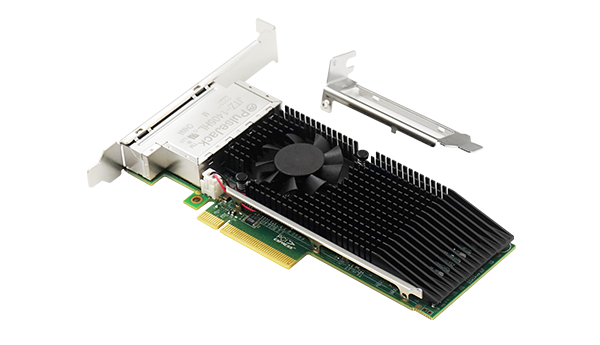

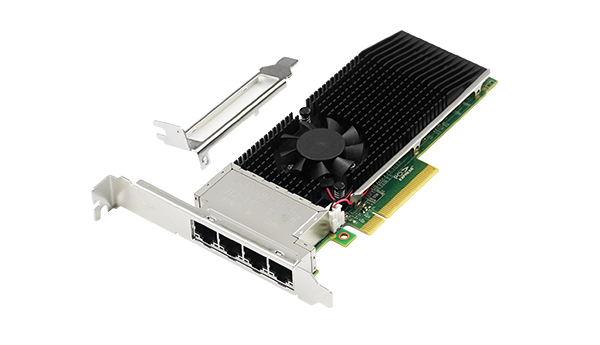

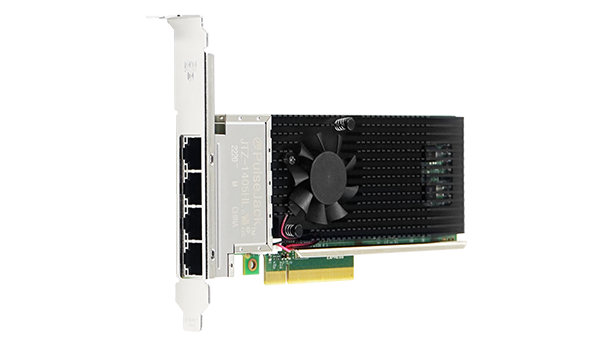

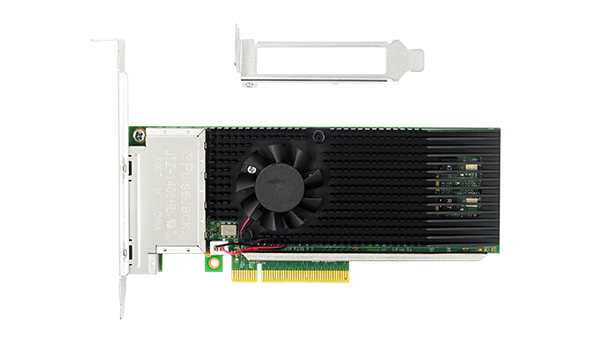

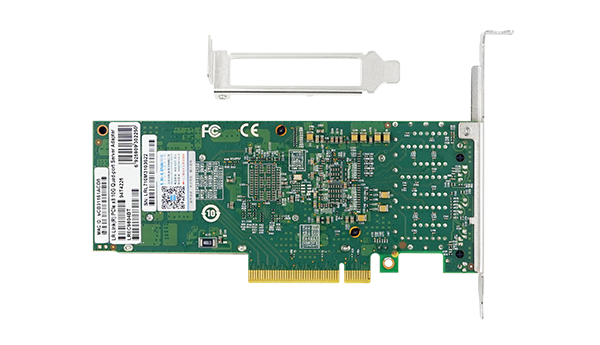

LREC9804BT

PCIe x8 Quad-port 10G Copper Ethernet Server Adapter (Intel XL710)
Key Features
Quad-port 10GbE adapter
PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
RJ45 Connectivity
Network Virtualization
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low Profile and Full Height Bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC9804BT is a PCIe x8 10Gbps Quad Port Ethernet Copper Network Card based on Intel XL710 chipset, independently developed by Linkreal Co., Ltd., and compatible with x16 lanes. The sever adapter,based on the Intel XL710 controller, is compatible with the existing network infrastructure and it will conveniently migrate the existing 100Mb/s and 1GbE networks to 10GbE. It can also link auto-negotiation among the rate of 100Mbps, 1GbE and 10GbE, which meets the most customers’ demanding of smooth transition and ease of migration to 10GbE.

The server adapter has four ports, of each can fully work independently, supporting four different practical application networks while working and decrease the number of slots on the equipment. The adapter has good compatibility with its four ports can be grouped together through their own ports or other Ethernet adaper ports. It can provide multiple fuctions like widening access bandwidth and bandwidth access redundancy to achieve an non-stop access to the network.

The network card uses a simple, universal 10GbE access interface that can be set at any place of a data center conveniently. LREC9804BT support the data transmission distance of 100 metres and plunk for Network structures such as Top of Rack(ToR), Middle of Row(MoR),End of Row(EoR) and etc..Intel Ethernet 700 series network adapter help the server to provide wide interoperability, optimized key performances and flexible IT network solutions among telecommunications, cloud computing and enterprises.

PCIe x8 Quad-port 10G Copper Ethernet Network Adapter: LRES1013PT



Controller

Intel XL710

Transmission rate per port

100Mbps/1Gbps/10Gbps

Network Standard Physical Layer Interfaces

10GBASE-T

1000BASE-T

100BASE-T

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Network Virtualization

VXLAN, MACinUDP, NVGRE, IPinGRE

LED Indicators OPERATION

10Gbps: LINK LED green, Green ACT LED Blink

1Gbps: LINK LED Yellow, Green ACT LED Blink

100Mbps: Green ACT LED Blink

Operating System Support


Windows Server 2016(Core)/2012 R2(Core)/2012(Core)/2008 R2(Core)

Windows 7/8/8.1/10

Linux Stable Kernel version 2.6.32/3.x/4.x or later

VMware ESX/ESXi 5.x/6.x


Model

Description

Noted

LREC9804BT

PCIe x8 10Gbps Quad-port Copper Ethernet Network Adapter (Based on Intel XL710 Chispet 4 x RJ45)

Based on Intel XL710,3U/2U bracket


PS: Above details are only for reference, if there are any changes, no inform will have.
