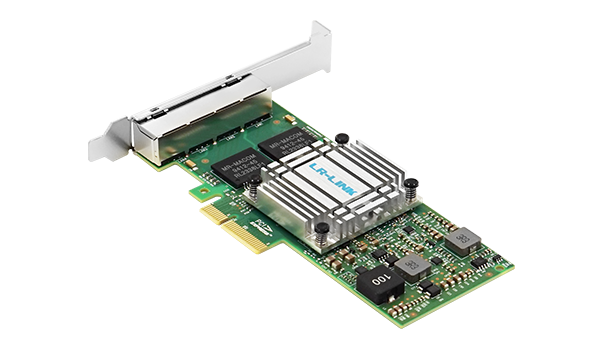

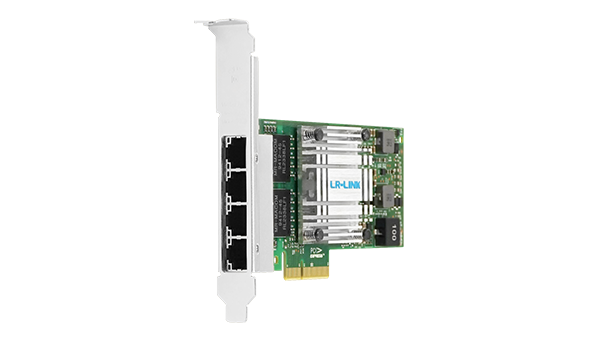

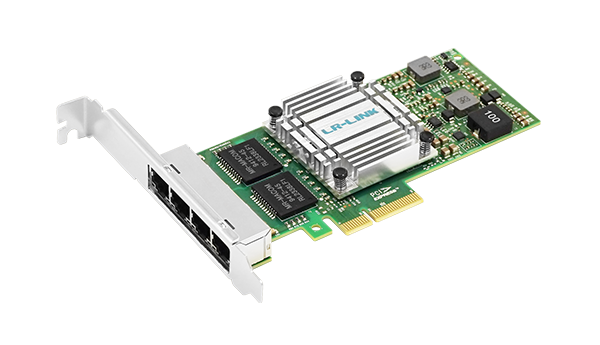

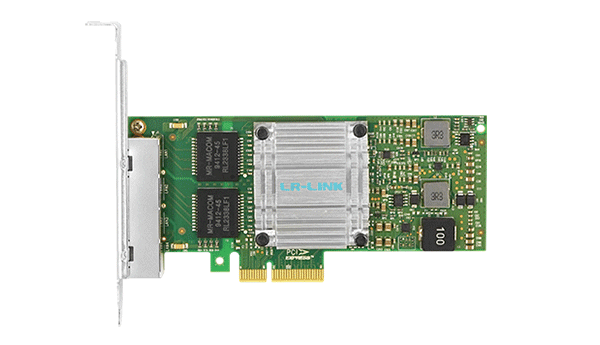

LREC9714HT

PCIe x4 Quad-port Copper Gigabit Ethernet Network Adapter (Intel I350)
Key Features
-Based on Intel I350;
-Equipped with four 1G RJ45 ports, supporting 10/100/1000Mbps data transfer rate;
-Fault-tolerance and redundancy by bundling and aggregating multiple ports simultaneously to extend network bandwidth and safeguard network performance.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC9714HT is a PCIe x4 quad-port 1G Server Adapter developed by Linkreal CO.,LTD. based on Intel I350, which is compatible with PCIe x8 and x16 slots. The adapter is designed for servers and server clusters and other network applications. It can realize fault tolerance and redundancy by bundling multiple ports into a group to expand network bandwidth and guarantee network performance, and can automatically detect and realize real-time routing of communications from the faulty ports to other members of the same group for uninterrupted high-performance communications.


The LREC9714HT features integrated hardware acceleration to perform TCP/UDP/IP checksum offload and TCP segmentation tasks.Developed on the Intel I350 quad-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, the LREC9714HT utilizes a compact interface architecture to better utilize server space, allowing four network ports to operate simultaneously in full-duplex mode for high-performance network communications when on a Gigabit Ethernet connection. It can extend the bandwidth through link aggregation and save PCI Express channel resources at the same time without taking up the bus bandwidth. Supports PCI SIG Single-Root I/O virtualization and sharing specification (SR-IOV).




PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT

Controller

Intel I350

Cable medium

Copper

Fiber Type

1000Base-T Cat 5E & Cat6 or higher: up to 100m

100Base-Tx Cat5, Cat 5E & Cat6 or higher: up to 100m

10Base-T Category 3, 4, 5, 5E & Cat6 or higher: up to 100m

Bracket Height

Full height & half height

Max Power(w)

5.04 W

Connector

4 * 1G RJ45

Bus Type

PCIe v2.1 (2.5GT/s & 5.0GT/s) x4; x8, x16 compatible

Data rate per port

10/100/1000Mbps

Power Supply

PCIe

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3az - Energy Efficient Ethernet

IEEE 802.3z / IEEE 1588 /IEEE 802.3ad

PXE

No

DPDK

Yes

WoL

Yes

iSCSI

No

Jumbo Frames

Yes

FCoE

No

System Support

Windows XP /7 /8 /8.1 /10

Windows Server 2003 / R2

Windows Server 2008 / R2

Windows Server 2012 / R2

Windows Server 2016 / R2

Windows Server 2019 / R2

RHEL/CentOS 6.x / 7.x or later

Ubuntu 14.x / 16.x or later

FreeBSD 9 / 10 / 11 or later

Linux Stable Kernel version 2.6.x/3.x / 4.xor later

Vmware ESX/ESXi 4.x / 5.xor later

1000Mbps

ACT

(Up)Green Blink

LINK

(Down)Orange Link

100Mbps

ACT

(Up)Green Blink

LINK

(Down)Green Link

10Mbps

ACT

(Up)Green Blink

LINK

/

Operating Temperature

0to 55(32 to 131 )

Storage Temperature

-40 to 70 (-40to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS


Bracket

Full bracket(installed) and Low bracket

Internet Network Adapter

*1

Product Warranty Card

*1

Packaging

Carton + Blister Box
