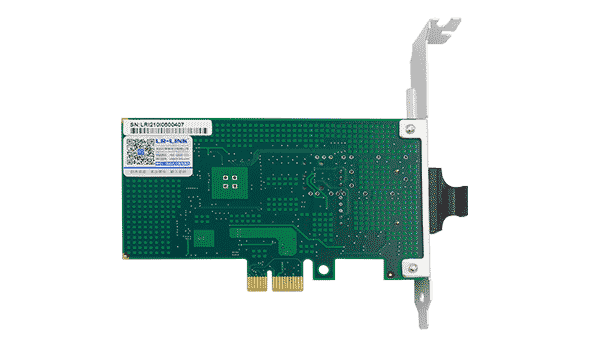

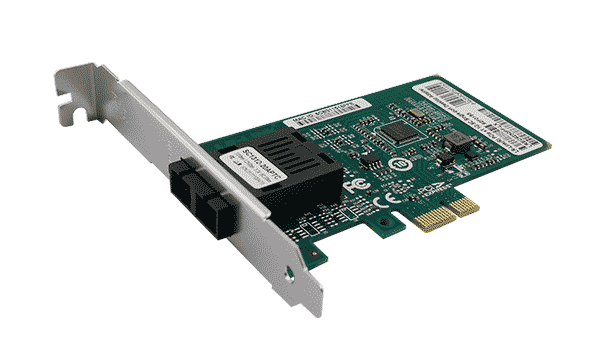

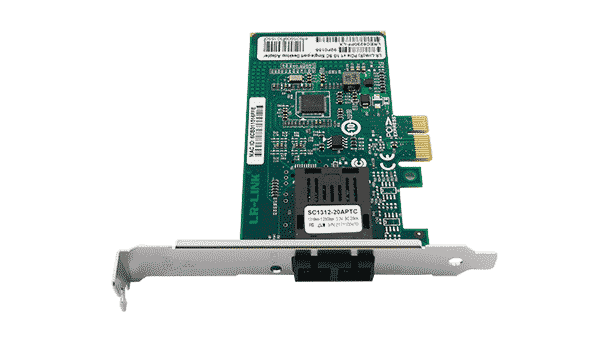

LREC6230PF-LX

1000Base-LX PCIe X1 SC Port Network Interface Card
Key Features
Single Port 1GBE adapters
PCI Express (PCIe) v2.1, 2.5 GT/s, x1 lanes
PXE,SCSI boot
IEEE 802.3az 1GEthernet Specification Compliance
Data Plane Development Kit (DPDK) support
Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC6230PF/ LREC6230PF-LX /LREC6230PF-BD /LREC6230PF-SFP/6230PF-LC is a PCIe x1 2.1 1Gbps Single Port Ethernet Fiber Desktop Adapter based on Intel I210 chipset, and is compatible with PCIe x4,x8,x16 slot. System I/O is no longer the bottleneck of network applications. In the networking connections, PCI Express dedicated input /output (I / O) bandwidth to ensure the network card to use the superior performance without taking up bus bandwidth.

The Desktop Adapter has high performance, high stability, high quality and very good compatibility, compatible with all brands of computers and fiber switches. This adapter is the ideal solution for deploying high-performance fiber-to-the-desktop (FTTD) applications and network security industry.

Controller

Intel I210

Transmission rate per port

1GbE

Network Standard Physical Layer Interfaces

1000Base-LX (1310nm)

1000Base-SX (850nm)

Jumbo Frame Support

Up to9.5 KB

Operating Temperature

-5°C to40 °C (23 °F to 104°F)

LED Indicators OPERATION

Link Orange,1000Mbps:Orange blinking

OperatingSystem Support

Windows Server2016/2016/R2/2012/2012R2/2008/2008 R2/ 2003 /2000/7/8/8.1/10

WindowsCE/5.0 /Vista 32-bit (64-bit)

NetWare NetWare 5.0/5.1/6.0/ DOS/ Novell ODI

Linux 2.4 series kernel and 2.6.x/3.x /FreeBSD with the 9.x kernel

OpenUNIX 8.0 (Caldera), UnixWare 7.x /Sun Solaris x86

Model

Description

LREC6230PF/LREC6230PF-LX

Intel I210 Based PCIe x1 1000Base-SX/LX Single Port Fiber Desktop Adapter (1XSC MM or SM)

LREC6230PF-BD

Intel I210 Based PCIe x1 1000Base-SX/LX Single Port Fiber Desktop Adapter (1XSC BIDI)

LREC6230PF-SFP

Intel I210 Based PCIe x1 1000Base-SX/LX Single Port Fiber Desktop Adapter (1XSFP)

LREC6230PF-LC

Intel I210 Based PCIe x1 1000Base-SX/LX Single Port Fiber Desktop Adapter(1X LC)

LRGP8512-X5ATL

1.25Gbps SFP multi-mode Transceiver

LRGP1312-20ATL

1.25Gbps SFP Single-mode Transceiver


PS: The above details are just for reference, if there are any changes, no prior notice.
