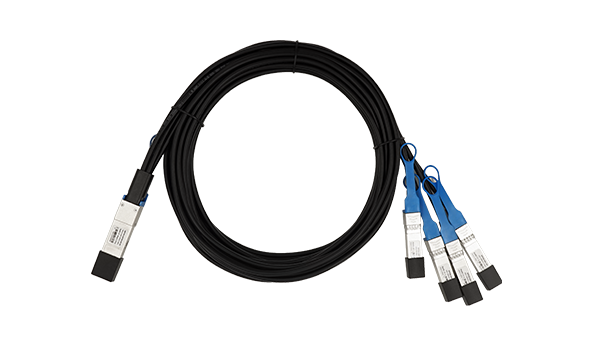

QSFP28-4xSFP28-DAC-3m

100G QSFP28 to 4x25G SFP28 Direct Attach Copper Cables
Key Features
§ Single power supply +3.3V;
§ QSFP28 End: Compliant with QSFP28 MSA specifications;
§ SFP28 End: Compliant with SFP28 MSA specifications;
§ AC coupled inputs and outputs;
§ 4 independent duplex channels operating at 25Gbps
§ RoHS Compliant;
§ All-metal housing for superior EMI performance;
§ Operating Case Temperature: 0℃~+70℃;
§ Storage Temperature: -40℃~+85℃;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LR-LINK QSFP28-4xSFP28-DAC-3m is the preferred solution for 40G speed short-range data transmission with low power consumption, good stability and high cost performance.The QSFP28 to 4SFP28 passive cable is used for data transfer between a 100G QSFP28 port and four 25G SFP28 ports, providing a low-cost solution for data transfer services within and between data center racks.This product complies with the QSFP28 MSA and SFP28 MSA standards.

QSFP28-4xSFP28-DAC-3m is the preferred solution for short-distance data transmission at 100G rate. It is suitable for data transmission within and between racks in data centers.

Technical parameter



Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

VCC

-0.5

-

3.6

V

Storage Temperature

TST

-10

-

75

Operating temperature

TOPC

0

-

70

Bit Error Rate

BER

-

-

E-12

-

Recommended work environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Operating Case Temperature

TA

0

-

70

Power Supply Voltage

VCC

3.14

3.3

3.46

V

Order Information



P/N

Description

PS

QSFP28-4xSFP28-DAC-3m

100G QSFP28 to 4x25G SFP28 Direct Attach Copper Cables

Length: 3 meters



PS: Above details are only for reference, if there is any change,no prior notice.
