LRUA9282-LPT

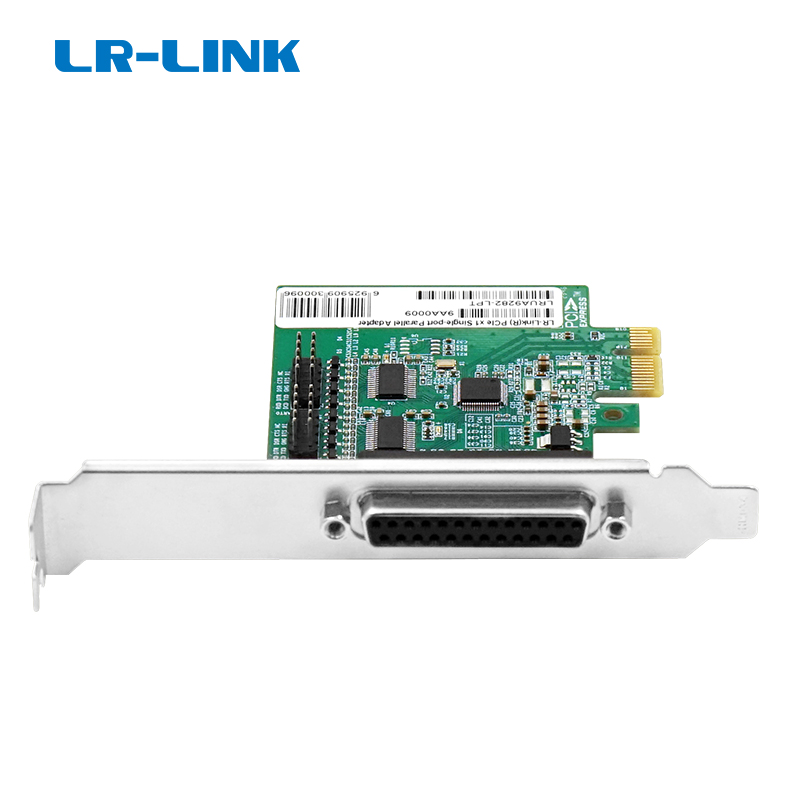

PCIe x1 Single-port Parallel Adapter (CH382L Based)
Key Features
- Comply with IEEE1284 parallel port protocol;
- Supports domestically produced CPUs such as Feiteng and Kirin;
- Miniature design, easy to install;
- Supports two-way data transmission and supports a maximum transmission speed of 1MB/s.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRUA9282-LPT is a PCIe X1 single-port parallel adapter based on CH382L chip. The adapter adopts a single parallel port design and supports plug-and-play without any driver. It has the characteristics of strong compatibility, compact appearance, and low power consumption. It is suitable for various scenarios that require high-speed parallel port data transmission, such as printers, scanners, external storage devices, etc., providing users with a convenient and efficient data transmission experience.

Technical Specifications

Model

LRUA9282-LPT

Controller

CH382L

Bracket Height

Low Profile & Full Height

Power (max)

500mW

Bus Interface

PCIe1.1 X1

Data rate per port (max)

1MB/s

Connector

IEEE1284 parallel port/printing port

Power Supply

PCIe

ESD

Contact discharge

±8KV

Operating System Support

* Windows 7/8/8.1/10/11

* Windows Server 2012/2016

* Windows Server 2019/2022

* Galaxy Unicorn KOS 2303AMD

* Tongxin UOS 20 1060AMD

* Galaxy Unicorn KOS 2303ARM

* Tongxin UOS 20 1060ARM

Power Indicator

Green Link



Working parameters

Operating Temperature

0to 80(32to 176)

Storage Temperature

-20to 85(-4to 185)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical properties

PCB size(unit:mm)

80*68.9*1.6mm

Package size (unit: mm)

179*150*30mm



Packing list

Baffle specifications

Full bracket(installed) and Low bracket

Parallel Adapter

*1

Product warranty card

*1

Packing

Carton and Blister box
