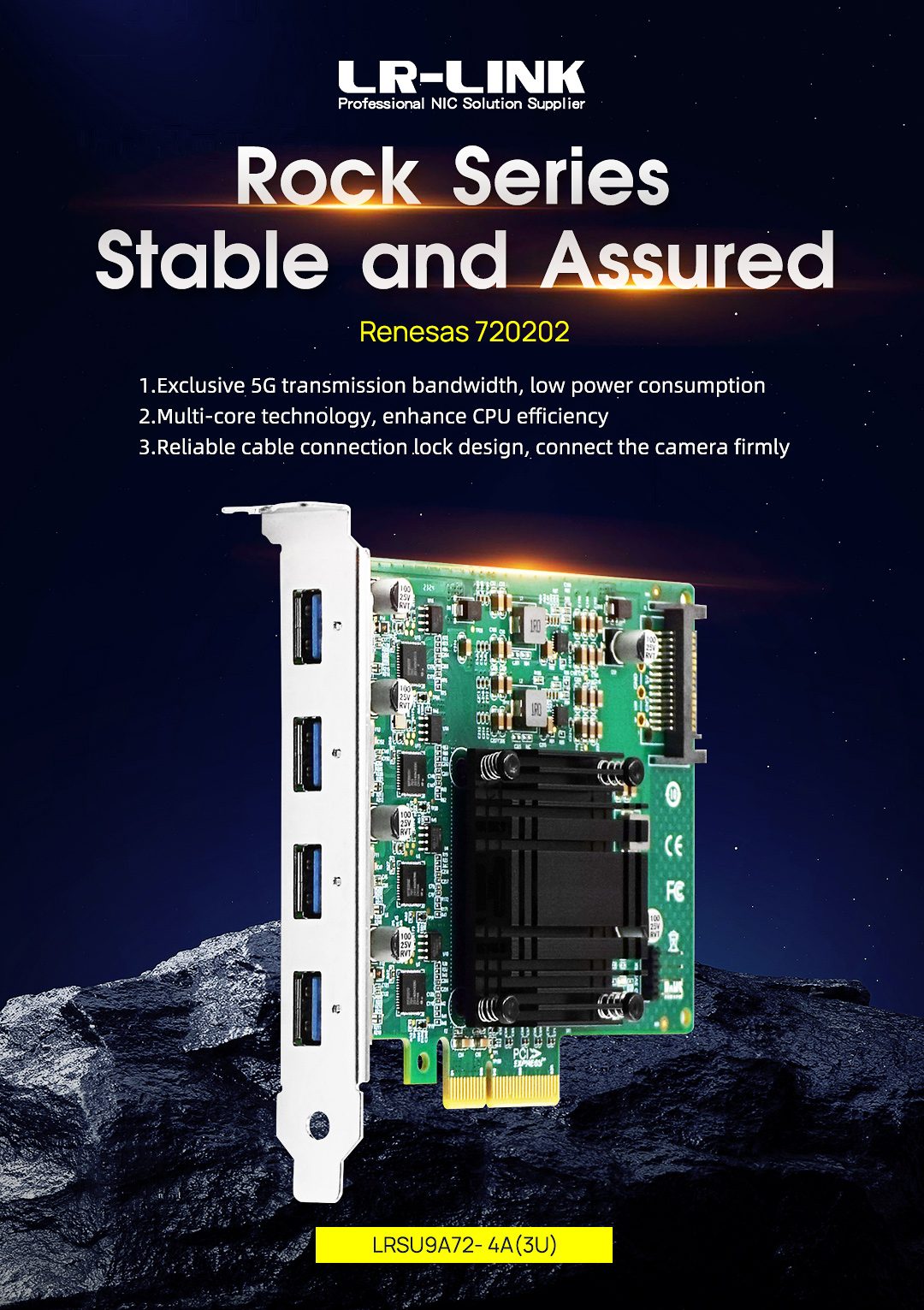

LRSU9A72-4A(3U) is a PCI-Express 2.0 x4 quad-port USB 3.2 Gen1 Type-A 5Gb USB3.0 adapter developed based on the Renesas uPD720202 master control solution. This USB adapter can easily extend 4 USB ports to a PC or server to connect multiple external devices, such as industrial cameras, through available x4 or higher PCle slots. This USB card has a USB 3.2 Gen1 port with a channel bandwidth of up to 5 Gbps. The design of the LRSU9A72-4A (3U) allows the product to have a single-channel bandwidth of 5Gbps. At the same time, this port supports hot plugging, and users can use it as needed. Connect and disconnect external drives. The adapter configures the new USB 3.2 Gen1 standard to support data transfer speeds that are ten times faster than the previous generation USB 2.0 standard.
HARDWARE | ||
Model | LRSU9A72-4A(3U) | |
Bus Type | PCI-Express 2.0 x4 | |
I/O Controller | Renesas uPD720202 | |
External Port | USB 3.2 Gen1 Type-A | |
Number of ports | 4 | |
Transfer Speed | per channel: 5Gb/s | |
ESD_Contact discharge | Contact discharge | ±8KV(Class A) |
ESD_Air discharge | Air discharge | ±4KV(Class A) |
ESD test classification Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser. Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention; Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore; Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data. | ||
CONNECTOR | |
Device Connector | USB 3.2 Gen1 Type-A |
Host Bus | PCI-Express 2.0 x4 |
ENVIRONMENTAL | |
Humidity | 15%-90% |
Operating Temperature | 0℃-85℃(32℉-185℉) |
Storage Temperature | -20℃-70℃(-4℉-158℉) |
Min Power(w) | 3.648W |
Max Power(w) | 11.76W |
PHYSICAL CHARACTERISTICS | |
PCB size(unit:mm) | 98*124*1.6 |
Product Weight(unit:g) | * |
PACKAGING INFORMATION | |
Package size (unit: mm) | 208*143*25 |
WHAT'S IN THE BOX | |
Included in Package | 1 - USB 3.2 Gen1 Adapter |
1 - Full bracket(installed) | |
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| RENESAS-USB3-Host-Driver-30230-setup | Windows | 3.0.23.0 | 2024-08-14 |
 |
