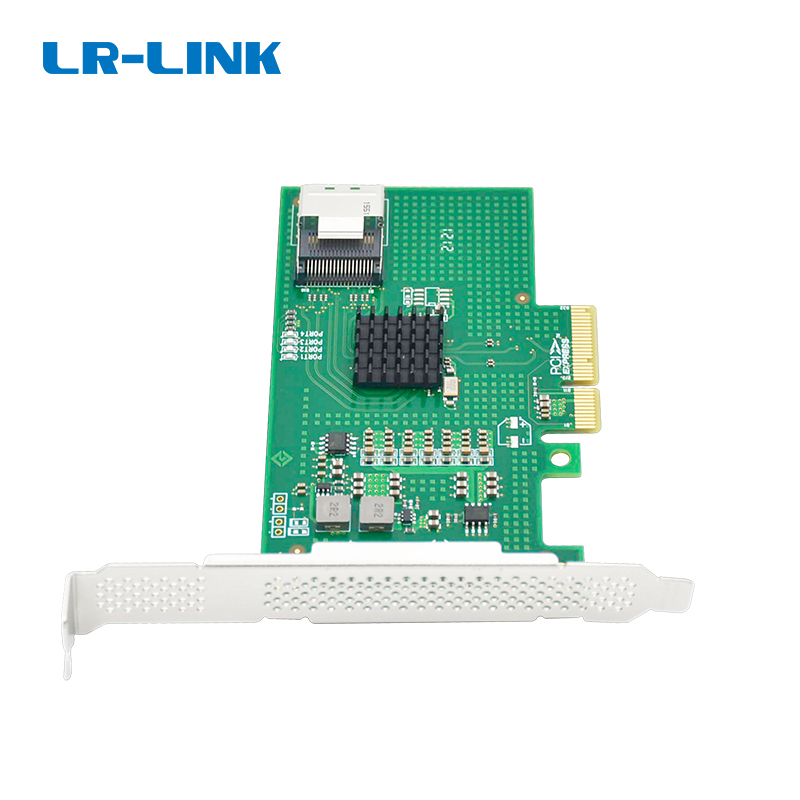

LRST9630-4IR

4 Port SATA III PCI-e 2.0 x1 RAID Controller Card
Key Features

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRST9630-4IR x1 is a 6Gb/s PCIe 2.0 x1 to 4 Port SATA 3.0 RAID Controller Card which can be widely used in Applications of PC, Servers, Gaming and video editing.

PCIE Features

  • Compliant with PCIe 2.0 specifications.
  • Supports communication speeds of 2.5 Gbps and 5.0 Gbps.
  • Supports IDE programming interface registers for the SATA controller.
  • Supports AHCI programming interface registers for the SATA controller.
  • Supports aggressive power management.
  • Supports error reporting, recovery, and correction.
  • Supports Message Signaled Interrupt (MSI).

SATA Features

Supports hardware RAID 0, 1, and 10, JBOD.

  • Supports SATA HDD & SSD.
  • Compliant with Serial ATA Specification 3.1.
  • Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
  • Supports programmable transmitter signal levels.
  • Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
  • Supports four SATA ports.
  • Supports AHCI 1.0 and IDE programming interface.
  • Supports Native Command Queuing (NCQ).
  • Supports Port Multiplier FIS based switching or command based switching.
  • Supports Partial and Slumber Power Management states.
  • Supports Staggered Spin-up.
  • Supports AES-256.
  • LR-LINK


HARDWARE

Model

LRST9630-4IR x1

Number of Device

4 internal

I/O Controller

MARVELL 88SE9230

Bus Type

PCI Express 2.0 x1

Compatible Device Types

4 SATA SSD

Interface

1* SFF-8087

RAID Level

RAID 0, 1, 10, JBOD

CONNECTOR(S)

Drive Connector

1* SFF-8087

Host Connector

PCIe 2.0 x1

ENVIRONMENTAL

Humidity

0% – 90%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

PCIe supply voltage

3.3V ±9%

Power dissipation

1W

PHYSICAL CHARACTERISTICS

Dimension

116mm*69mm

Product Weight

50g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

4.5oz [125 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express to SATA 3 Expansion Card

1 - low-profile bracket

1 - full-profile bracket (installed)
