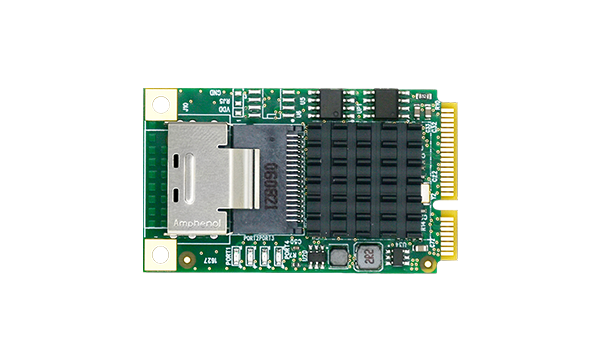

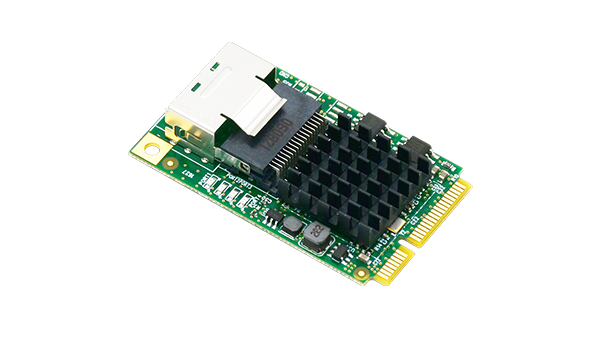

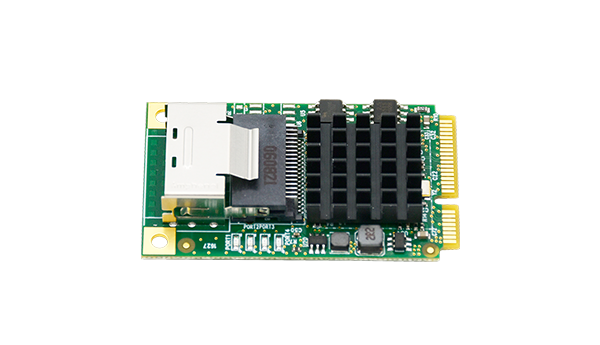

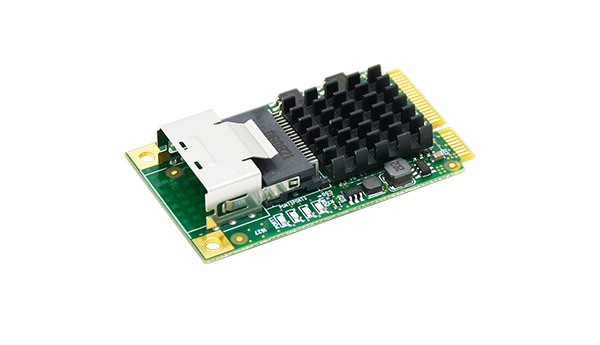

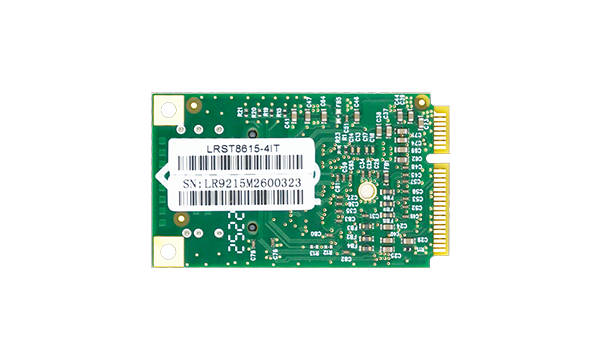

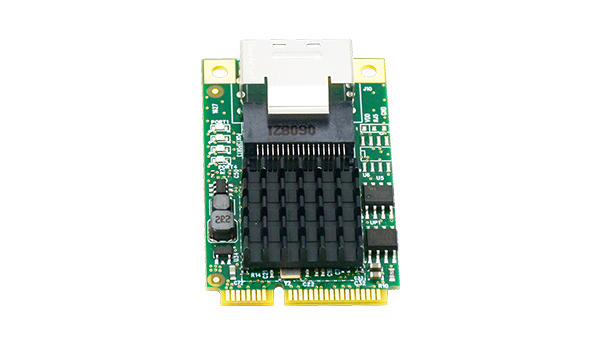

LRST8615-4IT

LRST8615-4IT 6Gb/s Mini PCIe to 4-Port SATA3 Expansion Card
Key Features
Product Model:LRST8615-4IT
Product Name:4 Port 6Gb/s Mini PCIe to SATA 3 Expansion Card
Chipset:Marvell 88SE9215
Interface Type:1*SFF-8087 Connector
Support Equipment:4*SATA SSD 6Gb/s
Host Bus Type:Mini PCIe

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRST8615-4IT is 4-port SATA III (6 Gbps) to MINI PCI Express Host Card Via MINI PCIE loads 4 SATA drivers.

Compliant with Serial ATA Specification 3.1.

Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

Supports programmable transmitter signal levels.

Supports 4 SATA ports.

Supports AHCI 1.0 programming interface.

Supports Native Command Queuing (NCQ).

Supports Port Multiplier FIS based switching or command based switching.

Supports Partial and Slumber Power Management states.

Supports Staggered Spin-up.

LR-LINK

HARDWARE

Model

LRST8615-4IT

Number of Device

4 internal

I/O Controller

Marvell 88SE9215

Bus Type

Mini PCI Express V2.0 x1

Compatible Device Types

4 SATA SSD

Interface

1*SFF-8087

CONNECTOR(S)

Device Connector

1*SFF-8087

Host Connector

Mini PCIe

ENVIRONMENTAL

Applicable Field

Server

Working Humidity

5% – 95%

Storage Temperature

0°C to 55°C (32°F to 131°F)

Power dissipation

<1W

PCI Express Voltage

3.3v

System Support

Windows, Linux, Mac

PHYSICAL CHARACTERISTICS

Dimension

30mm*51mm

Product Weight

7g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

3.0oz [86 g]

WHAT'S IN THE BOX

Included in Package

1 - Mini PCI Express to SATA Expansion Card

2 - Screw & Nut for SSD
