LRNV9541-4IR

PCIe3.0 x8 to Quad-port M.2 NVMe Adapter
Key Features
-Based on Marvell 88NR2241B0 main control development
-Conform to PCIe3.0 specification and compatible with PCIe1.0 /1.1 /2.0
-Supports PCle NVMe protocol
-Supports RAID 0, RAID 1, JBOD.
-High performance, non-blocking switching architecture, full wire speed on all ports
-Supports 2242, 2260, 2280,22110mm SSD;
-Supports high resolution graphics along with peer-to-peer transfer and multicast for maximum performance

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

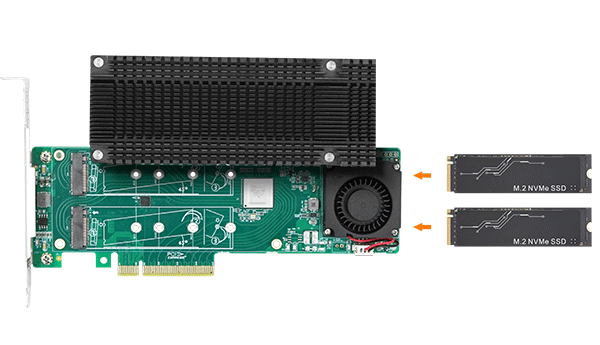

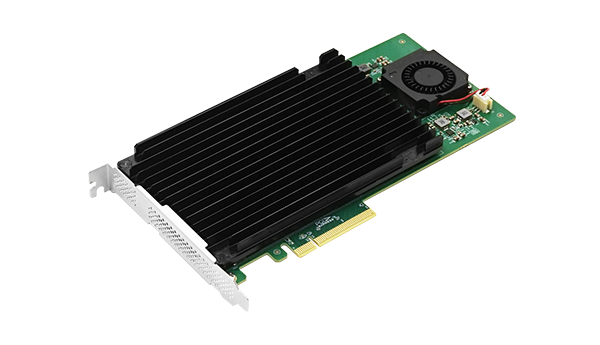

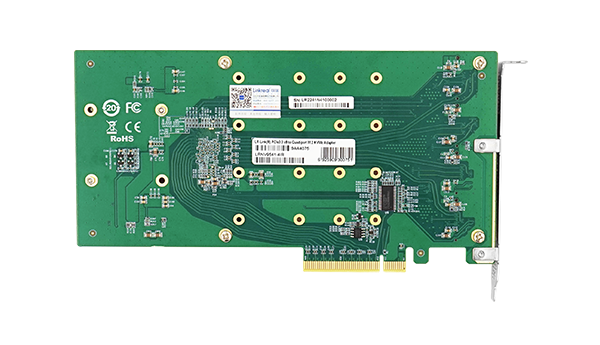

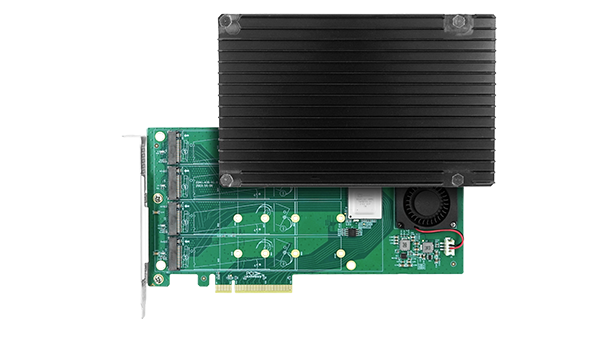

LRNV9541-4IR is a PCIe3.0 x8 to Quad-port M.2 NVMe Adapter developed on the Marvell 88NR2241B0 main controller solution. It extends the maximum storage space of four M.2 SSDs with scalable, high-bandwidth, non-blocking interconnections to connect to a variety of graphics applications, including servers, storage, communication and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for optimal performance; M.2 SSDs are applicable, high bandwidth, and the highest transfer speeds can be achieved while accommodating up to four SSDs at the same time. Suitable for host-centric peer-to-peer communication models, it can be configured for a variety of graphics applications.

After UEFI setting in BOIS, the card can be recognized to create Raid operation tutorial

After UEFI setting in BOIS, the card cannot be recognized to create Raid operation tutorial


Focus on M.2 NVMe Applications

Servers and workstations continue to expand into application fields such as film and television post-production, big data and AI.
These fields face problems as high security risks, slow data transmission, and limited storage space.

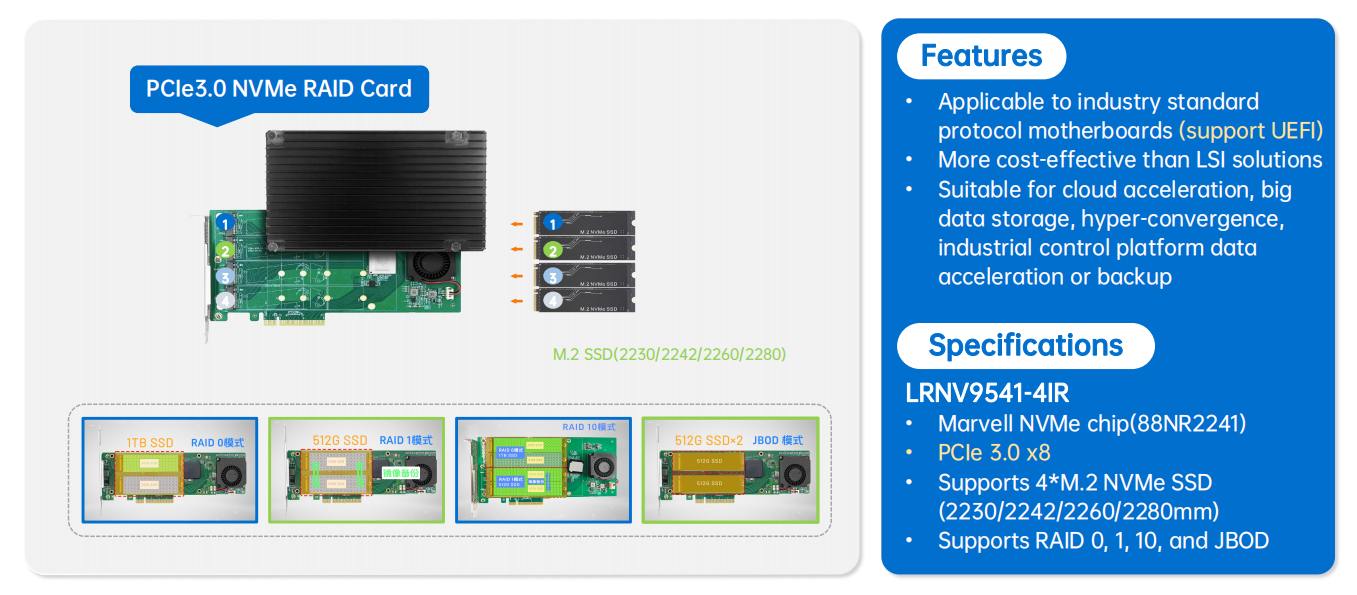

Supports Multiple Raid Modes





LR-LINK PCIe3.0 to 2P M.2 NVMe Adapter: LRNV9541-2IR


Specifications

Model

LRNV9541-4IR

Bus Type

PCIe3.0 x8

I/O Controller

Marvell 88NR2241B0

External Port

M.2

Interface

4

Transfer Speed

64Gbps

Power(min)

13.344W

Power(max)

19.32W

RAID

RAID 0, RAID 1, JBOD

Device Connector

4-M.2

Host Bus

PCIe x8, compatible with x16

Operating System Support

Windows 10 /11

Windows Server 2019 /2022

RHEL/Centos 7.6 /7.9 /8.2 /8.3

Deepin 15.11 /20 /20.6 /20.9

Ubuntu 18.04.5 /20.04.1 /22.04.2

SUSE 12.5

SUSE 15 SP4

ZTE New Fulcrum 3.2.2 /5.0.5

Asianux Server v7.0

Galaxy Unicorn v10

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Emind OS

OpenKylin 0.7.5

VMware ESXi 6./6.7 /7.0


Environment Features

Operating Temperature

5℃ - 50℃ (41℉ - 122℉)

Storage Temperature

-25℃ - 70℃ (-13℉ - 158℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS


Physical Characteristics

PCB Size(L x W x H)

209.46 x 110.38 x 1.6

Package Size(L x W x H)

222 x 147 x 28



Packing List

Bracket

Fitted with full height

Internet Network Adapter

*1

Product Warranty Card

*1

Packaging

Carton + ESD bag
