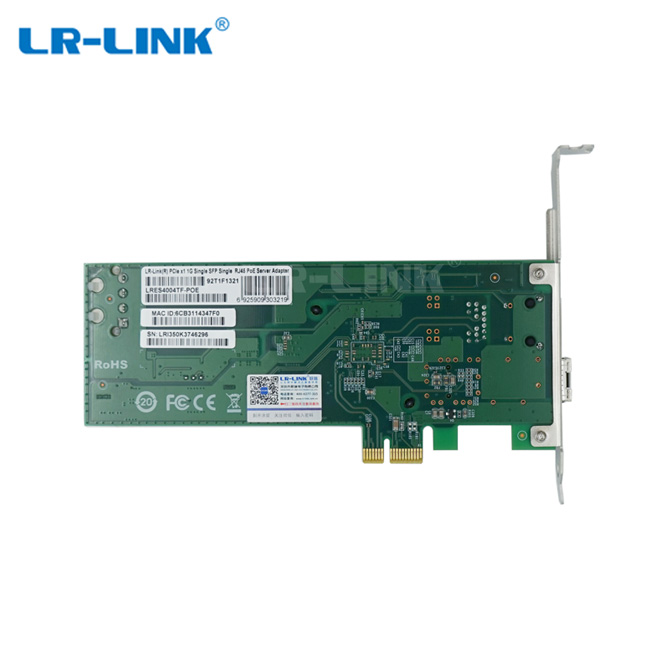

LRES4004TF-POE

PCIe x1 Dual-port Gigabit SFP & PoE+ Ethernet Network Adapter(Intel I350)
Key Features
1. Comply with IEEE 803.2at POE output standard; the maximum output is 30W, and it has automatic detection output: Class0, Class1, Class2, Class3, Class3.
2. The adapter card adopts a compact design, which is more suitable for industrial equipment;
3. Carefully selected RJ5 connectors with thickened and heavy gold to ensure more firm and reliable connectivity;
4. The mixed design of RJ45 & SFP can better save the precious PCIe slot resources of the motherboard.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES4004TF-POE is a PCI Express x1 dual port photoelectric hybrid PoE+ Gigabit ethernet image acquisition card independently developed by Linkreal Co., Ltd. on the basis of Intel master control scheme. It is compatible with the PCIe X8 and x16 channels. The design of the server adapter card is mainly used in industrial field visual inspection server and equipment, visual field client, fast mobile Ethernet data transmission equipment and other occasions that need optical fiber transmission at the same time, and it is also suitable for ordinary servers. At the same time, lres4004tf-poe allows personal computers to power VOIP phones or any other traditional copper powered device over the network.

The adapter card has integrated hardware acceleration function, and can perform TCP / UDP / IP verification and load sharing and TCP segmentation tasks. The host processing technology can load the accelerator, and the host processing technology can split the accelerator to release the occupation of CPU resources, so as to free up more CPU resources to process other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

Lres4004tf-poe is developed on the basis of Intel dual port Ethernet MAC + PHY (media access controller and physical interface transceiver) controller. Gigabit Poe working channel and Gigabit fiber working channel are independent of each other, and can be used flexibly with different fiber modules in different requirements. At the same time, it can also expand the bandwidth through link aggregation, which can save PCI express channel resources without occupying bus bandwidth.

PCIe x4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card: LRES2004PT-POE



                                                Specifications

Controller

Intel Chipset

Baffle Height

Half height & full height

Power Consumption

3.2W

PoE power

30W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x1,compatible with x4,x8,x16

Data rate supported per port

10/100/1000MbE + 1000MbE

Connector

1*8-Pin RJ45 + 1*SFP

                                             Technical Features

Protocol Support

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE802.3af -2003 PoE standard

IEEE802.3at -2009 PoE standard

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

No

FCoE

No


P/N

Description

LRES4004TF-POE

PCIe x1 Dual-port Gigabit SFP & PoE+ Hybrid Ethernet Network Adapter (Intel Chipset Based)


PS: Above details are only for reference, if there is any change,no prior notice.
