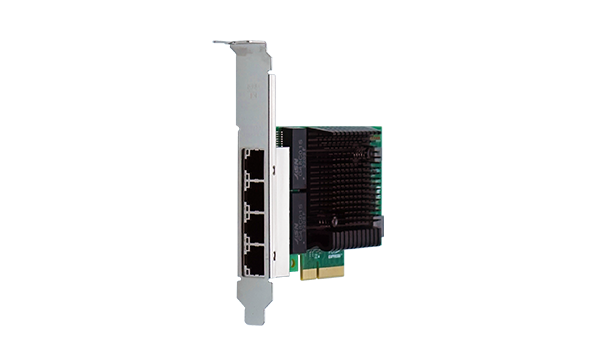

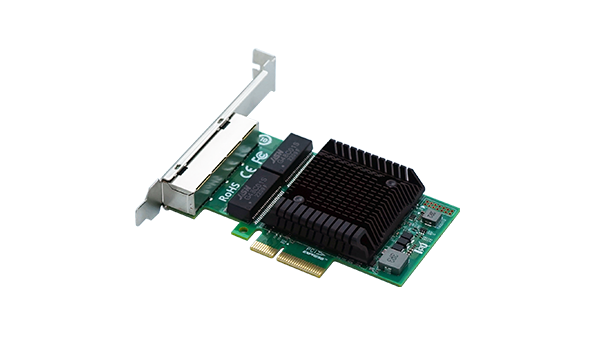

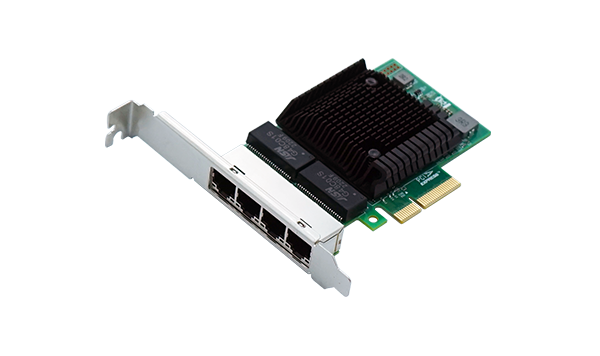

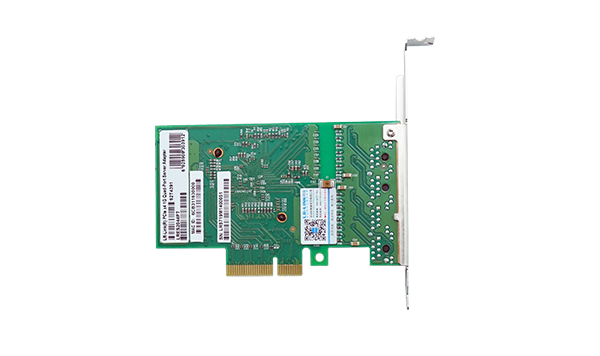

LRES2044PT

PCIe x4 Quad-port Gigabit Ethernet Network Adapter (Broadcom 5719)
Key Features
1. A four-port network adapter based on Broadcom master control scheme;
2. The adapter is mainly designed to be applied to servers and application devices, as well as ordinary servers;
3. It is suitable for virtualization, security, server consolidation, network segmentation and other network applications requiring high throughput and high-end port density.
4. the overall high throughput, can meet the demand of high bandwidth.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products
LRES2044PT is a four-port copper gigabit ethernet PCIe x4 ethernet network adapter, compatible with PCIe x8 and x16 channels, independently developed by Shenzhen Lianrui Electronics Co., LTD based on Broadcom 5719 chip. The adapter is designed for use on servers and other application devices, as well as regular servers.
The LRES2044PT adapter is ideal for virtualization, security, server consolidation, network fragmentation, and other network applications that require high throughput and high-end port density. The overall high throughput can meet the demand of high bandwidth. It also supports advanced features such as large send and receive offload, TCP checkand segmentation, VLAN marking, MSI-X, Jumbo frames and IEEE 1588, while supporting virtualization features such as VMware Net Queue and Microsoft VMQ.
The stateless uninstallation function supported by LRES2044PT can use host cpus for other tasks to optimize host efficiency and increase VM density. Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance requirements of consolidated virtual workloads.

Specifications

Controller

Broadcom 5719

Baffle Height

Half height and full height configuration

Power Consumption

*

System Support

Windows 7/8/8.1/10/11;

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2

Linux Stable Kernel version 2.6.x / 3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later;

Bus Type

PCIe x4

Data rate

10/100/1000MbE

Connector

4*8-Pin RJ45


Technical Features


Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

DPDK

Yes

Jumbo Frames

Yes

iSCSI

No

Jumbo Frames

Yes

WoL

No

FCoE

No



Companion Products

* Windows 7/8/8.1/10/11
* Windows 7/8/8.1/10/11;
* Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2;
* Linux Stable Kernel version 2.6.x / 3.x/4.x or later;
* Linux CentOS/RHEL 6.x / 7.x or later;
* Ubuntu 14.x/15.x/16.x or later;
* VMware ESX/ESXi 4.x/5.x/6.x or later

P/N

Description

LRES2044PT

PCIe x4 Quad-port Gigabit Ethernet Network Adapter (Broadcom 5719)


Remarks: The above information is for reference only and is subject to change without prior notice.
