Specifications
Model

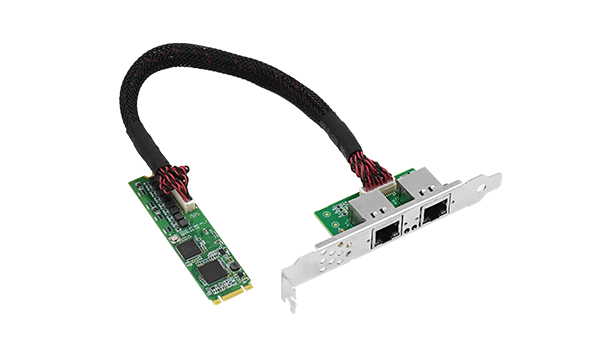

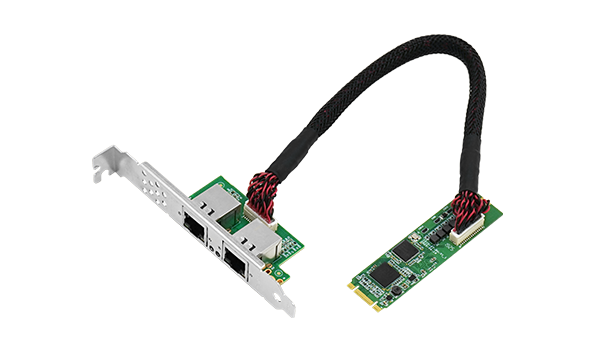

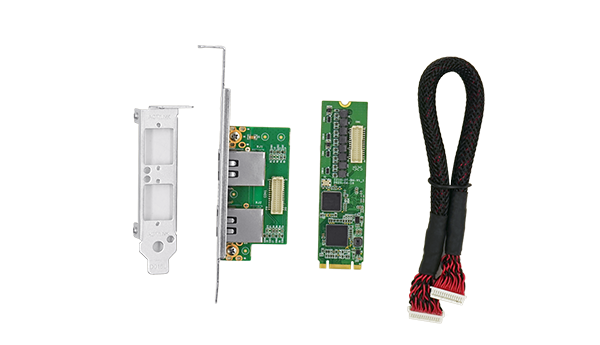

LRES2041PTI-2RJ45
Controller
Intel I210
Adapter Type
M.2 Ethernet Adapter
Form Factor
2280(M.2 B+M Key)
Host Connector
PCIe2.1 x1
Connectors
RJ45
Port
Dual
Link Speed
1000/ 100/ 10Mbps
Protocol Support
IEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T)
IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant IEEE 802.3 autonegotiation
IEEE 802.3x and IEEE 802.3z compliant flow control IEEE 1588 protocol and 802.1AS implementation
IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE/ UEFI
No
WoL
No
SR-IOV
No
1588 PTP
Yes
Jumbo Frames
9.2KB
LED Indicators
LED Type
Color/Behavior
Note
Speed
Off
10Mbps
Amber
100Mbps
Green
1000Mbps
Link/Activity
Off
No Link
Green
Link
Green(blink)
Link up(traffic flowing)
Supported Physical Layer Interfaces
|
Cabling |
CAT3 or higher for 10BASE-T CAT5 or higher for 100BASE-TX operation CAT5e or higher for 1000BASE-T operation |
Supported Operating System
|
Windows Windows Server Deepin RHEL/CentOS Ubuntu FreeBSD Fusion OS SUSE |
|
Kylin OS Neo Kylin OS NewStarOSt OpenKylin OS Debian VMwareESXi iKuai Routing OS UOS |
|
Rocky Fangde OS OpenEuler |
Technical Specifications
|
Operating Temperature |
-40°C to 85°C |
|
Storage Temperature |
-40°C to 85°C |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 °C |
|
Certification |
FCC,CE, RoHS |
|
PCB Size(Unit:mm) |
80*22 |
|
Package Size (Unit: mm) |
179* 150*30 |
|
Internet Network Adapter |
*1 |
|
Product Warranty Card |
*1 |
|
Packaging |
Carton + Anti-static bag |
