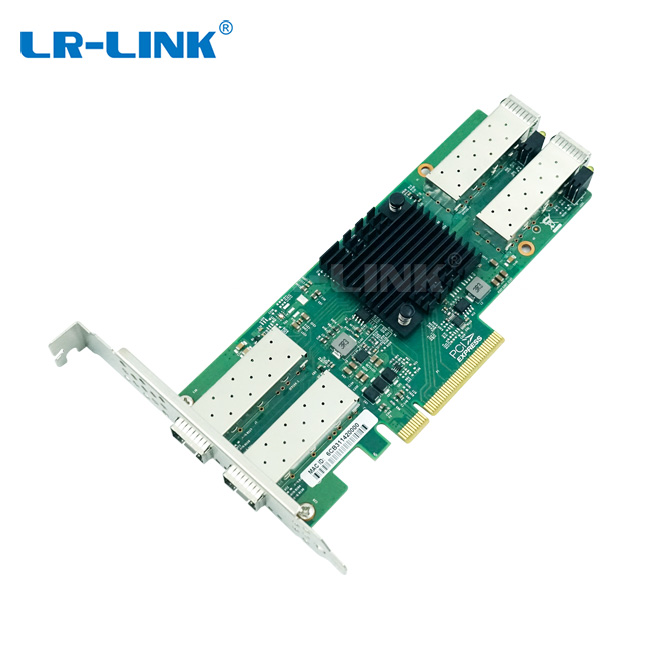

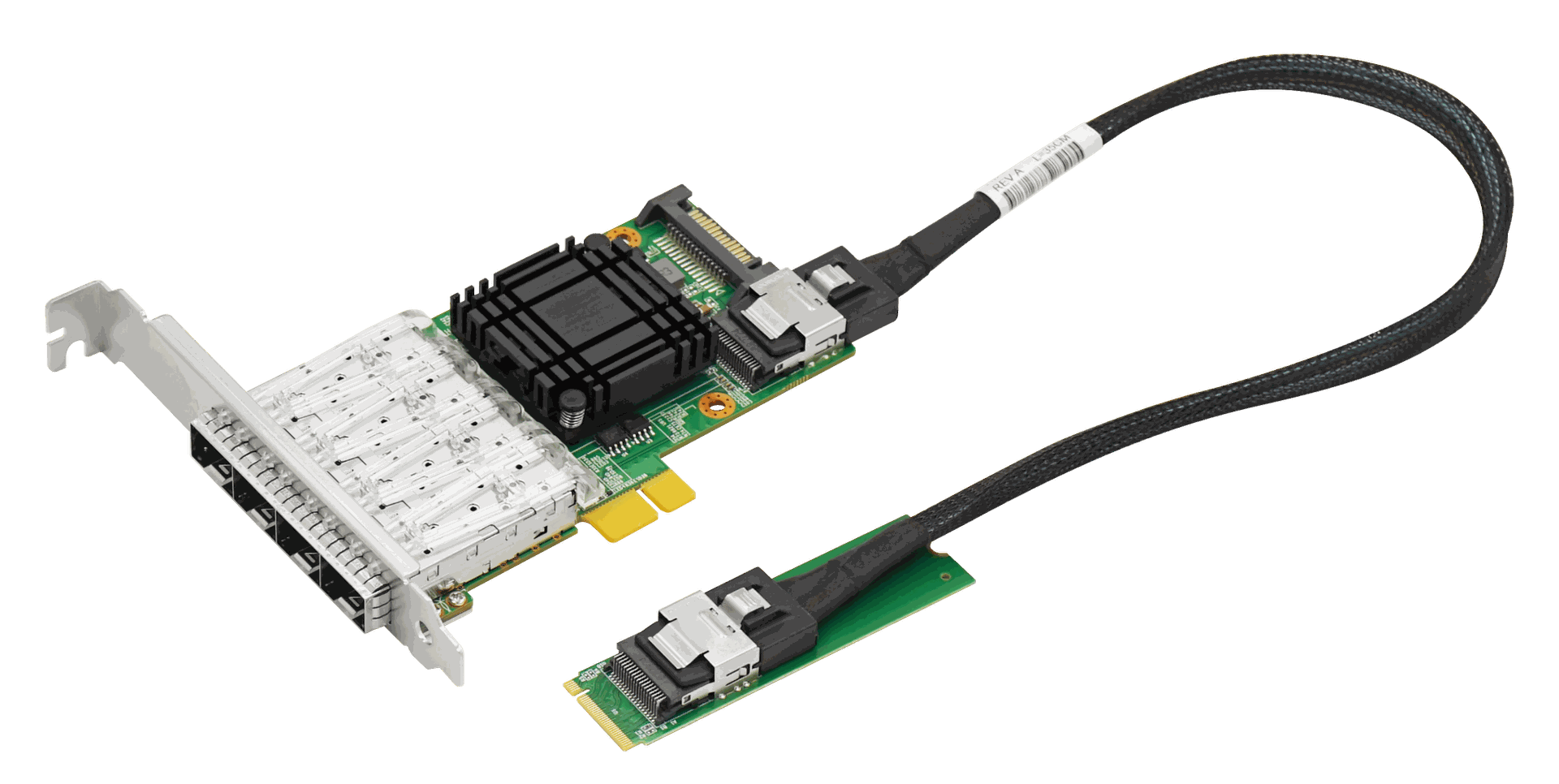

LRES2030PF-4SFP

PCIe x8 Quad-port Bidirectional 1G SFP Ethernet Network Adapter (Intel I350)
Key Features
•A four-port Gigabit SFP bidirectional optical Ethernet network card.
•Provides internal and external bidirectional connection interfaces for flexible application on multi-node device systems.
•It is easy to use in firewall, gateway and other equipment environments.
•This adapter card can be aggregated into groups through multiple ports.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2030PF-4SFP is a quad-port Gigabit SFP bidirectional optical Ethernet network card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel chip solution. The adapter card meets the needs of data transmission by providing unparalleled features for server and network virtualization, and provides an internal and external bidirectional connection interface, which is convenient for flexible application on multi-node device systems. The adapter card is in a flexible bidirectional four-port Gigabit fiber link, which is convenient for use in firewalls, gateways and other equipment environments.

The adapter card can simultaneously bundle and aggregate into multiple groups through multiple ports to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. It can implement real-time self-detection and route communication from the failed port to other devices in the same group Members continue to run to achieve uninterrupted high-performance communication. In addition to the stateless offload, the adapter card can also be distributed to the CPU core on network traffic, which improves network throughput. At the same time, you can also uninstall LSO and GSO from the host software to reduce the verification of CPU overhead and free up CPU resources to process other applications. The adapter card is an ideal solution for deploying multiple network nodes and deploying critical network applications and environments on high-performance servers.

The design of LRES2030PF-4SFP server adapter card has excellent performance in multi-processor systems. It is used to meet the needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data operations in the current and future long periods. When used with Microsoft's receiving end expansion or scalable I / O in Linux, the card can effectively balance the network load among multiple central processing units (CPUs).

                                  Specifications

Controller

Intel I350

Baffle Height

*

Power Consumption

6.0W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4x8 interface);

Data rate supported per port

1000M

Connector

4*SFP

                                 Technical Features

Protocol Support

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No




P/N

Description

LRES2030PF-4SFP

PCIe x8 Quad-port Bidirectional 1G SFP Ethernet Network Adapter (Intel Chip Based)






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
