LRES2026PF-SFP

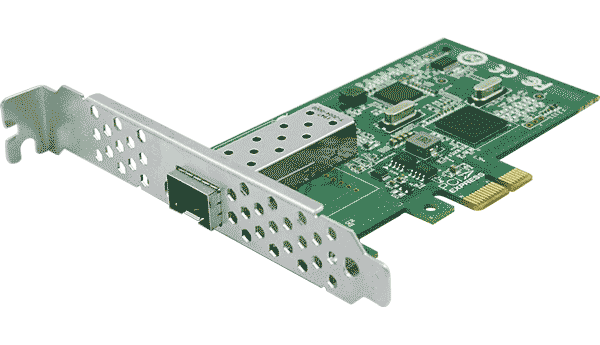

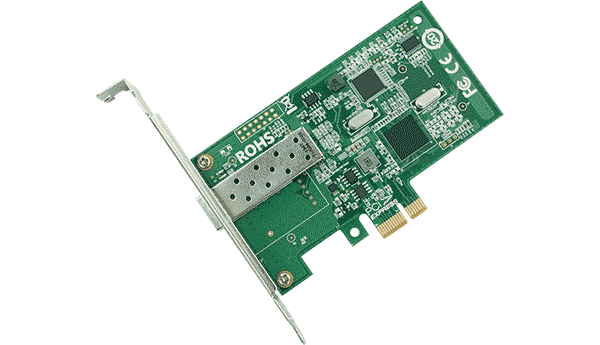

PCIe x1 Single-port 1G SFP Ethernet Network Adapter (Net-swift 1860)
Key Features
• Adopt the main controller designed and produced by Net-swift independently;
• PCIe v2.1 x1 single-port fiber gigabit ethernet network adapter;
• Widely used in fiber-to-desktop network communication, and can also be used on PC servers, embedded and other network devices;
• In terms of data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators, it has reached the industry level.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2026PF-SFP is a PCI Express v2.1 x1 single port gigabit ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Net-swift Chip. This adapter is compatible with PCIe x4, x8 and x16 and backward compatible with PCIe v1.1. The adapter card achieves a single-port two-way communication transfer rate with a theoretical throughput of 2G on a PCI Express v2.1 x1 bus.

The ethernet fiber network card with independent intellectual property rights (LRES2026PF-SFP) launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet MAC module. It is widely used in fiber-to-desktop network communication, and can also be used on PC servers, embedded and other network devices.

The main controller used by the optical fiber network card has China's independent intellectual property rights and independent controllability, which is of great significance for breaking foreign monopolies and ensuring information security.



                 Specifications


Controller

Net-swift chips

Baffle Height

Full height and half height

Fiber type

1000MBase-SX, 1000MBase-LX, 1000MBase-Cu

Power Consumption

2.5W

System Support

Windows 7/8.1/10/11

Windows Server 2008 R2/2012 R2/2016 R2/2019 /R2;

Linux SLES 11/12

CentOS / RHEL 6.6 ~ 7.7

Ubuntu 14.04/16.04/16.10

iKuai 3.6.4

Linx-tech V6.0.80

Bus Type

PCIe v2.1 x1

Data rate supported per port

1000MbE

Connector

1*SFP



                Technical Features


Standards compliant

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No






                 Specifications


Controller

Net-swift chips

Baffle Height

Full height and half height

Fiber type

1000MBase-SX, 1000MBase-LX, 1000MBase-Cu

Power Consumption

2.5W

System Support

Windows 7/8.1/10/11

Windows Server 2008 R2/2012 R2/2016 R2/2019 /R2;

Linux SLES 11/12

CentOS / RHEL 6.6 ~ 7.7

Ubuntu 14.04/16.04/16.10

iKuai 3.6.4

Linx-tech V6.0.80

Bus Type

PCIe v2.1 x1

Data rate supported per port

1000MbE

Connector

1*SFP



                Technical Features


Standards compliant

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No






P/N

Description

LRES2026PF-SFP

PCIe x1 Single-port 1G SFP Ethernet Network Adapter (Net-swift Chip Based)
