LRES1059PT

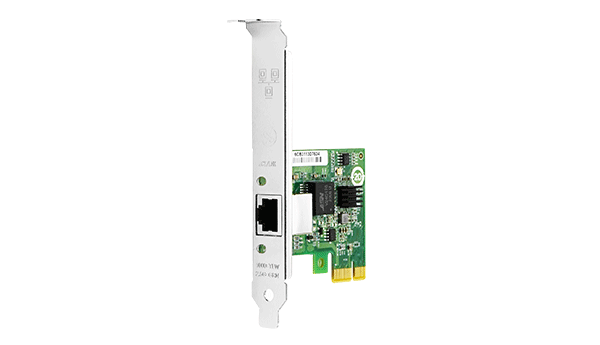

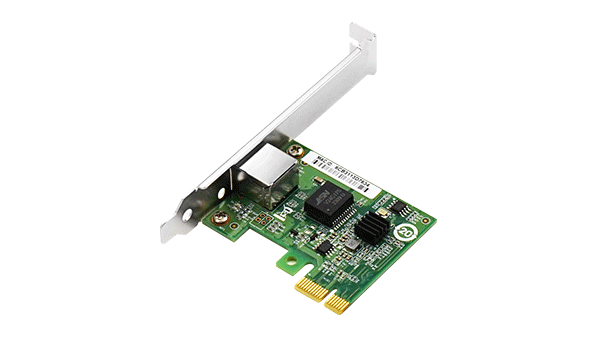

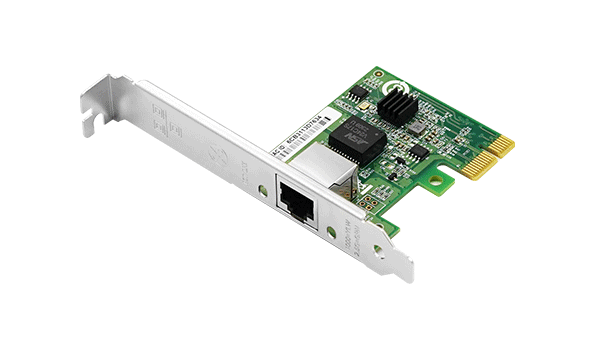

PCIe x1 2.5G Single-port Desktop Adapter (Intel KTI226V Based)
Key Features
-Support PCIe 3.1(5.0GT/s) x1;
-Support cross detection and automatic correction;
-Support IEEE 1588 PTP clock synchronization;
-Support 10/100/1000/2500Mbps network adaptation.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1059PT is a PCIe x1 2.5G Single-port Desktop Adapter developed by Linkreal Co., Ltd. based on Intel master control scheme. This adapter provides better network performance than gigabit network for high quality network requirements such as home network, home storage, online games and other applications. Solve in do not need to link but the use of gigabit can not be satisfied with the occasion.

By using the card to add a 2.5G speed network link port on the computer, to achieve faster than gigabit network speed, better cost-effective network card; It can be widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.

Model

LRES1059PT

Controller

Intel KTI226V

Cable medium

Copper

Fiber Type

NBase-T

Bracket Height

Low Profile & Full Height

Power (max)

2.0W

Bus Interface

PCIe v3.1 (5.0GT/s) x1; compatible with x4, x8, x16

Data rate per port

10/100/1000/2500Mbps

Connector

1*RJ45

Power Supply

PCIe

Operating System Support

* Windows 10

*Windows Server 2019/R2

*Linux Stable Kernel version 4.x or newer

* RHEL/CentOS 8.2/8.4 or newer

* Ubuntu 20.04 or newer

(*Not supported on AMD platforms)

PXE

No

WoL

Yes

Jumbo Frames

Yes

SR-IOV

No

IEEE 1588

Yes

UEFI

Yes

Jumbo Frame(max)

9.2KB

Protocol Support

IEEE 802.1bz 2500BASE-T Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x

10Mbps/100Mbps

Connection Status

Green Link

Transfer status

Green Blink

1Gbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Green Link

2.5Gbps

Connection Status

Green Link

Transfer status

Green Blink

Operating Temperature

0℃ to 70℃ (-32 ℉ to 158 ℉)

Storage Temperature

-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS
