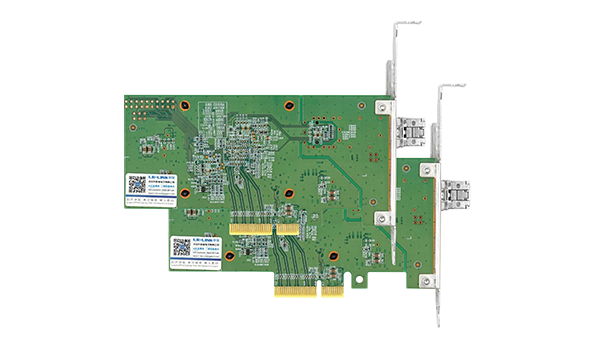

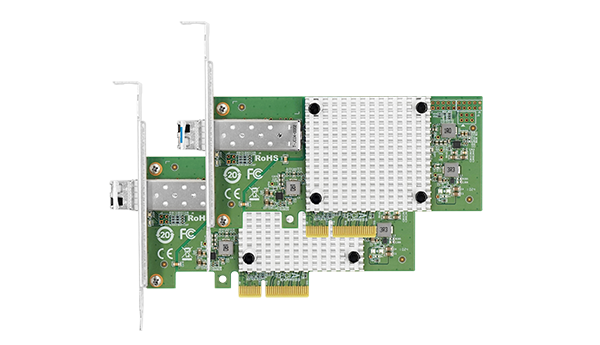

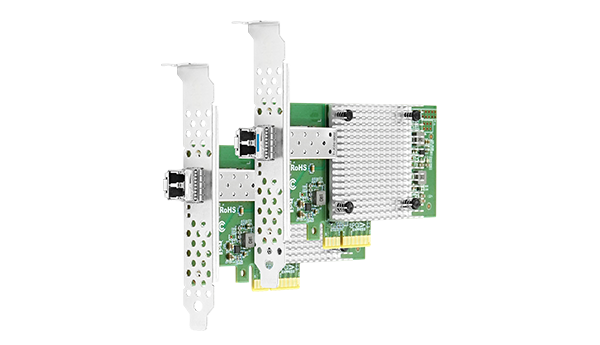

LRES1050PF-SFP+-TXRX

PCIe x4 10G Single-port Ethernet Network Adapter (mucse N400L-X4 Based)
Key Features
- Support PCIe Gen 2.0x4;
- Equipped with 1 10G SFP+ interface, supporting 1Gbps and 10Gbps data transmission rates;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1050PF-SFP+-TXRX is a PCIe2.0 x4 10G SFP+ single-port Ethernet network adapter developed by Linkreal Co., Ltd. based on the N400L-X4 master control scheme. It supports 1Gbps and 10Gbps data transmission rates, and is compatible with PCIe x8 and PCIe x16 slots. This adapter realizes 100% localization of materials and chips, improves the independent controllability of the product, and ensures the security and reliability of the product, in line with the national information security strategy requirements.It has rich and diverse functions, including network packet offloading, virtual SR-IOV application and PXE remote network start-up, etc., which meets the network needs in different scenarios.Whether in network security equipment, industrial application host, or in servers, desktops and embedded network devices and other fields, LRES1050PF-SFP+-TXRX can show its efficient, stable and reliable performance, providing users with excellent network connection experience.

Model

LRES1050PF-SFP+-TXRX

Controller

mucse N400L-X4

Cable medium

Optical fiber

Fiber Type

10G Base-SR10G Base-LR

Bracket Height

Low Profile & Full Height

Min Power(w)

4.152W

Max Power(w)

4.908W

Connector

1 * 10G SFP+

Bus Type

PCIe v2.0 (5.0GT/s) x4; x8, x16 compatible

Data rate per port

1G/10Gbps

Power Supply

PCIe

Protocol Support

IEEE 802.1P   IEEE 802.1Q   IEEE 802.2

IEEE 802.3ac  IEEE 802.3az  IEEE 802.3x

IEEE 802.3z   IEEE 802.3ad

PXE

Yes

WoL

No

UEFI

Yes

SR-IOV

Yes

1588 PTP

Yes

Jumbo Frames

9.5KB

System Support

RHEL/Centos7.6/7.9/8.2/8.3

Deepin 20/ 20.6/ 20.9(deepin)

Ubuntu 18.04.5/20.04.1

Ubuntu 22.04.2/22.04.3

ZTE New Fulcrum 3.2.2/5.0.5

Galaxy Unicorn v10

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS

OpenKylin 0.7.5

10G

Connection Status

Green Link + Green Link

Transfer status

Green Link + Green Blink

1G

Connection Status

Orange Link + Green Link

Transfer status

Orange Link + Green Blink

Operating Temperature

0℃ to 50℃ (32 ℉ to 122 ℉)

Storage Temperature

-40 ℃ to 85 ℃ (-40℉ to 185 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS
