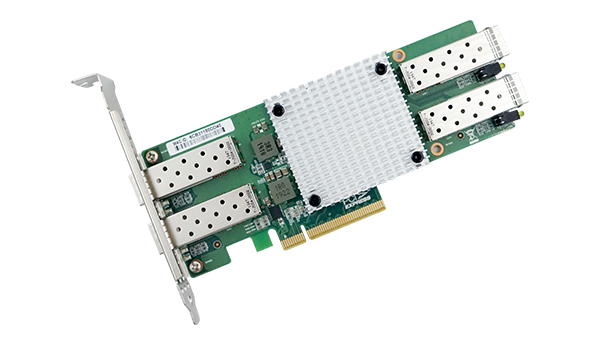

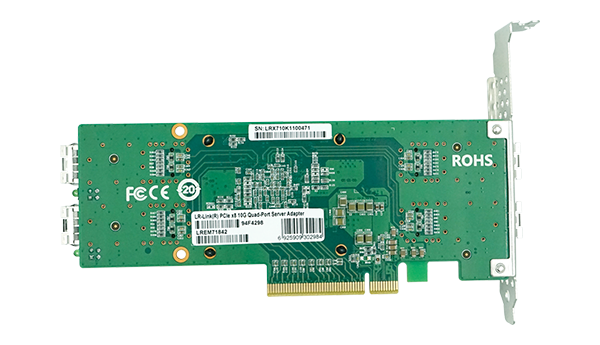

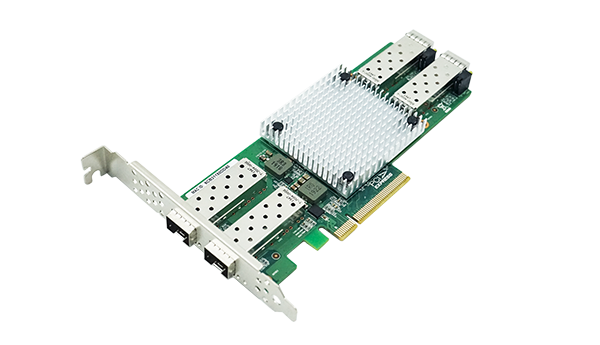

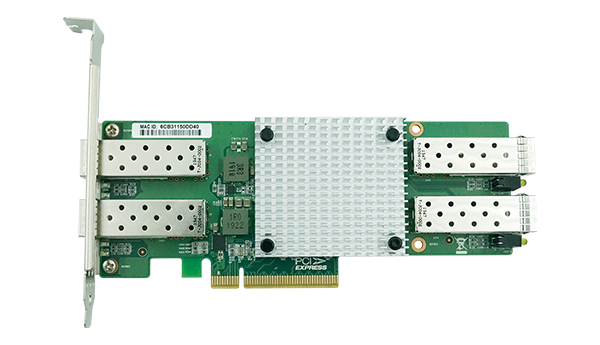

LRES1015PF-4SFP+

PCIe x8 Quad-ports Bidirectional 10G SFP + Ethernet Network Adapter (Intel XL710)
Key Features
•One provides inward and outward bidirectional 10G SFP + interface;
•Convenient to use in firewall, gateway and other equipment environments;
•This adapter card can be bundled and assembled into groups to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1015PF-4SFP+ is a four-port 10G bidirectional optical fiber Ethernet network card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel chip solution. The adapter card meets the needs of data transmission by providing unparalleled features for server and network virtualization. Provides internal and external bidirectional connection interfaces, which is convenient for flexible application on multi-node device systems, and provides reliable performance in flexible local area networks and SAN networks. The adapter card has a flexible two-way four-port 10GbE link rate, which is convenient for use in firewalls, gateways and other equipment environments.


The adapter card can simultaneously bundle and aggregate into multiple groups through multiple ports to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. It can implement real-time self-detection and route communication from the failed port to other devices in the same group Members continue to run to achieve uninterrupted high-performance communication. In addition to the stateless offload, the adapter card can also be distributed to the CPU core on network traffic, which improves the network throughput. At the same time, you can also uninstall LSO and GSO from the host software to reduce the verification of CPU overhead and free up CPU resources to process other applications. The adapter card is an ideal solution for deploying multiple network nodes and deploying critical network applications and environments on high-performance servers.


The design of LRES1015PF-4SFP+ server adapter card has excellent performance in multi-processor systems. It is used to meet the needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data operations in the current and future long periods. When used with Microsoft's receiver expansion or scalable I / O in Linux, the card can effectively balance the network load among multiple central processing units (CPUs).


            Specifications

Controller

Intel XXXX

Baffle Height

Half-height & full-height baffle

Fiber Type

10GBase-SR10GBase-LR10GBase-Cu

Power Consumption

7.4W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

CentOS / RHEL 6.x/7.x or later

Ubuntu 16.10 or later

Linux Kernel 4.x/5.x or later

VMware ESXi 5.x/6.x or later

Bus Type

PCI Express v3.0 (8.0GT/s) x8 , compatible x16

Data Rate per Port

10000MbE

Connector

4*SFP+



          Technical Features

Standards Compliant

IEEE 802.3ae 10GBase-X

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ad

IEEE 802.1Q VLAN

RDMA(RoCEiWARP)

No

iSCSI

Yes

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No

VMDqSR-IOV

Yes




P/N

Description

LRES1015PF-4SFP+

PCIe x8 Quad-ports Bidirectional 10G SFP + Ethernet Network Adapter (Intel Chip Based)






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
