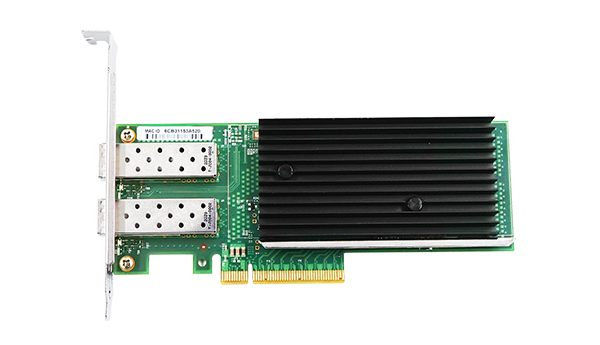

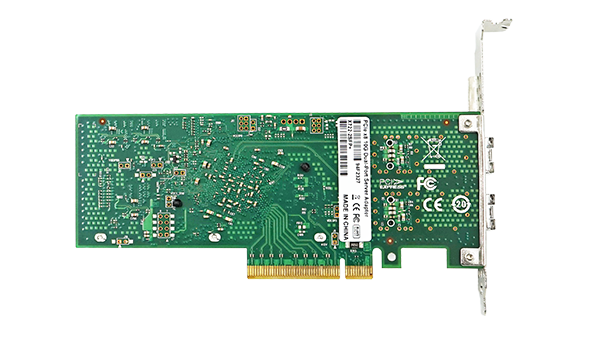

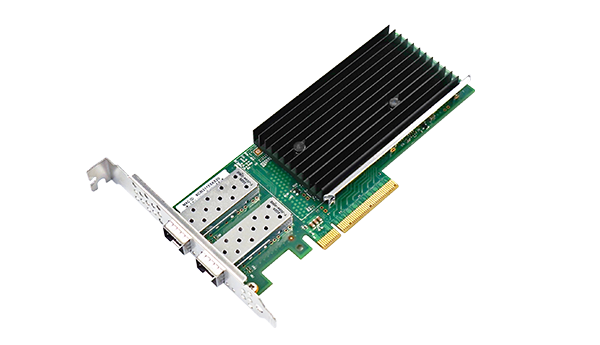

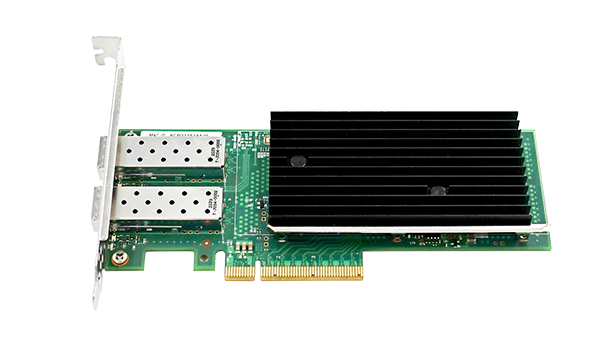

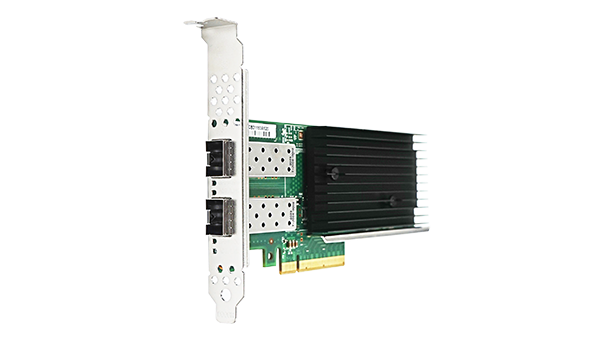

LRES1010PF-2SFP+

PCIe x8 Dual-port 10G SFP+ Ethernet Network Adapter (Intel Chip Based)
Key Features
·iWARP RDMA Support;
·Dual SFP+ Connectivity;
·PCI Express (PCIe) v3.0 (8.0GT/s) x8 lanes;
·Network Virtualization offloads:VXLAN,GENEVE,and NVGRE;
·Boot support (PXE, UEFI, iSCSI);
·DPDK optimized for efficient packet processing.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1010PF-2SFP+ is PCI Express v3.0 x8 dual port 10G SFP+ Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel master control scheme. The adapter can realize high throughput, low latency working network and low CPU utilization, which is suitable for big data transmission applications with large capacity fusion network. The adapter is compatible with PCIe v2.1/v2.0/v1.1 on a PCI Express v3.0 x8 slot, and can achieve the transmission rate of dual-port full-duplex throughput with efficient RDMA capabilities.

The Ethernet fiber-optic Network Card has iWARP's RDMA technology, host unloading, host bypass, and other technologies to support low-latency, high-throughput, direct-memory-to-memory data transfer communications between applications on the network.

This adapter can support different ports using different network protocols, such as iWARP or Ethernet, and can support high-quality data transmission at the same time, which has more resource saving advantages on big data traffic systems.

LRES1010PF-2SFP+ supports iWARP because iWARP is based on the TCP/IP protocol and is highly scalable, providing a wide range of interoperability, critical performance optimization, and flexibility for telecommunications, cloud, and enterprise IT. Therefore, it becomes the project proposal of the super fusion storage solution in data transmission.

In the use of RDMA functions to speed up real-time migration performance and other applications, it can greatly reduce the time, CPU utilization and other adaptive load balancing, to reduce the risk of data loss, and reduce the cost of installation, operation and maintenance.

                                        Specifications



Controller

Intel Chip

Baffle Height

Full height & half height

Fiber Type

10GBase-SR10GBase-LR10GBase-ER

10GBase-ZR10GBase-LRM10GBase-Cu

Power Consumption

13.6W

System Support

Windows 7

Windows 8/8.1

Windows 10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

CentOS / RHEL 7.4 or later

Ubuntu 16.10 or later

Linux Kernel 4.x/5.x or later

VMware ESXi 6.x or later

Bus Type

PCI Express v3.0 (8.0GT/s) x8 , compatible x16

Data Rate per Port

10000MbE

Connector

2*SFP+




                                      Order Information

P/N

Description

LRES1010PF-2SFP+

PCIe x8 Dual Port 10G SFP+ Ethernet Network Adapter (Intel Chip Based)



                                                                             PS: Above details are only for reference, if there is any change,no prior notice.






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
