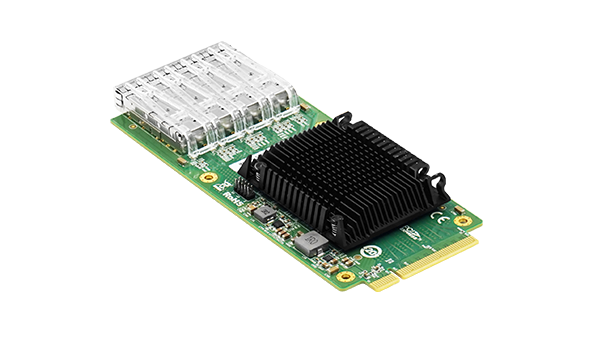

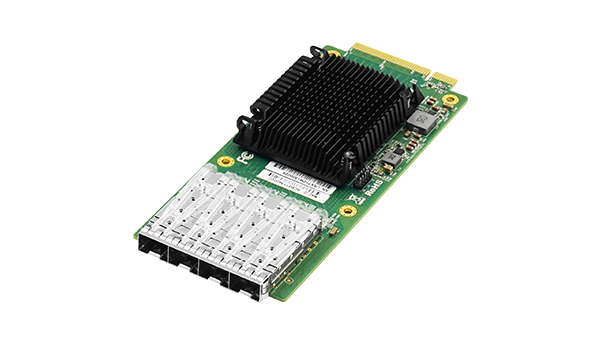

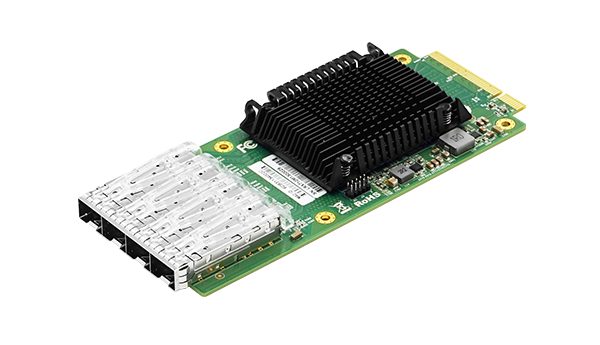

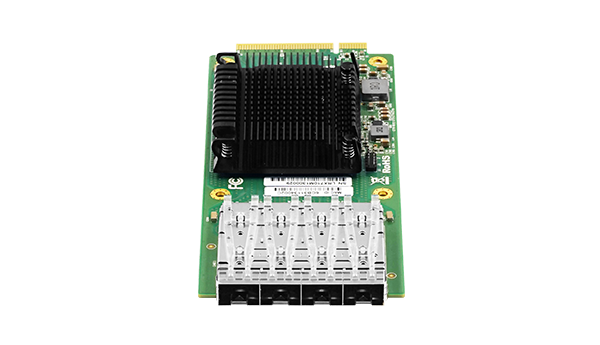

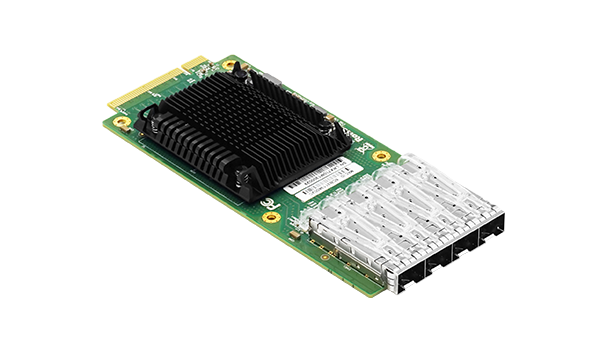

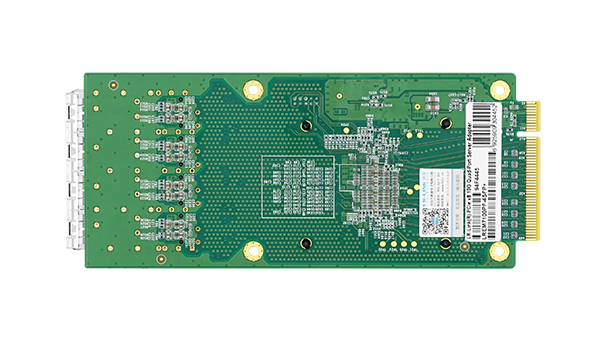

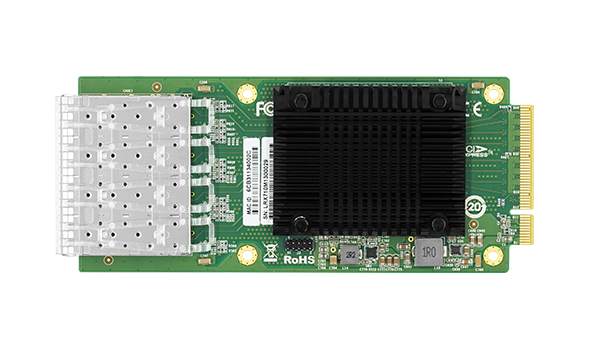

LREM7100PF-4SFP+

PCIe x8 Quad-port 10G SFP + Mezzanine Ethernet Network Adapter (Intel XL710)
Key Features
1、Quad-port 10G mezzanine fiber ethernet network card.
2、Convenient to use in firewall, gateway and other equipment environments.
3、It can achieve fault tolerance and redundancy through bundling and aggregation into groups to ensure network performance and expand network bandwidth.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREM7100PF-4SFP+ is a four-port 10G SFP + mezzanine fiber ethernet network card developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel XL710 chip solution. The adapter card meets the needs of next-generation data centers by providing unparalleled features for server and network virtualization. Provide reliable performance in flexible LAN and SAN networks. The adapter card has a flexible quad-port 10GbE link rate and is convenient for use in firewalls, gateways, and other device environments.

This adapter card can be bundled and aggregated into groups through multiple ports to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. It can implement real-time self-detection and route communication from the failed port to other members of the same group Run for uninterrupted high-performance communication. In addition to the stateless offload, the adapter card can also be distributed to the CPU core on network traffic, which improves network throughput. At the same time, the LSO and GSO are uninstalled from the host software, thereby reducing the verification of CPU overhead. Free up CPU resources to handle other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers. The adapter card is based on the Intel Intel XL710 Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) quad-port controller.

The design of LREM7100PF-4SFP+ server adapter card has excellent performance in multi-processor systems. It is used to meet the needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data operations in the current and future long periods. When used with Microsoft's receiving end expansion or scalable I / O in Linux, the card can effectively balance the network load among multiple central processing units (CPUs).

Specifications


Controller

Intel XL710

Baffle Height

*

Fiber Type

10GBase-SR10GBase-LR10GBase-Cu

Power Consumption

7.4W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

CentOS / RHEL 6.x/7.x or later

Ubuntu 16.10 or later

Linux Kernel 4.x/5.x or later

VMware ESXi 5.x/6.x or later

Bus Type

PCI Express v3.0 (8.0GT/s) x8 , compatible x16

Data Rate per Port

10000MbE

Connector

4*SFP+

Technical Features


Standards Compliant

IEEE 802.3ae 10GBase-X

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ad

IEEE 802.1Q VLAN

RDMA(RoCE、iWARP)

No

iSCSI

Yes

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

No

FCoE

No

VMDqSR-IOV

Yes


Order Information

P/N

Description

LREM7100PF-4SFP+

PCIe x8 Quad-port 10G SFP + Mezzanine Ethernet Network Adapter (Intel XL710 Based)



PS: Above details are only for reference, if there is any change,no prior notice.
