LREC9020PF-LX is 100Mbps PCIe fiber optic NIC card, it is ideal for government, education or other networks with high security requirements, Designed for fiber-to-desktop networks that need secure and reliable systems. Users can select the optical interface parameters (including connectors,single-mode/multi-mode fiber, working distance, etc) according to occasion. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems.
The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.
|
Controller |
RTL 8105 |
|
Transmission rate per port |
100M |
|
Network Standard Physical Layer Interfaces |
100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
|
100BASE-LX: 10Km at 9µm |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55 °C (32 °F to131 °F) |
|
Network Virtualization |
VXLAN, MACinUDP, NVGRE, IPinGRE |
|
LED Indicators OPERATION |
|
|
OperatingSystem Support |
Windows Server 2016 R2/2012 R2/2012/2008 R2 |
|
Windows 7 x64/8/8.1/10 |
|
|
Linux Stable Kernel version 2.6.32/3.x/4.x or newer |
|
|
MAC OS 10.4/10.5/10.6/10.7/10.13 |
|
Model |
Description |
|
LREC9020PF/9020PF-LX |
RTL8105 Based PCIe x1 100Base-FX Single Port Fiber Desktop Adapter (1XSC SM/MM) |
|
LREC9020PF-ST |
RTL8105 Based PCIe x1 100Base-FX Single Port Fiber Desktop Adapter (1XST MM) |
|
LREC9020PF-BIDI |
RTL8105 Based PCIe x1 100MBase-FX Single Port Fiber Desktop Adapter (1xBIDI SC SM) |
|
LREC9020PF-SFP |
RTL8105 Based PCIe x1 100MBase-FX Single Port Fiber Desktop Adapter (1xSFP) |
|
LREC9020PF-LC |
RTL8105 Based PCIe x1 100MBase-FX Single Port Fiber Desktop Adapter (1x LC SFP SM modules including) |
|
LRGP8512-X5ATL |
1.25Gbps SFP Multi-Mode Transceiver |

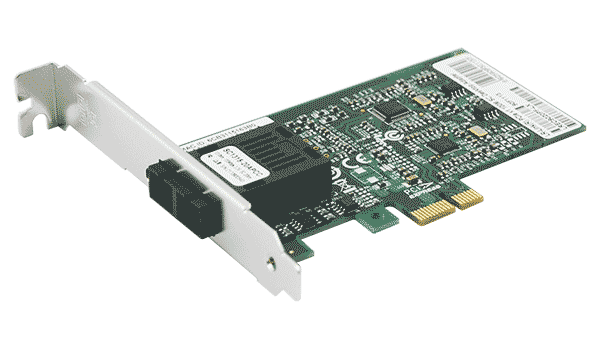

PCIe 100M Single-mode SC Connector Fiber Card (RTL8105E Based)
 3.jpg)

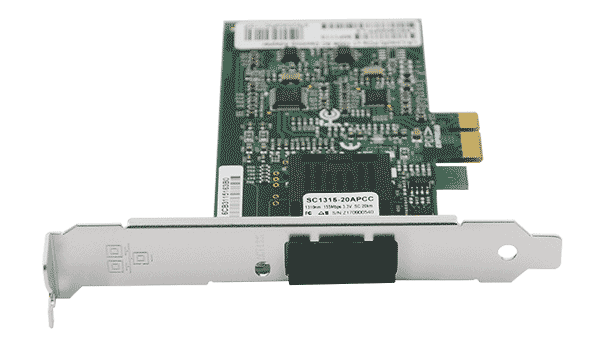

PCIe 100M Single-mode SC Connector Fiber Card (RTL8105E Based)

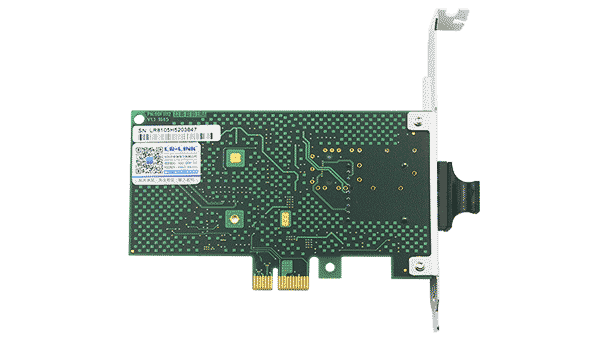

PCIe 100M Single-mode SC Connector Fiber Card (RTL8105E Based)
4.jpg)
PCIe 100M Single-mode SC Connector Fiber Card (RTL8105E Based)
