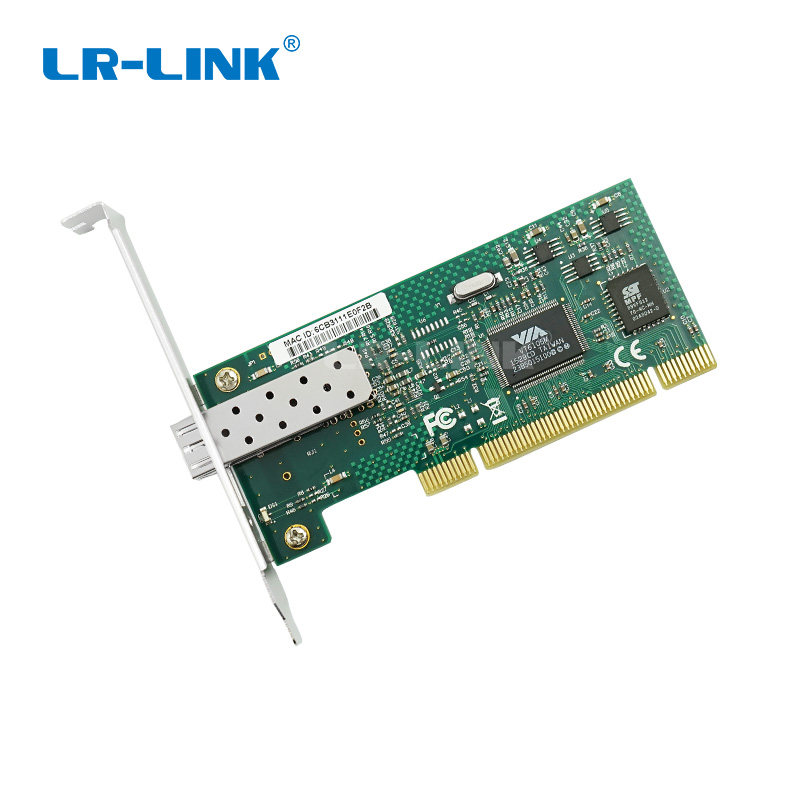

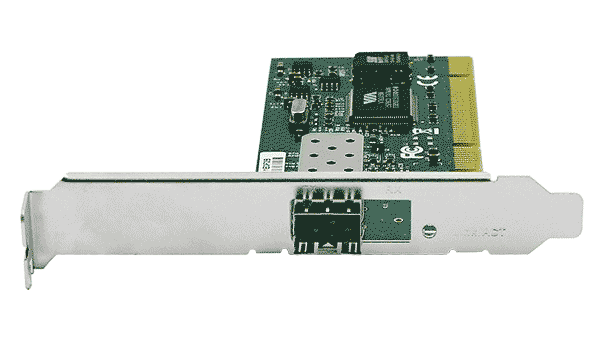

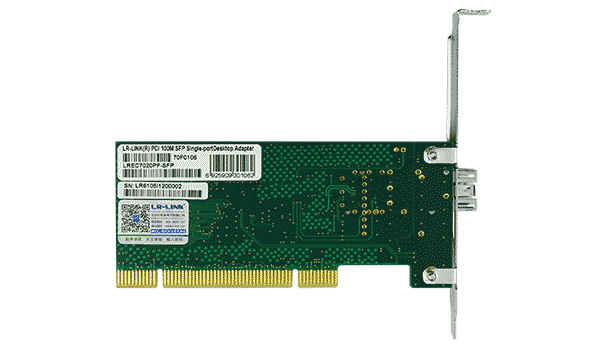

LREC7020PF-SFP are a PCI 2.2 100Mbps Single Port Ethernet Fiber Desktop Adapter based on VT6105 Chipset. This optical fiber Ethernet adapter is widely applied on various occasions of Fiber To The Desktop(FTTP).n
The Adapter with high data security, high reliability, stability and compatibility, has been widely used in the secret industries, such as prosecution, courts, police and military industrial enterprises etc. It can completely replace the Ethernet card external photoelectric conversion of the network structure of the commonly used RJ-45, to provide users with reliable fiber-to-the-home and fiber-to-the-desktop solutions. Users can select the optical interface parameters (including connectors, single / multi-mode fiber, working distance) according to the distance.
|
Controller |
VIA VT6105 |
|
Connector |
SFP LC (Fiber) |
|
Transmission rate per port |
100Mbps |
|
Network Standard Physical Layer Interfaces |
100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm |
|
100BASE-LX: 10Km at 9µm |
|
|
Operating Temperature |
0°C to55 °C (32 °F to 131°F) |
|
LED Indicators OPERATION |
Link/Activity LED: off = No Link; on = Link; Blinking = Activity |
|
Operating System Support |
Windows Server2000/2003 64-bit /XP/ Vista/7/8/10/ |
|
DOS /Ubuntu pre 8.04/9.04/ 9.10/10.04 /SuSE Linux Enterprise 11 /Kernel 2.6.19.X/ |
|
|
Fedora Core 1.0 Linux /2.0/3.0/4.0/5.0/6.0/7.0/8.0/11.0 /Red Flag Linux, Red Hat Linux |
|
|
OpenUNIX 8.0 (Caldera)/openSuSE Linux 10.3 & earlier versions, /FreeBSD versions 4.x, 5.x, 6.x and 7.0./Mandrake/Mandriva pre-2006/2006/2007/2007.1/2008 Linux |
|
Model |
Description |
|
LREC7020PF/7020PF-LX |
VT6105 Based PCI 100Base-FX SC Port Fiber Desktop Adapter (1 x SCMM or SM) |
|
LREC7020PF-ST |
VT6105 Based PCI 100Base-FX ST MMPort Fiber Desktop Adapter (1x ST) |
|
LREC7020PF-BD |
VT6105 Based PCI 100Base-FX SC Port BIDI Fiber Desktop Adapter (1x SC BIDI) |
|
LREC7020PF-SFP |
VT6105 Based PCI 100Base-FX SFP Port Fiber Desktop Adapter (1x SFP) |
|
LREC7020PF-LC |
VT6105 Based PCI 100Base-FX LC Port Fiber Desktop Adapter (1 x LC MM module including) |
|
LRFP1315-02ATL |
SFP Duplex 155Mbps 3.3V Multi-Mode Transceiver 2KM |
|
LRFP1315-20ATL |
SFP Duplex 155Mbps 3.3V Single-Mode Transceiver 20KM |
PS: The above details are only for reference,if there is any change,no inform will have.
