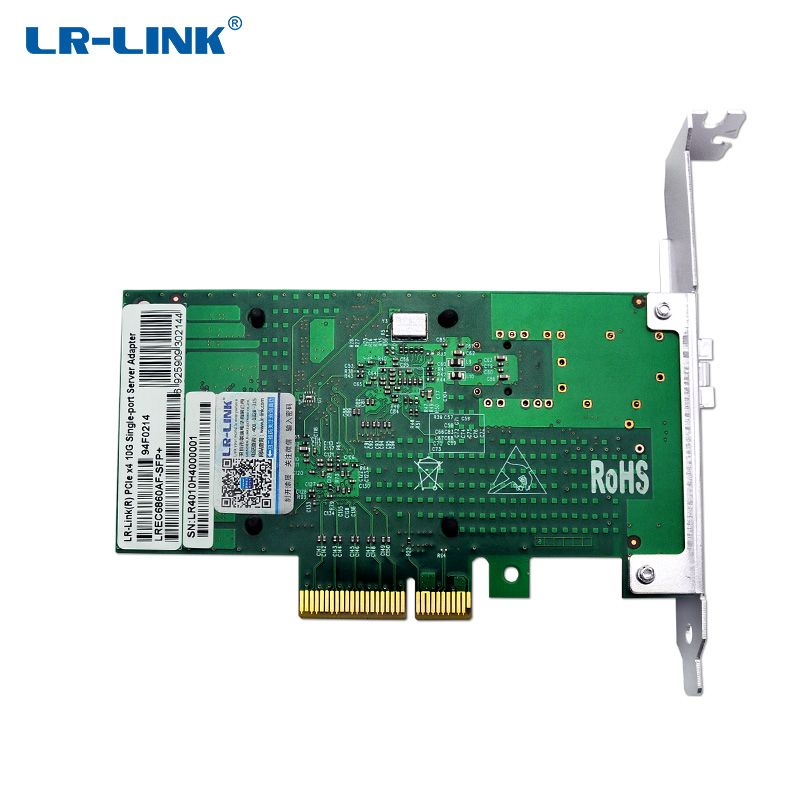

LREC6860AF-SFP+

10Gbps PCIe x4 SFP+ Port Network Card(Tehuti 4010 Based)
Key Features
Single Port 10GbE Adapters
PCI Express (PCIe) v2.0, 5.0 GT/s, x4 lanes
SFP+ Connectivity
PXE boot
Support IEEE 802.3az Energy Efficient Ethernet
Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products
LREC6860AF-SFP+ is a PCI Express x4 10Gbps Single Port SFP+ Ethernet Fiber Server Adapter based on Tehuti TN4010B0 chipset, and also support PC use(FTTD),independently developed by Shenzhen Lianrui Electronics CO.,Ltd. LREC6860AF-SFP+ performance has been optimized and improved with the development of design. System I , O is no longer the bottleneck of network applications. The adapter adapts to form a group by bundling for fault tolerance and automatically detects and enables routing of traffic from the failed port to other members of the same group for continued uninterrupted communications. The adapter has integrated hardware acceleration to perform TCP , UDP,IP checksum offload and TCP segmentation tasks. Host processing technology can sub-load accelerator,release CPU resources occupied to free up more CPU resources to handle other applications.
LREC6860AF-SFP+ can be used in 10Gigabit ethernet directly in 10Gigabit network environmental, support different 10G SFP+ transceiver to long distance transmission.PCI Express dedicated input ,output (I,O) bandwidth to ensure the network card to use the superior performance without taking up bus bandwidth.

LREC6860AF-SFP + is a single-port 10 Gigabit fiber Ethernet adapter that is equipped with integrated SFP + connector. Users can directly use different 10Gb modules or 10Gb copper cables according to the usage scenarios. The adapter uses Tehuti TN4010B0 server controller with high performance, high stability, high quality and good compatibility, compatible with all brand-name computers and 10 Gigabit fiber switches, which is the deployment of high-performance 10 Gigabit Ethernet to the desktop and 10 Gigabit fiber application ideal solution.

Features

Controller

Tehuti TN4010B0

Fiber inter-medium

10G SFP+ DAC,10G SFP+ AOC

Fiber Types

10GBASE-SR,10GBASE-LR,10GBASE-ER,10GBASE-ZR,10GBASE-ZW,

Bracket

Low Profile Bracekt and Full-height Bracket

Power dissipation

3W

Operating system support

Windows Server 2016 R2

Windows Server 2012 R2

Windows Server 2012

Windows Server 2008 R2

Windows Server 2008

Windows 10

Windows 8.1

Windows 7

Linux Stable Kernel version 3.x,2.6,x

Red Hat Enterprise Linux 5,6

SUSE Linux Enterprise Server 10,11

FreeBSD 9

Connector

1 X 10G SFP+ connector

Interface Standard

PCI Express v2.0 (5.0GT s) x4；compatible with x8与x16

Connector Rate

10000 Mbps (SFP+)

Power

powered by PCIe +3.3V±9%

Technical Features

Ethernet Power Management

Yes

IEEE Standard

IEEE 802.3ae

IEEE 802.1Q VLAN
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Priority Queuing

PXE

Yes

WOLE

No

Environment Features

Operating Temperature

0°C to 55 °C (0°F to 131°F)

Storage Temperature

-40℃to 85℃(-40℉to 185℉)

Operating Relative Humidity

non condensing under35℃

Certificate

FCC CE

LED Indicators

Link LED green，ACT green=10000Mbs

Driver

Windows driver download


Windows

TN9610 10GbE SFP+ Ethernet Adapter

Linux driver download


Linux

Tehuti Networks Ltd. TN9610 10GbE SFP+ Ethernet Adapter

Testing Report

Server User Configuration

CPU：INTEL Xeon E3-1230 V2  3.30GHz

Motherboard：INTEL S1200BTL

RAM：Kingston 4 GB DDR3-1333 DDR3

OS：Centos 7.2

TCP Bandwidth Throughput Testing

Test topology：S-C

Server：iperf -s

Client：iperf -c 192.168.1.200 -P 5 -i 5 -t 60


Different packet length unidirectional transmit&receive bandwidth test

Data packet length（byte）

Transmit Rate(Mb S)

Receive Rate(Mb S)

64

560

560

128

1064

1064

256

2200

2200

512

4488

4488

1024

8552

8552

1440

9376

9376

Measured Latency

Data packet length (byte)

TCP Latency

UDP Latency

32

99us

99us

Physical Features

PCB Dimension(mm)

116mm X 67.6mm X 1.6mm

Weight (g)

83g



Model

Description

Noted

LREC6860AF-SFP+

PCIe x4 Single Port SFP28 Fiber Server Adapter

Based onTehuti TN4010B0, 3U/2U bracket
