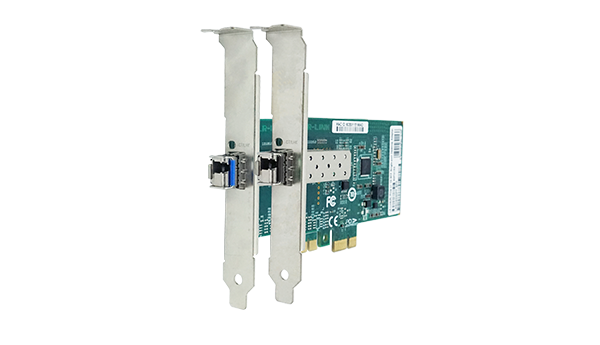

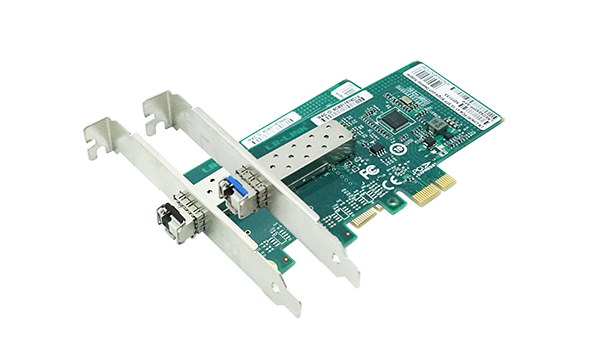

LREC6230PF-TXRX

PCIe x1 1G One-way Transmission Ethernet Network Adapter (Intel I210 Based)
Key Features
•A unidirectional transmission fiber gigabit Ethernet PCIe x1 adapter:
•The one-way transmission of data is adopted, and the data is safer.
•With high performance, high stability, high quality and very good compatibility.
•One-way transmission and one-way reception are used together.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC6230PF-TXRX is a one-way fiber gigabit Ethernet PCI Express x1 desktop adapter developed independently by Shenzhen Lianrui Electronics Co., Ltd. based on Intel I210 solution.  While developing and designing this optical network card, its performance has been optimized and improved so that system I/O is no longer the bottleneck of network application.  This adapter card has integrated hardware acceleration function and can perform TCP/UDP/IP checksum offloading and TCP segmentation tasks.  Host processing technology can offload accelerators, and host processing technology can offload accelerators to free up CPU resources to process other applications.  At the same time, due to the adoption of one-way data transmission, data is safer.

LREC6230PF-TXRX is a single-port one-way transmission fiber adapter card with INTEL I210 controller, which has high performance, high stability, high quality and very good compatibility.

LREC6230PF-TXRX is divided into TX and RX for use, and is used in combination with unidirectional transmission and unidirectional reception.

                  Specifications

Controller

Intel I210

Baffle Height

Full height and half height

Power Consumption

2*1.0W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2;

Linux Stable Kernel version 2.6.32/3.x/4.x or later;

Linux CentOS/RHEL 6.5 / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

Mini PCIe

Data rate supported per port

1000Mbps

Connector

1*1G TX SFP interface + 1*1G RX SFP interface

                Technical Features

Standards compliant

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

YES

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No


P/N

Description

LREC6230PF-TXRX

PCIe 1G One-way Transmission Ethernet Network Adapter  (Intel Chip Based)
