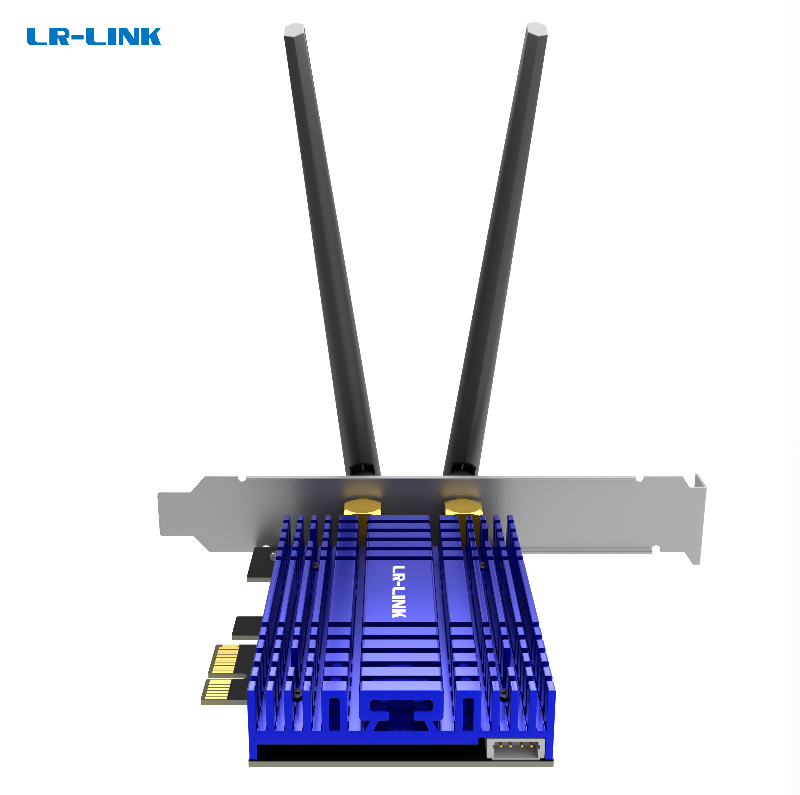

LRCWF-AX210

PCIe2.0 x1 WiFi 6E and BT5.3 Wireless Network Card
Key Features
-PCIe x1 Bus, compatible with x4, x8, x16
-External 2*5dBi omnidirectional high-gain antenna, which can rotate freely;
-AX210 NGW main control solution;
-WiFi and Bluetooth 5.3 technology two-in-one;
-Support 2.4GHz, 5GHz and 6GHz tri-band;
-Conforms to the WiFi6 802.11ax standard and is backward compatible with 802.11 ac/b/g/n. Compared with 802.11 ac, the actual throughput in a dense user environment is increased by 4 times;
-The highest frequency band supports 160MHz;
-Support up to 5374Mbps wireless transmission rate;
-WiFi reception, to solve the problem that the desktop computer cannot access the Internet wirelessly.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRCWF-AX210 is a high-speed PCI-E wireless network card that supports the sixth-generation WiFi protocol standard 802.11ax developed by Linkreal Co., Ltd. based on the AX210 module.

LRCWF-AX210 supports 2.4GHz, 5GHz and 6GHz tri-band up to 5374Mbps wireless rate, and supports Bluetooth 5.3 technology at the same time, amazing configuration standards and rich practical functions can meet the higher needs of users.

5374Mbps, the new sixth-generation WiFi standard

LRCWF-AX210 supports 2.4 & 5 & 6 GHz tri-band, the new sixth-generation WiFi standard 802.11ax, and the average throughput in dense environments is at least 4 times higher than that of 802.11ac. The rate of 5GHz and 6GHz can reach up to 2400Mbps, and the rate of 2.4GHz can reach 574Mbps. Users can play various large-scale online games without losing the connection, and enjoy the pleasure of extreme speed.



Bluetooth 5.3, faster and more stable transmission

LRCWF-AX210 adopts Bluetooth 5.3 technology, which has higher data transmission rate, stronger encryption control and better loop broadcast performance than Bluetooth 5.2. The data transmission rate of Bluetooth 5.3 2Mbps is twice that of Bluetooth 5.2; and the support of Bluetooth 5.2 does not have low-speed connection performance, which enables Bluetooth 5.3 to support and be widely used in medical equipment.



2*5dbi high gain antenna, WiFi signal reception

LRCWF-AX210 has an external 2 * 5Bi high-gain omnidirectional antenna to receive router or other WiFi signals to connect to the Internet. Support dual-band free switching. 2.4GHz, 5GHz and 6GHz can respectively meet the requirements of customers for signal penetration ability and anti-interference ability.



Support MU-MIMO

LRCWF-AX210 adopts a new generation

of MU-MIMO wireless technology, allowing

more downlink data to be transmitted at one time, enabling data to be transmitted to more devices.





HARDWARE

Model

LRCWF-AX210

Bus Type

PCI Express 2.0 x1

I/O Controller

AX210NGW

Wireless Standard

802.11 ax /ac /a /b /g /n

Wireless Band

2.4GHz

2400-2500 MHz

5GHz

5150-5850 MHz

6GHz

5925-7125 MHz

Bluetooth Version

BT 5.3

Interface Support

PCIe x1, compatible with X4, X8, x16

Transmission Rate (max)

2.4GHz

574 Mbps

5GHz / 6GHz

2400 Mbps

Antenna Gain

2.4GHz

3.8 dB

5GHz

4.2 dB

Encryption

WPA2* Personal and EnterpriseWPA3*

Scope Of Application

Desktop PC

Transmit Power

WiFi

19.5 dBm

BT

10 dBm

Operating System Support

Windows 10 (64-bit) ; Windows11(64bit)

Indicator Light

WiFi Signal Light



CONNECTOR

Bus Type

PCI Express 2.0 x1

Bluetooth

BT 5.3, support backward compatibility



ENVIRONMENTAL

Operating Temperature

0 - 70 (32 - 158℉)

Storage Temperature

-40 - 80℃ (-40 - 176℉)

Working Humidity

10% - 90% RH non-condensing

Storage Humidity

5% - 90% RH non-condensing


PHYSICAL CHARACTERISTICS

Heat Sink Size (unit: mm)

75*49*12.5

PCB Size (unit: mm)

86*62*1.6

Antenna Length (unit: mm)

200

Bluetooth Cable (unit: mm)

300

PACKAGING INFORMATION

Package size (unit: mm)

226*149.5*33

WHAT'S IN THE BOX

Included in Package

1 - 2-in-1 wireless network card

1 - Low bracket

1 - Full bracket(installed)

2 - Antenna

1 - Bluetooth cable

1 - Installation Instructions
