BackHomeProductsNetworking AccessoriesActive Optical Cable（AOC）

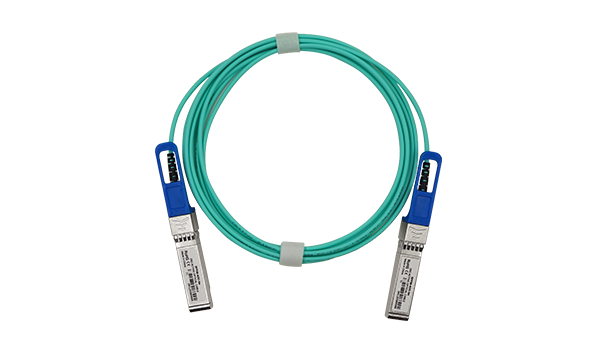

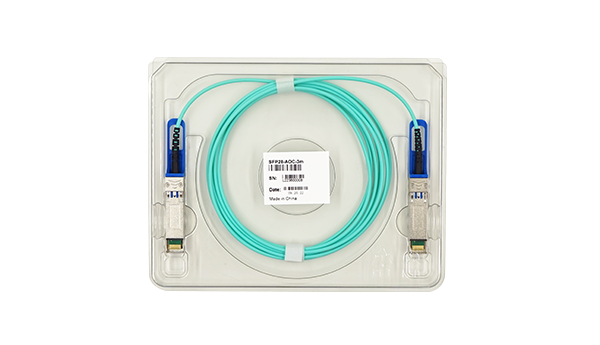

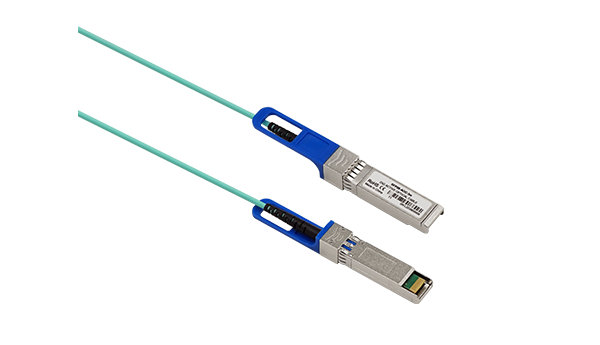

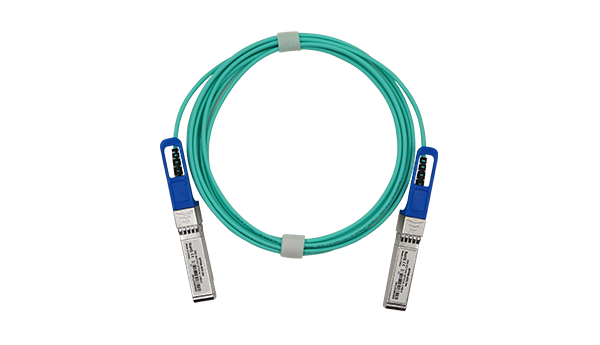

SFP28-AOC-3m

SFP28 25G Active Optical Cable

Key Features

§ Single power supply +3.3V;
§ Hot-pluggable SFP28 footprint;
§ 850nm VCSEL laser transmitter and PIN receiver;
§ Up to 25 Gb/s data transfer;
§ Compliant with SFF-8431;
§ RoHS Compliant;
§ Operating Case Temperature: 0℃~+70℃;
§ Storage Temperature: -20℃~+85℃;

Datasheet:

Overview
Specifications
Ordering
Driver
Relative Products

LR-LINK SFP28-AOC-3m active optical cable are based on 25 Gigabit ethernet. The maximum transmission distance of SFP28-AOC-3m on OM3 MMF can reach 70m.The electrical interface of the SFP28-AOC-3m conforms to the SFF-8431 standard, providing a fast and reliable interface for 25G Ethernet applications.

The SFP28-AOC-3m active optical cable can be used as a drop-in replacement for traditional cable (DAC), with lighter weight and smaller diameter. SFP28 AOC provides a standard length of 3m,which conforms to the InfiniBand QDR, SDR, and DDR protocols, and is suitable for application scenarios such as servers, switches, storage, and host card adapters.

Technical parameter

Absolute Maximum Ratings
Parameter	Symbol	Min.	Typical	Max.	Unit
Supply Voltage	V_CC	-0.3	3.3	3.6	V
Storage Temperature	T_S_T	-20	-	85	℃
Operating temperature	T_OP_C	0	-	70	℃
Relative Humidity (non-condensing)	R_H	0	-	85	%
Bit Error Rate	BER	-	-	E-12	-
Recommended work environment
Parameter	Symbol	Min.	Typical	Max.	Unit
Operating Case Temperature	T_A	0	-	70	℃
Power Supply Voltage	V_CC	3.13	3.3	3.47	V
Power Supply Current	I_CC	-	-	300	mA
Data Rate per Lane	DR	-	25.78125	-	Gbps

Photoelectric properties

Transmitter Electrical Specifications
Parameter	Symbol	Min.	Typical	Max.	Unit
Input differential impedance	Z_in	-	100	-	Ω
Differential data input swing	V_{in PP}	180	-	700	mV
Transmit Enable Voltage	V_EN	-	-	0.8	V
Transmit Disable Voltage	V_D	2.0	-	VCC	V
Receiver Electrical Specifications
Parameter	Symbol	Min.	Typical	Max.	Unit
Output differential impedance	Z_OUT	90	100	110	Ω
Center wavelength	λ_c	30	-	-	ps
Differential data output swing	V_{out PP}	500	-	800	mV
Bit Error Rate	BER	-	-	E-12	-
LOS Normal	V_OL	-	-	0.4	V
LOS Fault	V_OH	2.4	-	-	V

Order Information

P/N	Description	PS
SFP28-AOC-3m	SFP28 25G Active Optical Cable	Length: 3 meters

PS: Above details are only for reference, if there is any change,no prior notice.

Contact Us

Shenzhen LR-LINK Electronics Co.,LTD.: 9/10F 1B Block ECO Valley, Longgang Street, Longgang District Shenzhen China 518116(Factory)
14F T10 Bldg.,Sino-Ocean New World,Longcheng Street,Longgang District Shenzhen China 518172(Office); 4000-588-108; service@lr-link.com

Dreams come into reality, unmanned driving does not only exist in science fiction films

Dreams come into reality, unmanned driving does not only exist in science fiction films

NEWS CATEGORY

SFP28-AOC-3m

Datasheet:

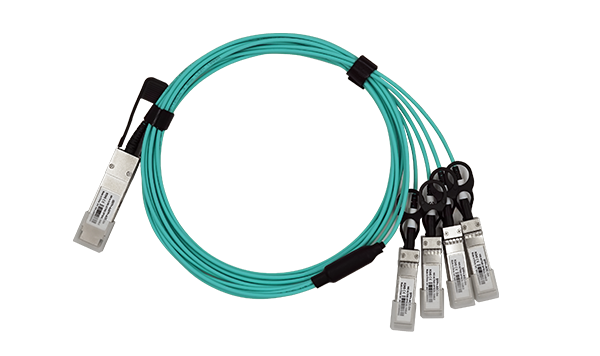

QSFP28-4xSFP28-AOC-3m

QSFP+-AOC-3m

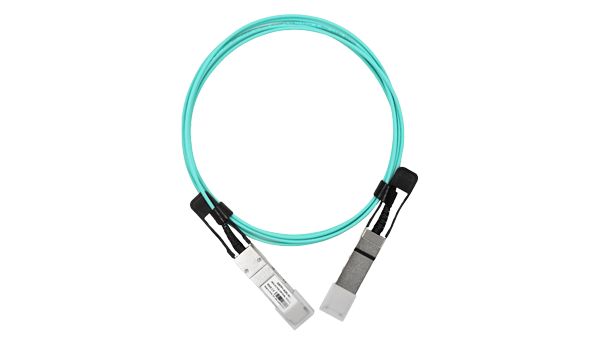

QSFP28-AOC-3m

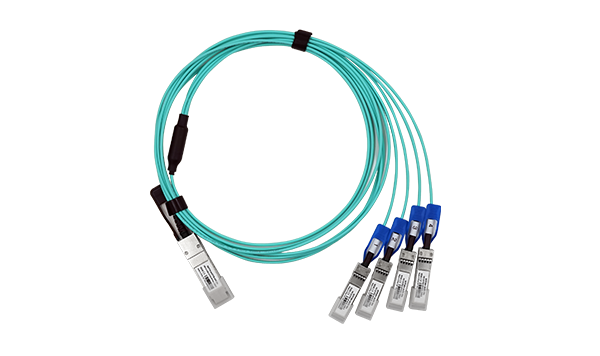

QSFP+-4xSFP+-AOC-3m
