QSFP+-4xSFP+-AOC-3m

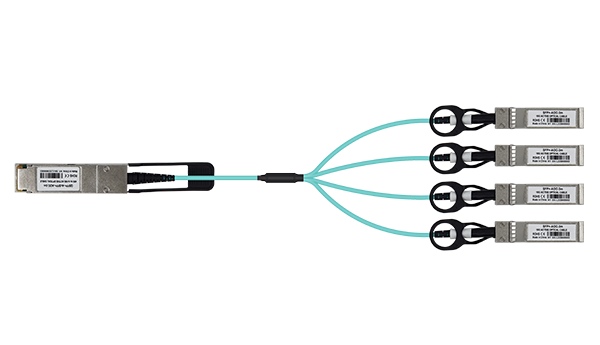

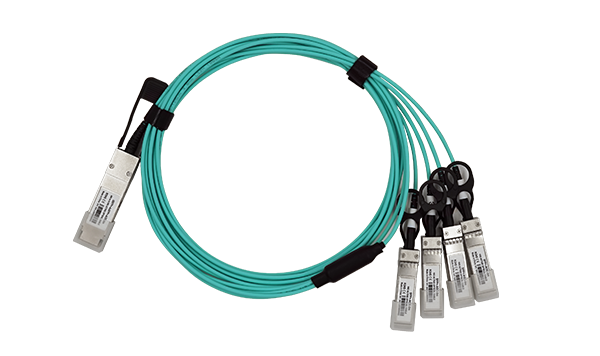

40G QSFP+ to 4x10G SFP+ breakout Active Optical Cables
Key Features
§ Single power supply +3.3V;
§ Hot-pluggable electrical interface;
§ 850nm VCSEL laser transmitter and PIN receiver;
§ 4 duplex lanes active optical cable at 10Gbps;
§ SFF-8436 QSFP+ compliant;
§ SFF-8431 SFP+ compliant;
§ RoHS Compliant;
§ Operating Case Temperature: 0℃~+70℃;
§ Storage Temperature: -10℃~+70℃;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LR-LINK QSFP+-4xSFP+-AOC-3m uses OM3 multimode fiber,which is suitable for merging 40G QSFP+ and 10G SFP+ enabled host adapters, switches and servers.The maximum transmission distance of QSFP+-4xSFP+-AOC-3m on OM3 MMF can reach 300m,The small bending radius design makes the QSFP+-4xSFP+-AOC-3m easy to install and fiber management.

The QSFP+-4xSFP+-AOC-3m is fully compliant with the QSFP+ MSA and SFP+ MSA standards. The QSFP+-4xSFP+-AOC-3m features 4 independent duplex channels, providing a fast and reliable interface for 4x10G Ethernet applications, and the QSFP+-4xSFP+-AOC-3m is a parallel transceiver that provides port density and cost savings.

The QSFP+-4xSFP+-AOC-3m active optical cable can be used as a drop-in replacement for traditional cable (DAC), with lighter weight and smaller diameter. QSFP+-4xSFP+-AOC-3m provides a standard length of 3m,which is suitable for application scenarios such as 4x10G Ethernet application.


Technical parameter



Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Supply Voltage

VCC

-0.5

-

3.6

V

Storage Temperature

TST

-10

-

75

Operating temperature

TOPC

0

-

70

Relative Humidity (non-condensing)

RH

0

-

85

%

Bit Error Rate

BER

-

-

E-12

-

Fiber Bend Radius

Rb

30

-

-

mm

Recommended work environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Operating Case Temperature

TA

0

-

70

Power Supply Voltage

VCC

3.14

3.3

3.46

V



Photoelectric properties



AOC Electrical Output Requirements

Parameter

Symbol

Symbol

Min.

Typical

Max.

Unit

data rate per channel

DR

-

-

10.3125

10.5

Gb/s

Differential output swing

VOUT PP

-

0

-

850

mV

Output AC Common Mode Voltage

VCM

-

-

-

15

mV

Output signal rise/fall time (20%-80%)

tr/tf

-

24

-

-

ps

Total Jitter (p-p)

TJ

-

-

-

0.7

UI

Deterministic Jitter (P-P)

DJ

-

-

-

0.4

UI

Eye Mask Coordinates

X1, X2

0.29, 0.5

-

-

-

UI

Y1, Y2

150, 425

-

-

-

mV

Order Information



P/N

Description

PS

QSFP+-4xSFP+-AOC-3m

40G QSFP+ to 4x10G SFP+ breakout Active Optical Cables

Length: 3 meters



PS: Above details are only for reference, if there is any change,no prior notice.
