BackHomeProductsIndustrial Expansion CardIndustrial NICs
  • 2-Port Gigabit Copper Ethernet Network Adapter
  • 2-Port Gigabit Copper Ethernet Network Adapter
  • 2-Port Gigabit Copper Ethernet Network Adapter
  • 2-Port Gigabit Copper Ethernet Network Adapter

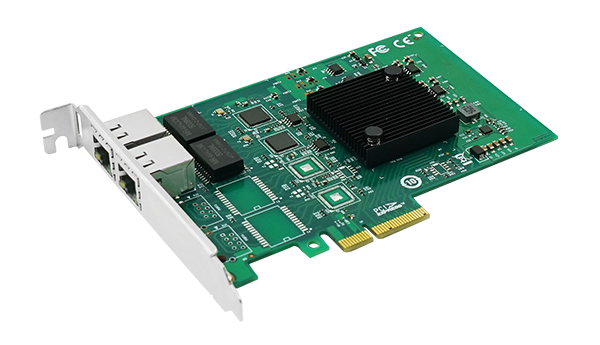

LRES3002PT

PCIe x4 Dual Ports Gigabit Copper Ethernet Network Adapter (Intel Chip Based)
Key Features
·Low cost, low power,energy-efficient Ethernet and DMA merging.
·Dual-port 1GBASE-T controller with integrated MAC and PHY
·Four transmit queues and four receive queues per port.
·10/100/1000Mbps networks transition.
·PCI Express (Pcle) v 2.1.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES3002PT is PCI Express x4 Dual-ports Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Intel I210 control solution. It can also be used on PCIe x8 and x16 channels. The use of miniaturized design does not reduce the performance indicators of the network card.

Ethernet power management technologies such as energy-efficient Ethernet and DMA merging are used, with four transmit queues, four receive queues, and error correction memory protection to improve data transmission reliability by combining parallel and pipeline logic architectures. Together, effectively managing packets with delays.

High-performance network data transmission on the machine bus architecture, compatible with Ethernet and Fast Ethernet, which greatly reduces customer deployment and training costs, allowing users to quickly and easily migrate their networks to Gigabit Ethernet 10/100/1000Mbps. The link rate is adaptive to the links on the network. At the highest Gigabit Ethernet connection, four ports can be simultaneously operated in full-duplex mode to accommodate high-performance network communication, which can extend bandwidth and save PCI Express channel resources through link aggregation.

Specifications


Controller

Intel(R) Chip


Transmission medium

Copper


Type

1000Base-T Cat 5E/6 or higher , up to 100m


100Base-Tx Cat5/5E/6 or higher , up to 100m


10Base-T Category 3/4/5/5E/6 or higher , up to 100m


Baffle Height

Full height


Power Consumption

3.2W


Connector

2*1G RJ45


PCI-e Bus Type

PCI Express v2.1 (2.5GT/s) x4 , compatible with x8x16


Data rate per port

10/100/1000Mbps


Power supply

PCIe


Standards compliant

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs
IEEE 802.3x
IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)


OS Support

* Windows 78/8.110

* Windows Server 2008 / R2

* Windows Server 2012 / R2

* Windows Server 2016 / R2

* Windows Server 2019 / R2

* Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

* CentOS / RHEL 6.x / 7.x or later

* Ubuntu14.x/16.x or later

* FreeBSD 9 / 10 / 11 or later

* Vmware ESX/ESXi 5.x / 6.xor later


PXE

No


DPDK

Yes


WOL

Yes


iSCSI

Yes


Jumbo Frames

Yes


FCoE

No


LED Indication


LED Indication

1000MbpsOrange bright + Green flashing


10Mbps/100Mbps: Green flashing


Environment Features


Operating Temperature

-40 to 85 (40 ℉ to +185 )


Storage Temperature

-55 ℃ to +105 ℃ (-67 ℉ to +221 ℉)


Storage Humidity

Maximum: 90% non-condensing relative humidity at 35


Certification

FCC B,CE


Physical Features

Product Size(mm)

147*120*21

Sackage Size (mm)

225*150*30

Weight(g)

92



P/N

Description

LRES3002PT

PCIe x4 Dual Ports Gigabit Copper Ethernet Network Adapter (Intel Chip Based)
