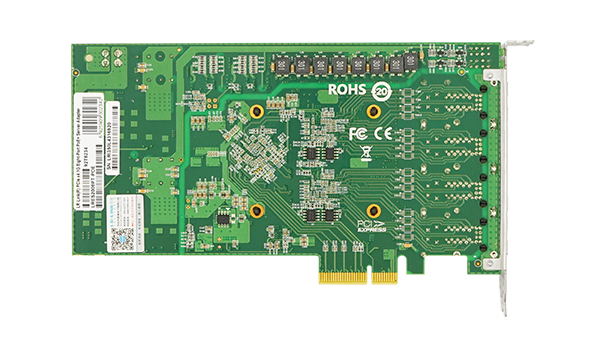

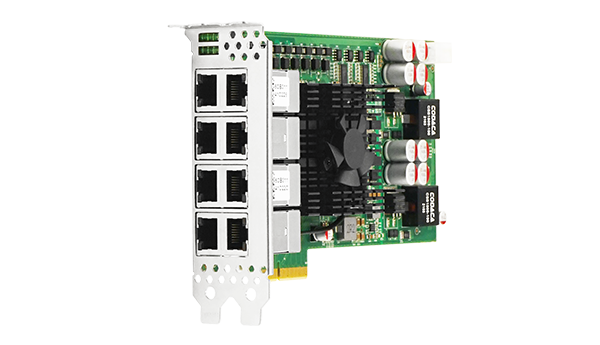

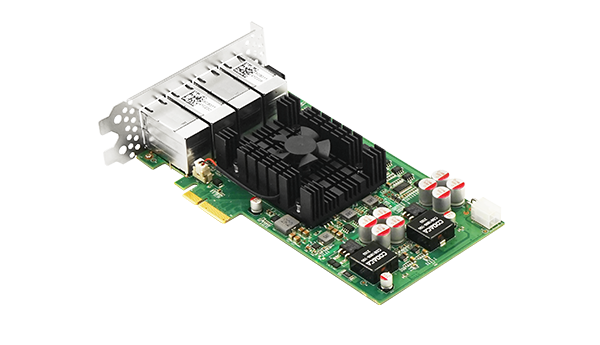

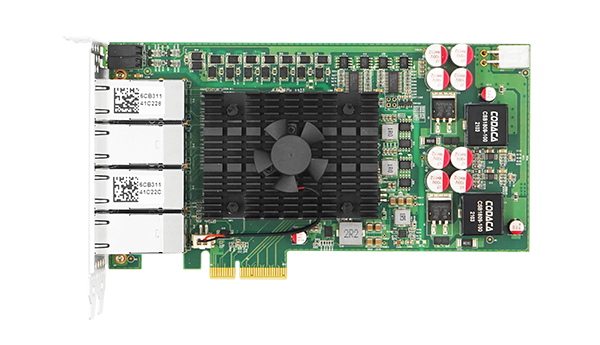

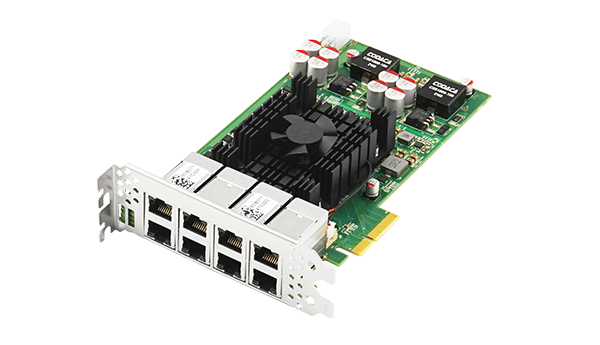

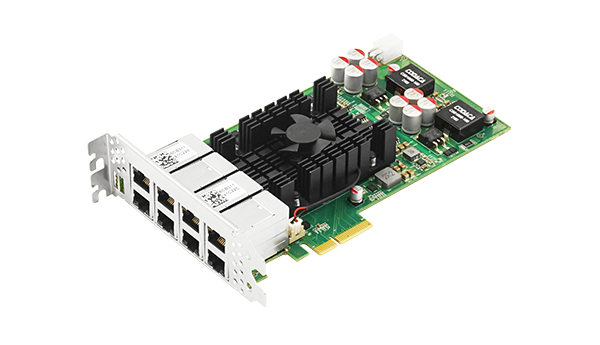

LRES2008PT

PCIe x4 Eight-port Copper Gigabit Industry Ethernet Adapter (Intel I350)
Key Features
1. The use of large high-end high-efficiency radiators can effectively solve the problem of adapter heat dissipation in the case of poor heat dissipation environment, effectively guarantee the stable operation of the adapter card for a long time;
2. Self-adaptive to the connection rate of external equipment, up to 8 1000M working at the same time without affecting the communication performance;
3. Using compact 8-port Gigabit high-quality connectors to ensure communication quality;
4. Carefully selected RJ45 connectors with thickened and heavy gold to ensure more firm and reliable connectivity;
5. The design of eight 8-Pin RJ45 connectors can better save the precious PCIe slot resources of the motherboard.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2008PT is a PCI Express x4 eight-port Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel I350 chip solution, and is compatible with PCIe x8 and x16 channels. The design of this adapter card is mainly applied to the Internet of Things, industrial field visual inspection servers and equipment, visual field clients, fast-moving Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

This adapter card has integrated hardware acceleration function and can perform TCP / UDP / IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications. This adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2008PT is developed on the basis of Intel Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows eight ports to work in full-duplex mode at the same time in a Gigabit Ethernet connection In order to achieve high-performance network communication, the bandwidth can also be expanded through link aggregation and the PCI Express channel resources on the host are saved without occupying the bus bandwidth.

PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT

                                                                           Specifications

Controller

Intel I350

Baffle Height

The default is not equipped with a baffle, it is optional!

Power Consumption

12.0W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4compatible with x8/x16

Data rate supported per port

10\100\1000M

Connector

8*RJ45


                                                                        Technical Features

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No





P/N

Description

LRES2008PT

PCIe x4 Eight-port Copper 1G ethernet network adapter 8*RJ45 (Intel I350 Based)
