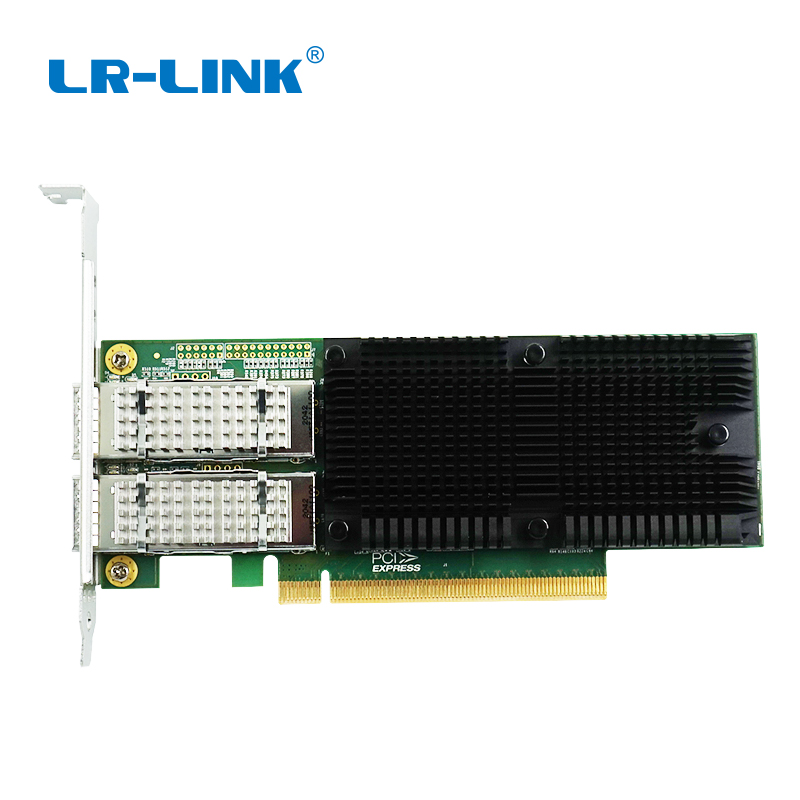

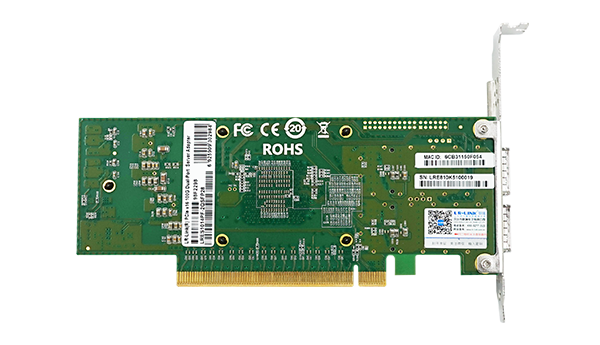

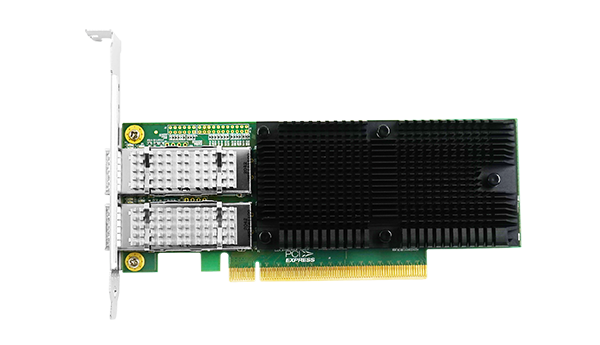

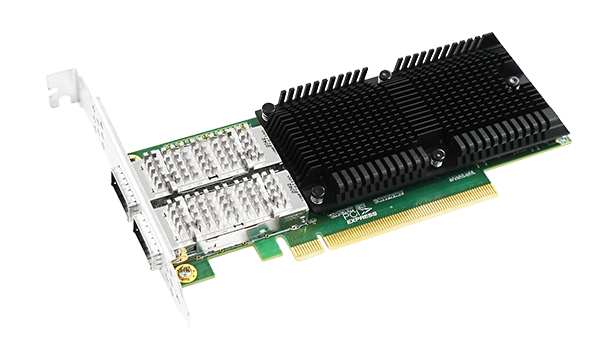

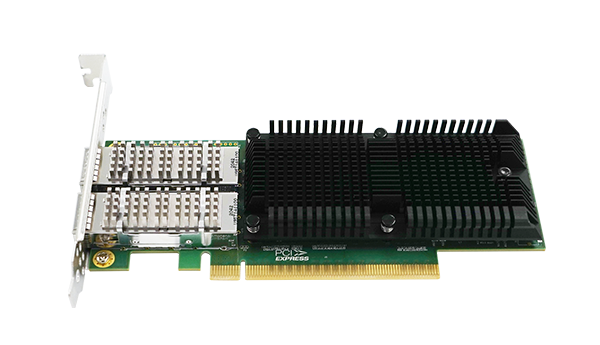

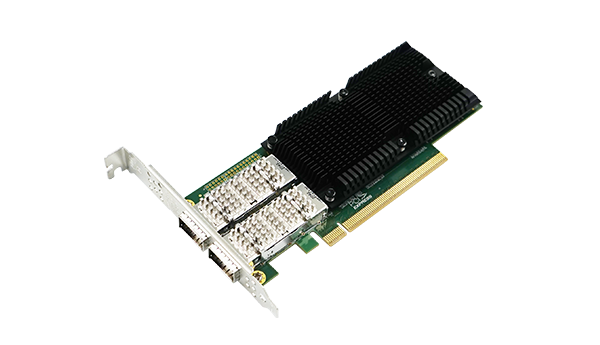

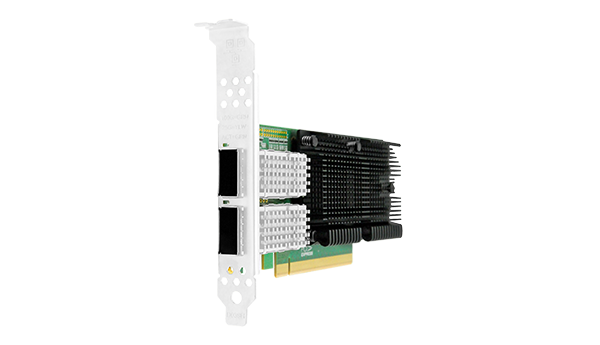

LRES1014PF-2QSFP28

PCIe x16 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
Key Features
1. Developed on the basis of Intel chip E810;
2. It supports 10G/25G/50G/100G multiple rates;
3. It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1014PF-2QSFP28 is a PCIe4.0 x16 dual-optical port 100G Ethernet network adapter developed by Linkreal CO.,LTD. on the basis of Intel E810 master program. The product is complemented by hardware accelerated packet processing expansion features, while the introduction of application queuing technology, through which Fabric TCP can be realized through the NVMe support, but also on the RDMA iWARP and RoCEv2 functions with optional support, the adapter can be simultaneously backward compatible with PCIe3.0 and PCIe2.0.



LRES1014PF-2QSFP28 adopts the application queue technology to ensure that each application can request its own queue, i.e., the data between each other is no longer confused, with an interface speed of up to 100Gbps, which can be widely used in high throughput can handle a variety of workloads, data center services, cloud computing, storage, and other network equipment, in the actual operation of the use of program queues can reduce the number of applications. In practice, it can be used in combination with program queues to reduce application latency and increase throughput.


The LRES1014PF-2QSFP28 provides scalable ADQ technology to improve performance scalability and predictability for critical workloads by dedicating specific resources to critical workloads. ADQ uses optimized application thread-to-device data paths to enable application-specific data control, messaging, and rate-limiting features.

The LRES1014PF-2QSFP28 utilizes the Intel E810 host controller and supports PCIe 4.0 while being backward compatible for PCIe 3.0 use. The use of EPCT's multi-function port configuration technology allows the adapter to be configured for a variety of rates, such as: 2*100G, 1*100G, 2*50G, 4*25G, 2*2*25G, and 8*10G, to meet the needs of a variety of occasions.

Specifications



Controller

Intel E810

Cable medium

Fiber Optics

Cable Type

10GBASE-SR, 10GBASE-LR, 10GBASE-ER,

25GBASE-SR, 25GBASE-LR,

50GBASE-SR, 50GBASE-LR,

100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4

Bracket Height

Low Profile & Full Height

Power (min)

11.592 W

Power (max)

39.372W

System Support

Windows 10 /11

Windows Server 2016 /2019 /2022

Deepin 20 /20.6 /20.9

VMware ESXi 6.7 /7.0

Galaxy Unicorn v10

RHEL/Centos  7.6 /7.9 /8.2 /8.3

Ubuntu 16.04.3 /18.04.5

Ubuntu 20.04.1 /22.04.2

SUSE 12.5 /15.4

FreeBSD 12.2 /13.2

ZTE New Fulcrum 3.2.2

ZTE New Fulcrum 5.0.5

Asianux Server v7.0

Zhongke Fangde server operating system

iKuai router

Bus Interface

PCIe4.0 x16, compatible with PCIe3.0

Data rate per port

10/25/50/100Gbps

Connector

2*100G QSFP28

Power Supply

PCIe

Technical Features



Protocol Support

IEEE 802.3ae 10GBase-X

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3ap   IEEE 802.3as       IEEE 802.3bc      IEEE 802.3bd         IEEE 802.1p    IEEE 802.1Q VLAN   IEEE 802.1Qau     IEEE 802.1Qaz        IEEE 802.1Qbb  IEEE 802.1Qbg       IEEE 802.1Qbh    IEEE 802.1X        IEEE 802.1AE   IEEE 802.1AEbn      IEEE 802.1AS      IEEE 802.1AX        IEEE 802.3aq   IEEE 802.3an

PXE\UEFI

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

FCoE

Yes

VMDqSR-IOV

Yes

SCAN CHAIN

No

Jumbo Frame(max)

9.5KB

RDMA

Yes

1588 PTP

Yes



Environment Features



Operating Temperature

0to 105(-32 to 221 )

Storage Temperature

-40 to 115 (-40 to 239 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS


Physical Features



PCB Size(L x W x H)

68.76 x 170 x 1.6 mm

Package Size(L x W x H)

250 x 170 x 32 mm

Weight(g)

*


LED Indicators



10G /25G /50G

Connection Status

Orange Link

Transfer status

Orange Link + Green Blink

100G

Connection Status

Green Link

Transfer status

Green Link + Green Blink



Order Information



P/N

Description

LRES1014PF-2QSFP28

PCIe x16 Dual-port 100G QSFP28 Internet Network Adapter

(Intel E810)



PS: Above details are only for reference, if there is any change,no prior notice.
