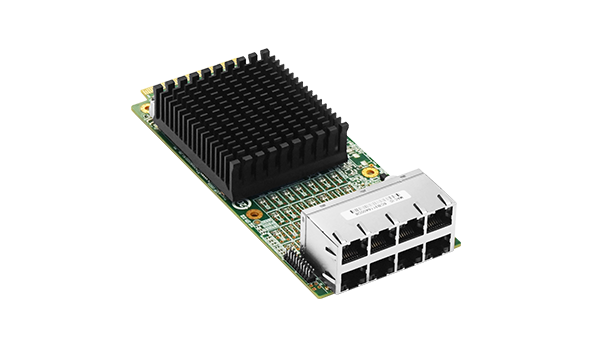

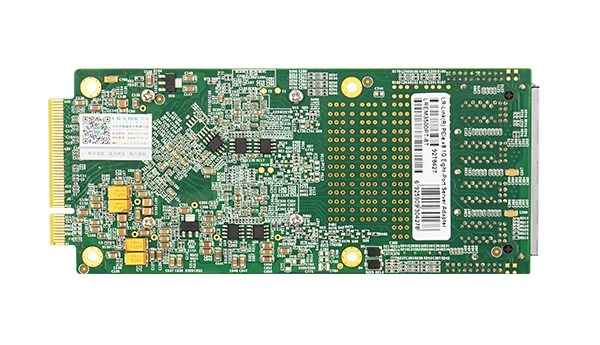

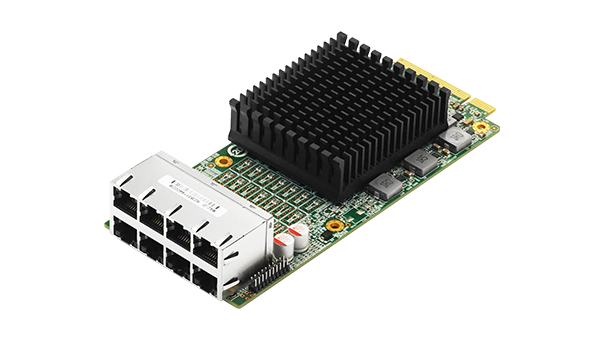

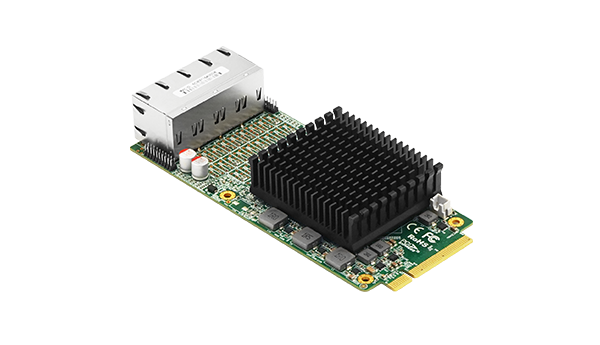

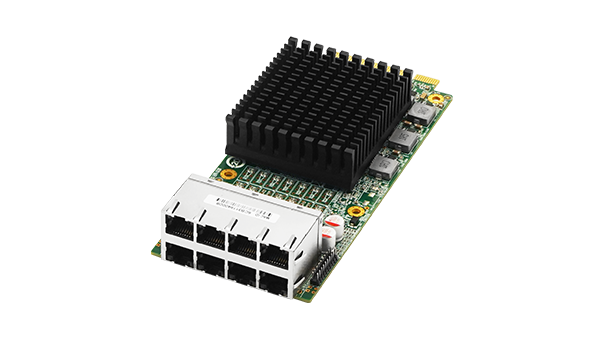

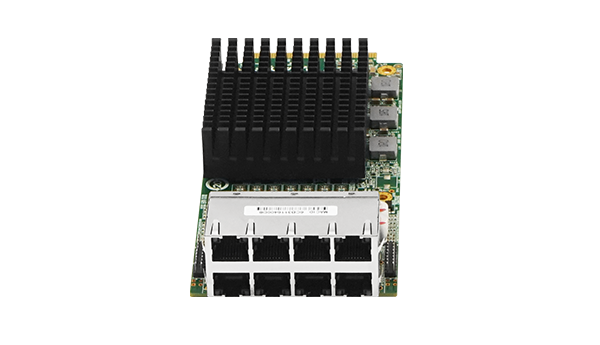

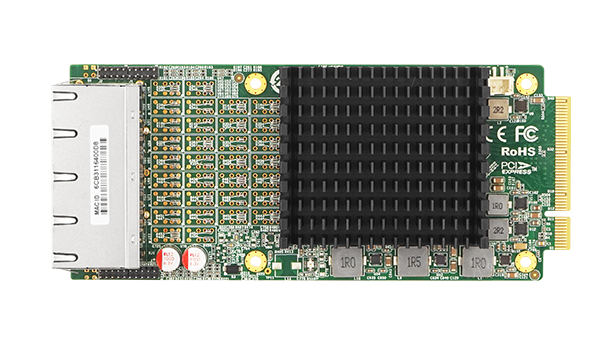

LREM3500PT-8T

PCIe x8 Eight-port 1G Mezzanine Ethernet Network Adapter (Intel I350)
Key Features
•Used in data transmission such as firewalls and gatekeepers.
•Has a wide range of system compatibility and stability.
•Each network port has an independent Gigabit channel network port and works independently of each other.
•Support 10/100 / 1000Mbps link rate work at the application site.
•It can allow eight network ports to work in full-duplex working mode at the same time.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREM3500PT-8T is a PCI Express x4 (x8 interface) 8-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control program. It is suitable for non-stop operation of all-weather data transmission.

The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel network port and works independently of each other.

Support 10/100 / 1000Mbps link rate work at the application site. In the Gigabit Ethernet connection, eight network ports can be allowed to work in full-duplex mode at the same time, and eight network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in the space of 1U chassis.



Application:

Switch extension
Router extension
Firewall
Gateway
Gatekeeper


                                                   Specifications

Controller

Intel I350

Baffle Height

*

Power Consumption

15.1W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4x8 interface);

Data rate supported per port

10/100/1000Mbps

Connector

4*RJ45


                                             Technical Features

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

No

FCoE

No




P/N

Description

LREM3500PT-8T

PCIe x8 Eight-port 1G Mezzanine Ethernet Network Adapter (Intel I350 Based)
