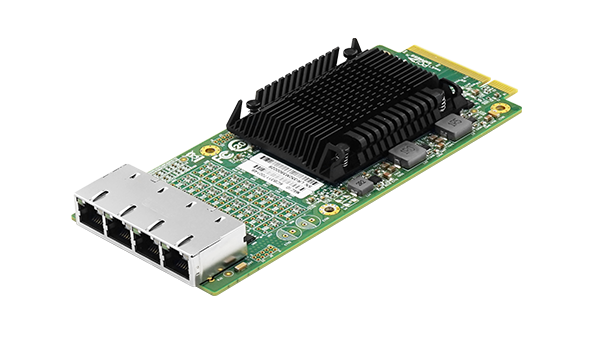

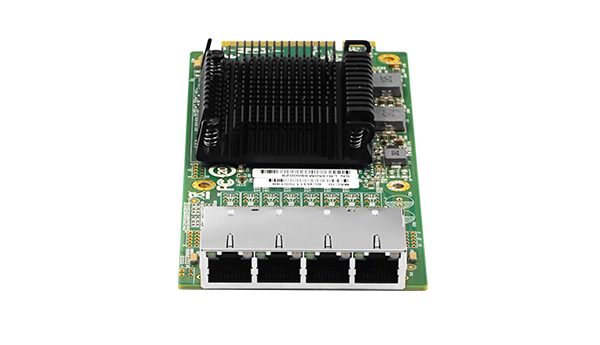

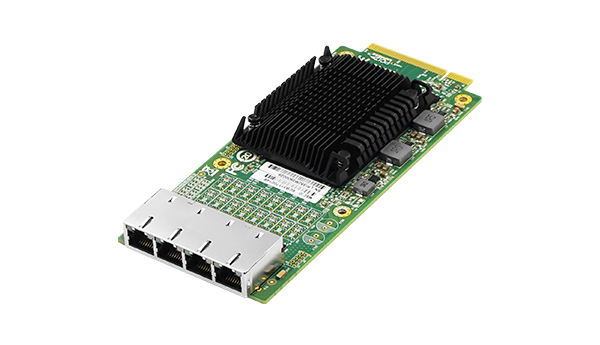

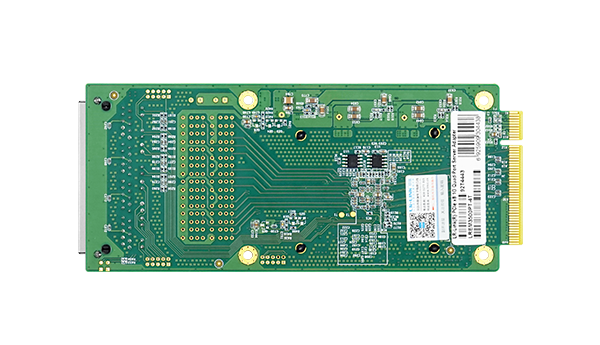

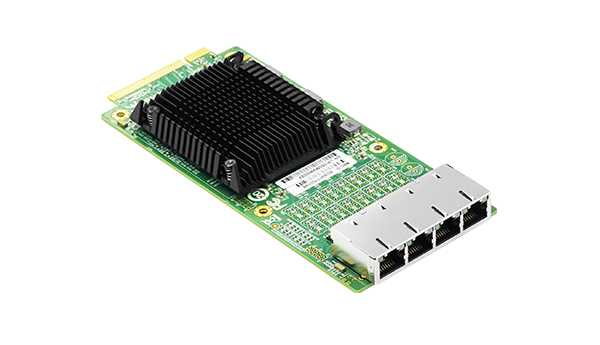

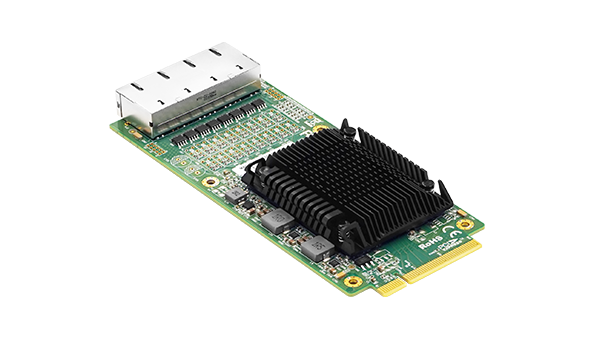

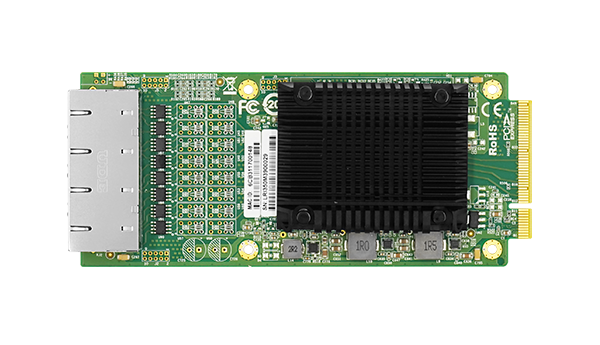

LREM3500PT-4T

PCIe x8 Quad-port 1G Mezzanine Ethernet Network Adapter (Intel I350)
Key Features
1. It is mostly used in data transmission such as firewalls, gatekeepers, and data monitoring.
2. The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability.
3. Each network port has an independent Gigabit channel network port and works independently of each other.
4. Support 10/100 / 1000M speed transmission at the application site.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREM3500PT-4T is a PCI Express x4 (x8 interface) four-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control solution. The adapter belongs to the mezzanine card structure. It is applied to data transmission such as firewall, gatekeeper, data monitoring, etc., and is suitable for non-stop operation all day.

The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel network port and works independently of each other.

The adapter has a network aggregation function to support network redundancy or increase the network bandwidth to ensure that a large amount of data to communicate is the smooth flow of the network.

Support 10/100 / 1000M speed transmission at the application site. In the Gigabit Ethernet connection, four gigabit ports can be allowed to work in full-duplex mode at the same time, and four network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in the space of 1U chassis.


                                                 Specifications



Controller

Intel I350

Baffle Height

*

Power Consumption

5.04W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x4 (x8 interface)

Data rate supported per port

10/100/1000MbE

Connector

4*8-Pin RJ45



                                                                     Technical Features



Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

No

FCoE

No




P/N

Description

LREM3500PT-4T

PCIe x8 Quad-port 1G Mezzanine Ethernet Network Adapter  (Intel I350 Based)
