LREM3500PF-4SFP

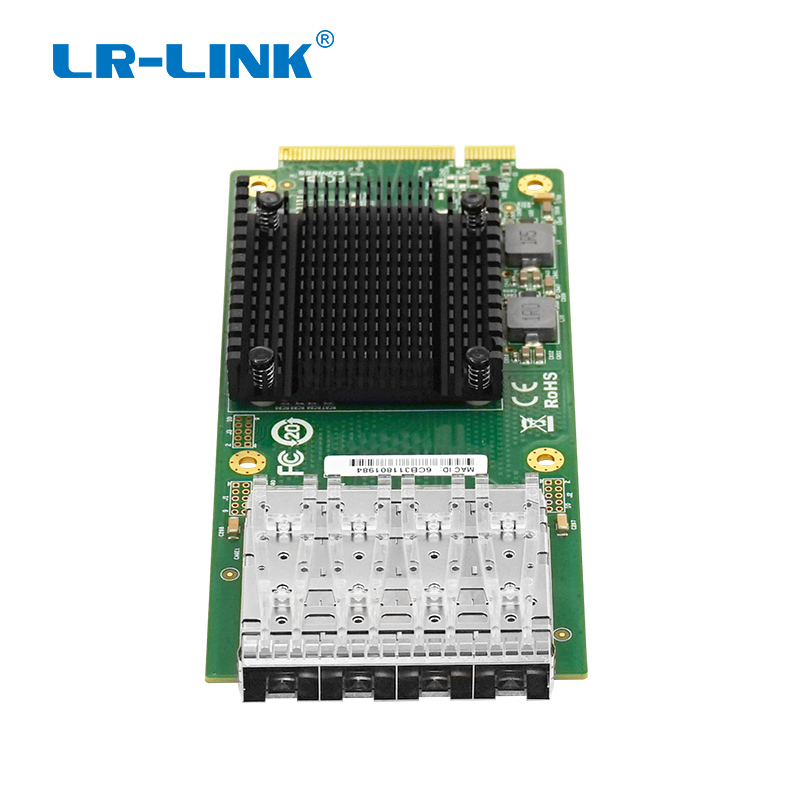

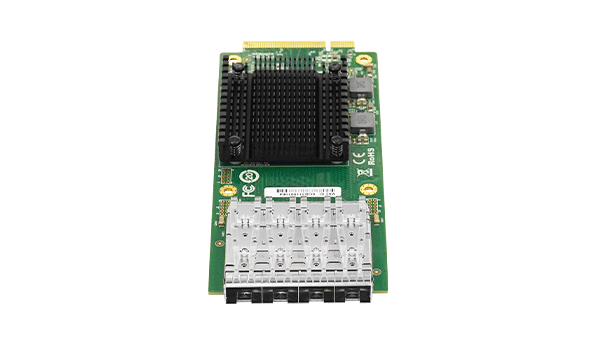

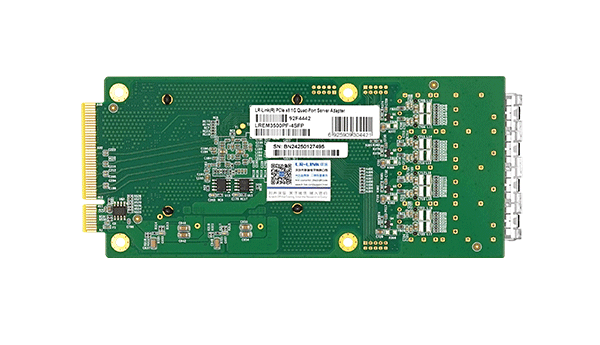

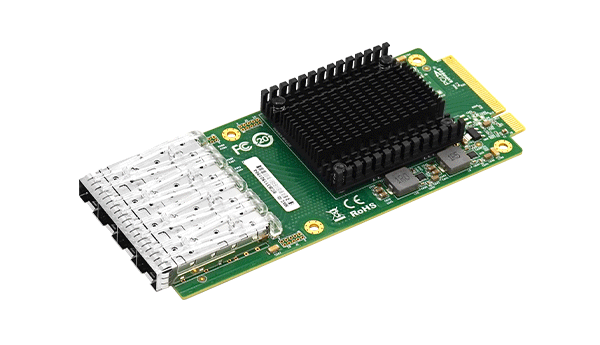

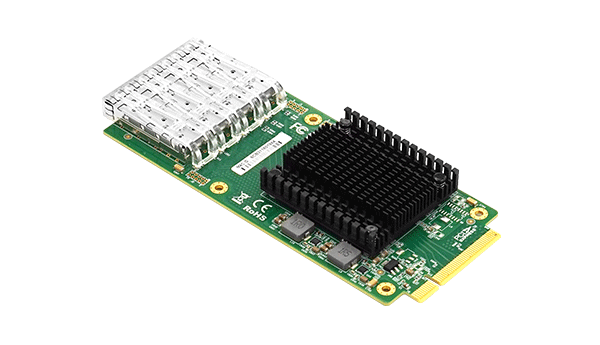

PCIe x8 Quad-port 1G SFP Mezzanine Ethernet Network Adapter (Intel I350)
Key Features
•Used in data transmission such as firewall, gatekeeper, data monitoring, etc.
•Has a wide range of system compatibility and stability.
•Each network port has an independent Gigabit channel network port and works independently of each other.
•Support aggregation to increase network traffic bandwidth.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREM3500PF-4SFP is a PCI Express x4 (x8 interface) quad-port mezzanine Gigabit Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 main control solution. It is applied to data transmission such as firewall, gatekeeper, data monitoring, etc., and is suitable for non-stop operation all day.

The Intel I350 main control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent Gigabit channel network port and works independently of each other.

Support the safe transmission of Gigabit optical fiber at the application site. In the Gigabit Ethernet connection, four gigabit fiber ports can be allowed to work in full-duplex mode at the same time, and four network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in the space of 1U chassis.


                                                  Specifications

Controller

Intel I350

Baffle Height

*

Power Consumption

3.2W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4x8 interface);

Data rate supported per port

1000MbE

Connector

4*SFP



                                                 Technical Features

Protocol Support

IEEE 802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

No

FCoE

No







P/N

Description

LREM3500PF-4SFP

PCIe x8 Quad-port 1G SFP Mezzanine Ethernet Network Adapter (Intel I350 Based)
