BackHomeProductsCyber Security CardOne-Way NICs
  • 10 Gigabit Uni-directional Fiber Network Adapter
  • 10 Gigabit Uni-directional Fiber Network Adapter

LREC9801BF-TX -RX

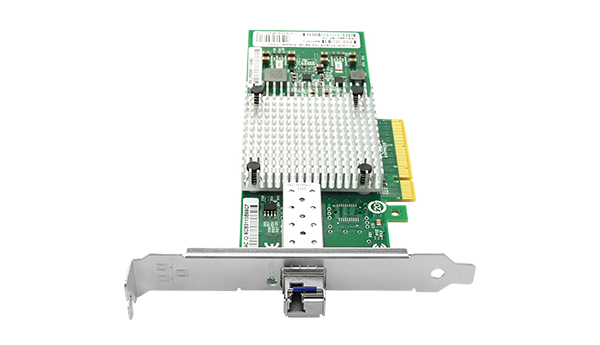

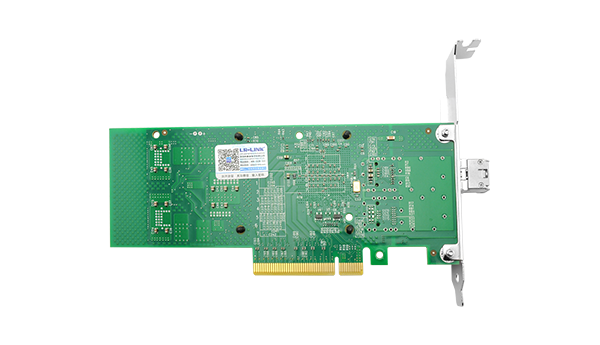

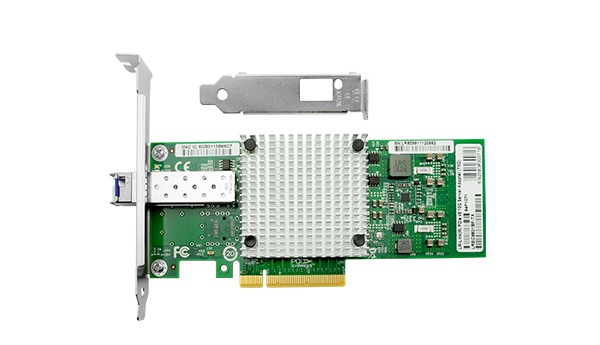

PCIe x8 10G Uni-directional Fiber Server Adapter (Intel 82599)
Key Features
• One-way 10 Gigabit adapters
• PCI Express (PCIe) v2.0, 5 GT/s, x8 lanes
• Single LC Connectivity
• PXE boot
• Network Virtualization
• Data Plane Development Kit (DPDK) support
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC9801BF-TX/RX 10 Gigabit one-way Transmission Fiber Server Adapters are composed by Transmit network card and receive network card, connecting by one-way LC fiber patch cord. They are the most flexible and scalable Ethernet adapters to meet the demands of data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.


Controller

Intel 82599

Transmission Rate Per Port

10G

Network Standard Physical Layer Interfaces

10GBASE-LR 10GbE SFP+ DAC

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Network Virtualization

VXLAN, MACinUDP, NVGRE, IPinGRE

LED Indicators

ACK Yellow and Link Green

Operating System Support

Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 R2

Windows 7 / 8 / 8.1 / 10

Linux SLES 10 / 11 or later

FreeBSD 8.x / 9.x / 10.x or later

Linux Stable Kernel version 2.6.32/3.x/4.x or later

VMvare ESX/ESXi 4.x/5.x/6.x or later


Model

Description

LREC9801BF-TX

LREC9801BF-RX

PCIe x8 10 Gigabit Uni-directional Fiber Server Adapter (Intel 82599 Based)

uni-directional optical module, 1310nm wavelength, transmission distance up to 10km

PS: Above details are only for reference, if there is any change, no inform will have.
