Quad-port Gigabit copper NIC based on Intel I350, supporting SR-IOV and hardware acceleration for server environments.

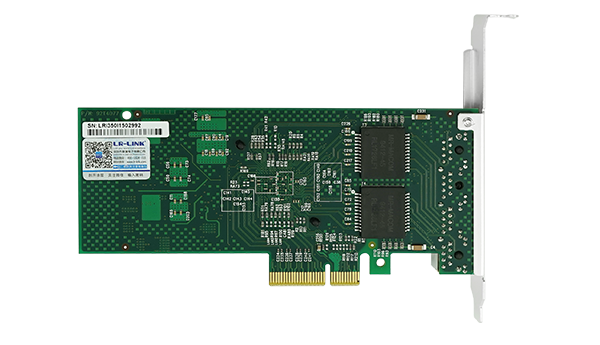

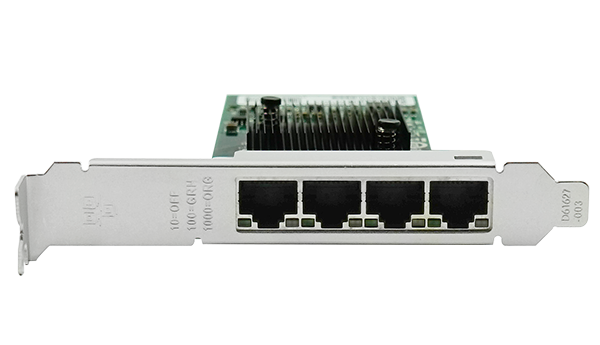

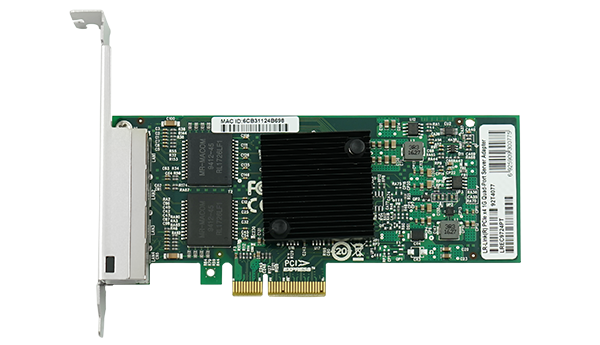

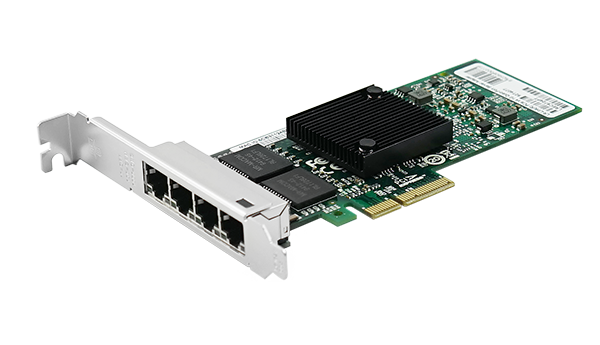

LR-LINK presents the LREC9724PT, a robust PCIe x4 quad-port Gigabit Ethernet network adapter designed for demanding server and high-end device applications. Built on the reliable Intel I350 chipset, this adapter delivers exceptional performance and stability, making it an ideal choice for critical network infrastructure.
Key to its efficiency is the integrated hardware acceleration engine, which offloads TCP/UDP/IP checksum calculations and segmentation tasks from the host CPU. This significantly reduces processor load, freeing up resources for other critical applications while ensuring uninterrupted, high-speed data transmission across all four ports.
The LREC9724PT supports advanced features such as Link Aggregation (802.3ad) for bandwidth expansion and fault tolerance, as well as PCI-SIG SR-IOV for efficient virtualization. With compatibility for PCIe x8 and x16 slots, comprehensive driver support for major operating systems including Windows Server and Linux, and energy-efficient Ethernet (EEE) capabilities, this adapter offers a versatile and powerful networking solution.
Four independent Gigabit ports for high bandwidth and redundancy in server environments.
Powered by the trusted Intel I350 controller for stable and consistent network performance.
Supports SR-IOV and VMDq for efficient resource sharing in virtualized data centers.
Hardware acceleration offloads network processing tasks, reducing CPU usage significantly.
Link aggregation ensures uninterrupted communication through port redundancy and failover.
Complete technical details for integration and deployment planning.
| Bus Interface | PCIe v2.1 x4 (compatible with x8, x16) |
|---|---|
| Port Configuration | Quad-port |
| Connector Type | 4x RJ45 |
| Data Rate | 10/100/1000Mbps |
| Cable Medium | Copper (Cat 5e or higher for 1GBase-T) |
| Controller | Intel I350 |
|---|---|
| Architecture | Quad-port ethernet MAC+PHY |
| SR-IOV | Yes |
|---|---|
| Jumbo Frame | Yes |
| PXE Boot | Yes |
| DPDK Support | Yes |
| Hardware Acceleration | TCP/UDP/IP Checksum Offload, TCP Segmentation |
| Energy Efficient Ethernet | IEEE 802.3az EEE |
| VMDq | Yes |
| Link Aggregation | Supported (802.3ad) |
| Form Factor | Full height & half height bracket |
|---|---|
| Power Consumption | 5.0W |
| LED Indicators | Status indication for 1000Mbps, 100Mbps, 10Mbps |
| Operating Temperature | 0°C to 55°C |
|---|---|
| Storage Temperature | -40°C to 85°C |
| Storage Humidity | Max 90% non-condensing at 35°C |
| IEEE Standards | 802.3ab, 802.3u, 802.3z, 802.1Q, 802.3x, 802.3az, IEEE 1588 |
|---|---|
| Protocol Support | PXE, iSCSI (No), FCoE (No), WoL (No) |
