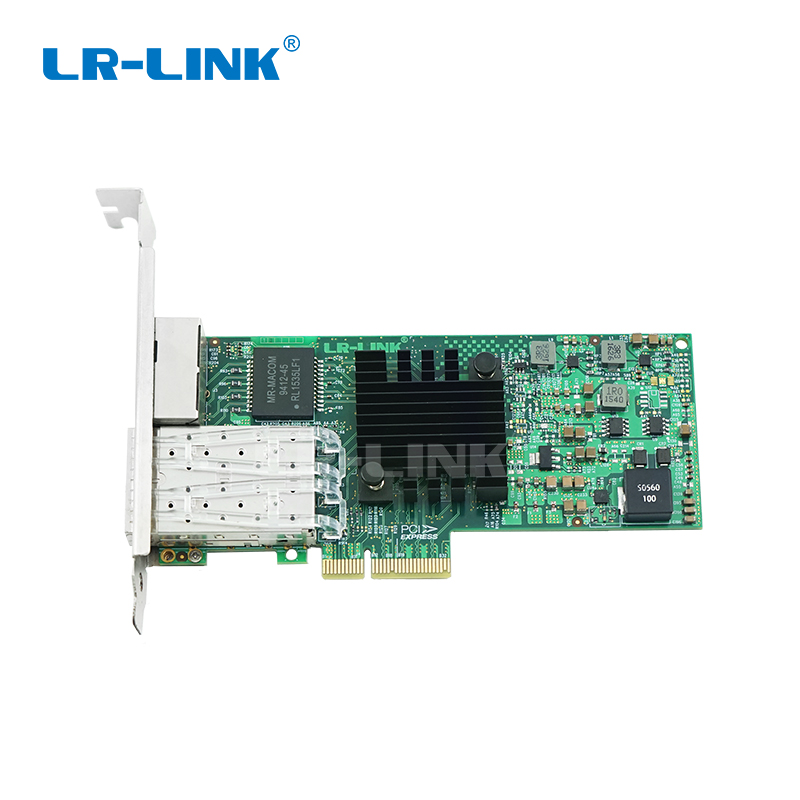

LREC9714TF-2T2S

PCIe x4 Dual-Fiber & Dual-Copper Gigabit Ethernet Network Adapter ( Intel I350 Based)
Key Features
•2 x 1G SFP Connector
•2 x 1G RJ45 Connector
•PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes
•Network Virtualization
•Flexible I/O virtualization for port partitioning

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC9714TF-2T2S is a Dual-Fiber & Dual-Copper Gigabit PCI Express x4 Ethernet network card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 master control solution. It is on the same chip. Innovative products that have been made together with optoelectronics are suitable for use on both servers and PCs.

The adapter card can be bundled into a group to achieve fault tolerance, automatically detecting and routing communication from the failed port to other members in the same group to continue operation for uninterrupted communication. The NIC master has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to handle other applications. The adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers (with the advantage of a mix of fiber and twisted-pair cable).

The LREC9714TF-2T2S card is equipped with a dedicated PCI Express input/output (I/O) bandwidth in the Gigabit Ethernet connection of the opto-electric hybrid network to ensure superior performance without consuming bus bandwidth. The onboard 2 SFP and 2 RJ45 interfaces are compatible with various Gigabit SFP modules. Users can select the appropriate Gigabit fiber module according to the actual transmission distance without replacing the network card. The adapter supports the PCI-SIG Single-Root I/O virtualization & sharing specification (SR-IOV) (single root I/O virtualization and sharing specification).

LREC9714TF-2T2S This adapter card is suitable for Gigabit fiber optic Ethernet, has excellent noise immunity, and also supports long-distance fiber connection. The adapter card supports Intel PRO Smart Install and the new Intel PROSet designed for Microsoft Device Manager, simplifying the installation and management process. The Intel PROSet program simplifies the installation process for the adapter.

                         Specifications

Controller

Intel I350

Baffle Height

Low Profile Bracekt and Full-height Bracket

Power(max)

4.0W

Transmission medium

Fiber + Copper

Fiber type

1000Base-T Cat 5E/6 or higher: up to 100m

Copper type

1000Base-T Cat 5E/6 or higher: up to 100m

100Base-T Cat 5/5E/6 or higher: up to 100m

10Base-T Cat 3/4/5/5E/6 or higher: up to 100m

System Support

Windows XP/Vista/7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 /2019 R2

Linux Stable Kernel version 2.4.x/2.6.32/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus type

PCIe v2.1 x4, compatible with x8 & x16

Data rate supported per port

1000Mbps + 10/100/1000Mbps

Connector

2*1G RJ45 + 2*1G SFP

                       Technical Features

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

Yes

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes



P/N

Description

LREC9714TF-2T2S

PCIe x4 Quad-port Gigabit Copper Ethernet Server Adapter (based on Intel I350)
