Specifications
|
Controller |
Intel I350 |
|
|
Cable medium |
Copper |
|
|
Fiber Type |
Cat5 |
50M(1Gbps);100M(1Gbps);150M(1Gbps) |
|
Cat6 |
50M(1Gbps);100M(1Gbps);150M(1Gbps) |
|
|
Cat6e |
50M(1Gbps);100M(100Mbps);150M(100Mbps) |
|
|
Cat7 |
100M(100Mbps) |
|
|
Bracket Height |
SFF |
|
|
Power (min) |
2.484 W |
|
|
Power (max) |
3.024 W |
|
|
System Support |
Windows 7 /8 /8.1 / 10 /11 |
|
|
Windows Server 2008 /2012 /2016 /2019 /2022 |
||
|
RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3 |
||
|
Deepin 15.11 /20 /20.6 |
||
|
Ubuntu 16.04.3 /18.04.5 /20.04.1 |
||
|
SUSE 12.5 |
||
|
FreeBSD 12.2 |
||
|
ZTE New Fulcrum 3.2.2 /5.0.5 |
||
|
Asianux Server v7.0 |
||
|
Galaxy Unicorn v10 SP1 |
||
|
NeoKylin 7.6 |
||
|
Zhongke Fangde desktop operating system 4.0 |
||
|
Zhongke Fangde server operating system |
||
|
Tongxin UOS 20 |
||
|
Emind OS |
||
|
OpenKylin0.7.5 |
||
|
VMware ESXi 6.5 /6.7 /7.0 |
||
|
Mikrotik |
||
|
iKuai router |
||
|
Bus Type |
OCP3.0 SFF |
|
|
Data rate per port |
1Gbps |
|
|
Connector |
2*1G RJ45 |
|
|
Power Supply |
OCP |
|
Technical Features
|
Protocol Support |
IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 |
|
PXE/UEFI |
Yes |
|
DPDK |
Yes |
|
WoL |
Yes |
|
iSCSI |
No |
|
Jumbo Frames |
Yes |
|
FCoE |
No |
|
VMDq、SR-IOV |
Yes |
|
IPsec |
Yes |
|
ESD_Air discharge |
±15KV (Class C) |
|
Jumbo DataFrame Max |
9.2KB |
|
NCSI功能 |
Yes |
|
Scan Chain |
Yes |
|
ESD_Contact discharge |
±8KV(Class A) |
|
ESD_Air discharge |
±15KV(Class C) |
|
Lightning surge test |
±2KV common mode |
ESD test classification
Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.
Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;
Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;
Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.
Environment Features
|
Operating Temperature |
0 ℃ to 55 ℃ (32 ℉ to131 ℉) |
|
Storage Temperature |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
|
Certification |
FCC, CE, RoHS |
Physical Features
|
PCB Size(mm) |
76*115*1.6 |
|
Package Size Size(mm) |
179*150*30 |
|
Weight(g) |
* |
LED Indicators
|
10M |
Connection Status |
Orange Link |
|
Transfer status |
Orange Blink |
|
|
100M |
Connection Status |
Orange Link |
|
Transfer status |
Orange Blink |
|
|
1G |
Connection Status |
Green Link + Orange Link |
|
Transfer status |
Green Link + Orange Blink |
Order Information
|
P/N |
Description |
|
LRES3041PT-OCP |
OCP3.0 Dual-port Gigabit Copper Ethernet Network Adapter |
PS: Above details are only for reference, if there is any change,no prior notice.

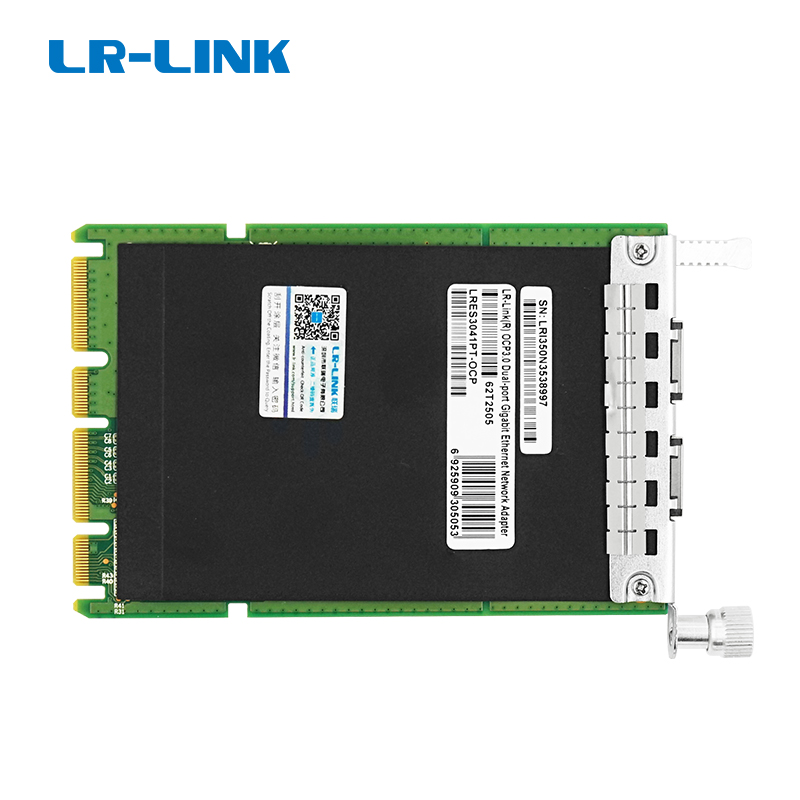

Adaptador de red Ethernet de cobre Gigabit de doble puerto OCP3.0 (Intel I350)
