LRES2003PT

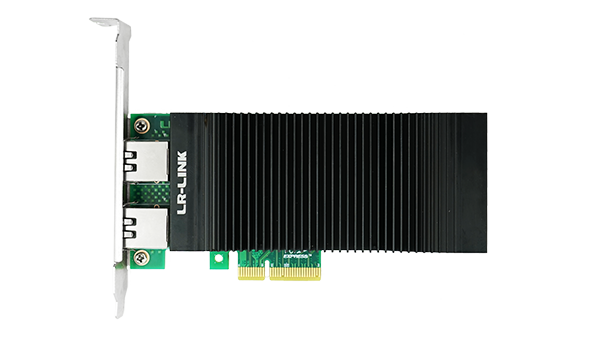

PCIe x4 Dual Port Copper Gigabit Industry Ethernet Adapter (Based on Intel I350)
Características clave
• Dual Port 100/1000Mbps Industry Adapter
• PCI Express (PCIe) v2.1(5.0 GT/s) x4 lanes
• RJ45 Connectivity
• Network Virtualization
• Data Plane Development Kit (DPDK) support
• RJ45 connector with the thickening and sinking of gold
•Larger radiator ensures good heat dissipation.
• PXE boot

Ficha de datos:

  • Descripción general
  • Especificaciones
  • Ordenando
  • descarga de archivos
  • Productos relativos

LRES2003PT is a PCIe v2.1 x4 Gigabit Dual Port Copper Industry Ethernet Adapter based on Intel I350 chipset, and is compatible with PCIe x8 and x16 slot. The adapter is designed mainly used on Machine Vision and Industrial Control, its separate network ports make more convenient to connect industry network cables. The adapter performance has been optimized while being designed to make system I/O no longer the bottleneck of high-end network application. The adapter can be grouped up together through its four ports to expand network bandwidth and ensure network performance. It can also real-time detect automatically and combine the communication route from the faulty port with others to achieve high-performance communications incessantly.

LRES2003PT is developed on the basis of Intel I350 Dual-Port Ethernet MAC+PHY controller, which can allow four ports to work in full-duplex work mode to adapt high-performance network communication in Gigabit Ethernet connection.


Controller

Intel I350

Transmission Rate Per Port

10/100/1000 Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higherup to 100m

100BASE-Tx:Cat5e/6or higherup to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps/s:Yellow Link and Green Ack

100Mbps/s:Green Link and Green Ack

Operating System Support

Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2

WindowsXP / Vista /7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later

Linux SLES 9 / 10 / 11or later

VMwareESX/ESXi4.x/5.x/6.xor later




Model

Description

LRES2003PT

PCI Express x4 Dual Port Copper Gigabit Industry Ethernet Adapter Intel I350 Based (2*RJ45)


PS: The above details is just for reference, if there is any change, no inform will have.
